Product Information

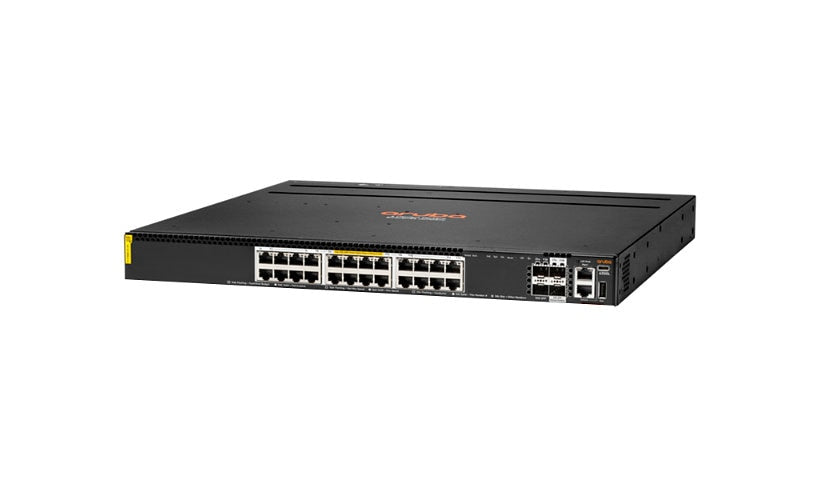

HPE's Aruba Networking CX 6300L (S3L75A) is a stackable switch with 24 Smart Rate ports at 1/2.5/5/10G with Class 6 PoE, two 50G SFP56 ports and two 25G SFP28 uplink/stacking ports. It has an 8 MB packet buffer, two fan trays and hot-plug power with 1+1 redundancy using an optional second supply.
Key Features
- 24 x 1/2.5/5/10G RJ-45 Class 6 PoE ports
- 2 x 50G SFP56 ports
- 2 x 25G SFP28 uplink/stacking ports
- Stack up to 10 units
- 8 MB packet buffer, LRM support
- 2 fan trays included
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba Networking CX
Model: 6300L 24p Smart Rate 1G/2.5G/5G/10G Class6 PoE 2p 50G and 2p 25G L2 Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: 10 Gigabit Ethernet
Remote Management: RMON, SNMP 2c, SNMP 3
Stackable: Stackable
Features: 8MB packet buffer, HPE SmartRate, Layer 2 switching, LRM optics support, PoE Class 6
Max Units In A Stack: 10
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 1/2.5/5/10GBase-T (PoE++)
Ports (2nd) Quantity: 2
Ports Type (2nd): 50 Gigabit Ethernet SFP56
Ports (3rd) Quantity: 2
Interface Provided: 1 x console RJ-45, 1 x management RJ-45, 1 x USB Type A host, 2 x 25Gbit LAN SFP28 uplink/stacking, 2 x 50Gbit LAN SFP56, 24 x 1/2.5/5/10GBase-T (PoE++) RJ-45 PoE Class 6
Power Over Ethernet (PoE): PoE++
QSFP Slots: 25 Gigabit SFP28 (uplink)
Power
Device Type: Internal power supply
Power Supplies Supported: 2
Redundant Power Supply Supported: 1+1 (with optional power supply)
Redundant Power Supply: Optional
Hot-Plug: Hot-plug
Memory and Processor
Processor Brand: ARM
Processor Number: Cortex-A72
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 8 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 GB
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 15.2 inch
Included Items
Included Accessories: 2 fan trays
Warranty
Service Activation: No
