Product Information

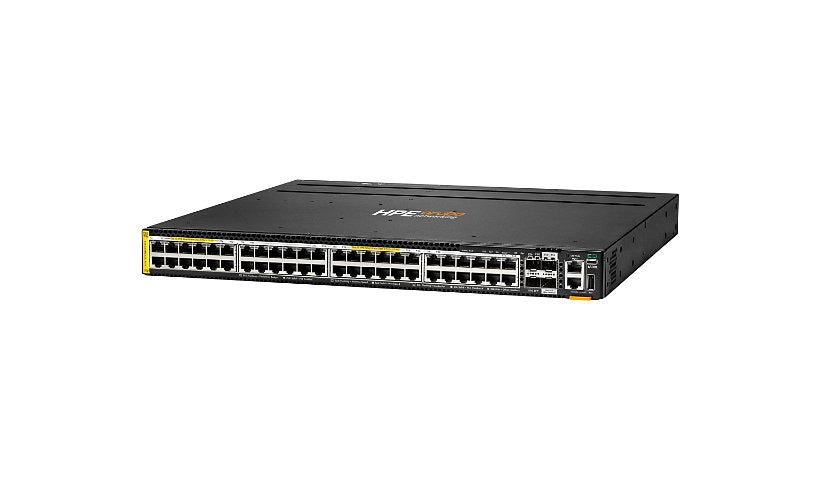

The HPE Aruba Networking CX 6300L (S3L77A) is a stackable switch with 48 Smart Rate ports at 1/2.5/5G delivering Class 8 or Class 6 PoE, two 50G SFP56 ports and two 1/10G SFP+ ports for uplinks or stacking. It supports LRM optics and stacks up to 10 units, with an optional second power supply.
Key Features
- 48 x 1/2.5/5G RJ-45 PoE++ ports (Class 8/6)
- 2 x 50G SFP56 ports
- 2 x 1/10G SFP+ (uplink or stacking)
- Stacks up to 10 units
- 8 GB RAM, 32 GB flash, 8 MB buffer
- Hot-plug power, redundant optional
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba Networking CX
Model: 6300L 48p Smart Rate 1G/2.5G/5G Class8/6 PoE 2p 50G and 2p 10G LRM L2 Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: 5 Gigabit Ethernet
Remote Management: RMON, SNMP 2c, SNMP 3
Stackable: Stackable
Features: 8MB packet buffer, HPE SmartRate, Layer 2 switching, LRM optics support, PoE Class 6, PoE Class 8
Max Units In A Stack: 10
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 1/2.5/5GBase-T (PoE++)
Ports (2nd) Quantity: 2
Ports Type (2nd): 50 Gigabit Ethernet SFP56
Ports (3rd) Quantity: 2
Interface Provided: 1 x console RJ-45, 1 x management RJ-45, 1 x USB Type A host, 2 x 1/10Gbit LAN SFP+ uplink/stacking, 2 x 50Gbit LAN SFP56, 48 x 1/2.5G/5G (PoE++) RJ-45 PoE Class 8
Power Over Ethernet (PoE): PoE++
QSFP Slots: 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking)
Power
Device Type: Internal power supply
Power Supplies Supported: 2
Redundant Power Supply Supported: 1+1 (with optional power supply)
Redundant Power Supply: Optional
Hot-Plug: Hot-plug
Memory and Processor
Processor Brand: ARM
Processor Number: Cortex-A72
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 8 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 GB
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 15.2 inch
Certifications and Listing
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
