Product Information

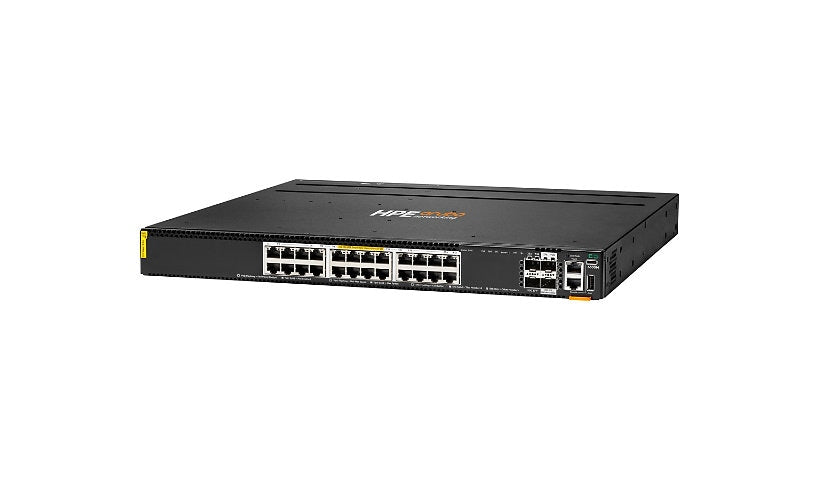

HPE's Aruba Networking CX 6300M (R8S89A) is a stackable Layer 3 switch with 24 Smart Rate ports at 1/2.5/5/10G with Class 6 PoE, two 50G SFP56 ports and two 25G SFP56 ports. It offers 880 Gbps of switching capacity and 200 Gbps of VSF stacking bandwidth, and a 2-post rack kit is included.
Key Features
- 24 x 100M/1G/2.5G/5G/10G RJ-45 Class 6 PoE ports
- 2 x 10/25/50G SFP56 uplink/stacking ports
- 2 x 10/25G SFP56 ports
- 880 Gbps switching, 654 Mpps
- VSF stacking, 200 Gbps
- 8 GB RAM, 32 GB flash
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba Networking CX
Model: 6300M 24p Smart Rate 1G/2.5G/5G/10G Class6 PoE 2p 50G 2p 25G Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, RMON, SFTP, SNMP, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Routing Protocol: BGP, BGP-4, Bidirectional Forwarding Detection (BFD), ECMP, GRE, IGMP, IGMPv2, IGMPv3, MLD, MSDP, MSTP, OSPF, OSPFv2, OSPFv3, PIM-DM, PIM-SM, Policy-based routing (PBR), RSTP, STP, VRRP
Authentication Method: RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Performance: Latency (1 Gbps): 4.24 µs, Latency (10 Gbps): 1.5 µs, Latency (25 Gbps): 2.91 µs, Latency (50 Gbps): 3.49 µs, Stacking bandwidth: 200 Gbps, Switching capacity: 880 Gbps, Throughput: 654 Mpps
Capacity: IGMP groups: 8192, IPv4 ACL entries (egress): 8192, IPv4 ACL entries (ingress): 20480, IPv4 host table capacity: 49152, IPv4 routes (Multicast): 8192, IPv4 routes (Unicast): 61000, IPv6 ACL entries (egress): 2048, IPv6 ACL entries (ingress): 5120, IPv6 host table capacity: 49152, IPv6 routes (Multicast): 8192, IPv6 routes (Unicast): 61000, MAC ACL entries (egress): 8192, MAC ACL entries (ingress): 20480, MLD groups: 8192, Switched virtual interfaces (SVIs): 1024
MAC Address Table Size: 32768 entries
Jumbo Frame Support: 9198 bytes
Stackable: Stackable
Features: Access Control List (ACL) support, Aruba Virtual Switching Framework (VSF), Auto-uplink (auto MDI/MDI-X), Bootstrap Router (BSR) Mechanism, Bridge protocol data unit (BPDU), Broadcast storm protection, Class of Service (CoS), Deficit Weighted Round Robin (DWRR), DHCP protection, Dual firmware images, Dynamic IPv6 lockdown, Fan tray, High Availability, IP multicast, IPv4 and IPv6 dual stack, IPv6 support, LLDP support, Management Information Base (MIB), Microsoft Network Load Balancer (NLB), Multicast Storm Protection, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), ND snooping, Network Timing Protocol (NTP), Packet storm protection, Per-VLAN Spanning Tree (PVST), Protocol Independent Multicast (PIM), Quality of Service (QoS), RA guard, Rapid Reconfiguration of Spanning Tree (RSTP), Rapid Spanning Tree Protocol (RSTP) support, sFlow, Spanning Tree Protocol (STP) support, Syslog support, Type of Service (ToS), Unicast Storm protection, Virtual Extensible LAN (VXLAN), VLAN support, VLAN Tagging, Zero-touch provisioning (ZTP)
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 100/1000/2.5G/5G/10GBase-T (4PPoE)
Ports (2nd) Quantity: 2
Ports Type (2nd): 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)
Ports (3rd) Quantity: 2
Interface Provided: 1 x console RJ-45, 1 x USB Type A host, 1 x USB-C console, 2 x 10Gbit/25Gbit SFP56, 2 x 10Gbit/25Gbit/50Gbit SFP56, 24 x 10/100/1000 Base-T RJ-45
Power Over Ethernet (PoE): 4PPoE
QSFP Slots: 10 Gigabit / 25 Gigabit SFP56
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: ARM
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 8 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 15 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 15 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 15.2 inch
Weight: 11.6 lbs
Included Items
Included Accessories: Rack kit (2 post)
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
