Product Information

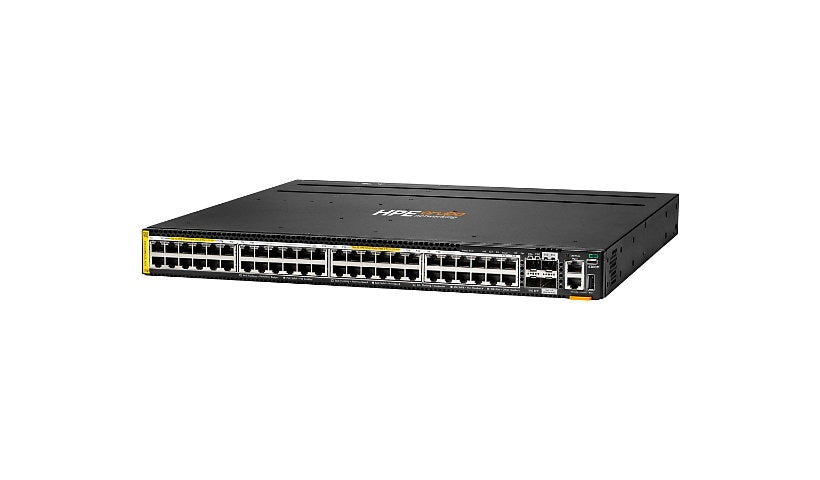

The HPE Aruba CX 6300M (R8S91A) is a stackable Layer 3 switch with 48 Smart Rate ports at 100M to 5G with PoE++, plus SFP56 ports at up to 50G for uplinks or stacking and 1/10G SFP+ ports. It offers 496 Gbps of switching capacity and 200 Gbps of stacking bandwidth.
Key Features
- 48 x 100M/1G/2.5G/5G RJ-45 PoE++ ports
- 2 x 10/25/50G SFP56 (uplink or stacking)
- 2 x 1/10G SFP+ ports
- 496 Gbps switching, 369 Mpps
- Layer 3, VSF stacking at 200 Gbps
- 8 GB RAM, 32 GB flash
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: 6300M
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, RMON, SFTP, SNMP, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Routing Protocol: BGP, BGP-4, Bidirectional Forwarding Detection (BFD), ECMP, GRE, IGMP, IGMPv2, IGMPv3, MLD, MSDP, MSTP, OSPF, OSPFv2, OSPFv3, PIM-DM, PIM-SM, Policy-based routing (PBR), RSTP, STP, VRRP
Authentication Method: RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Encryption: FIPS 140-2
Performance: Latency (1 Gbps): 2.28 µs, Latency (10 Gbps): 1.46 µs, Latency (25 Gbps): 1.9 µs, Latency (50 Gbps): 3.49 µs, Stacking bandwidth: 200 Gbps, Switching capacity: 496 Gbps, Throughput: 369 Mpps
Capacity: IGMP groups: 8192, IPv4 ACL entries (egress): 8192, IPv4 ACL entries (ingress): 20480, IPv4 host table capacity: 49152, IPv4 routes (Multicast): 8192, IPv4 routes (Unicast): 61000, IPv6 ACL entries (egress): 2048, IPv6 ACL entries (ingress): 5120, IPv6 host table capacity: 49152, IPv6 routes (Multicast): 8192, IPv6 routes (Unicast): 61000, MAC ACL entries (egress): 8192, MAC ACL entries (ingress): 20480, MLD groups: 8192, Switched virtual interfaces (SVIs): 1024
MAC Address Table Size: 32768 entries
Jumbo Frame Support: 9198 bytes
Stackable: Stackable
Features: Access Control List (ACL) support, Aruba Virtual Switching Framework (VSF), Auto-uplink (auto MDI/MDI-X), Bootstrap Router (BSR) Mechanism, Bridge protocol data unit (BPDU), Broadcast storm protection, Class of Service (CoS), Deficit Weighted Round Robin (DWRR), DHCP protection, Dual firmware images, Dynamic IPv6 lockdown, Fan tray, High Availability, IP multicast, IPv4 and IPv6 dual stack, IPv6 support, LLDP support, Management Information Base (MIB), Microsoft Network Load Balancer (NLB), Multicast Storm Protection, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), ND snooping, Network Timing Protocol (NTP), Packet storm protection, Per-VLAN Spanning Tree (PVST), Protocol Independent Multicast (PIM), Quality of Service (QoS), RA guard, Rapid Reconfiguration of Spanning Tree (RSTP), Rapid Spanning Tree Protocol (RSTP) support, sFlow, Spanning Tree Protocol (STP) support, Syslog support, Type of Service (ToS), Unicast Storm protection, Virtual Extensible LAN (VXLAN), VLAN support, VLAN Tagging, Zero-touch provisioning (ZTP)
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 100/1000/2.5G/5G (PoE++)
Ports (2nd) Quantity: 2
Ports Type (2nd): 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)
Ports (3rd) Quantity: 2
Interface Provided: 1 x management, 1 x USB Type A, 1 x USB-C, 4 x 1Gbit/10Gbit/25Gbit/50Gbit SFP56, 48 x 10/100/1000 Base-T RJ-45
Power Over Ethernet (PoE): PoE++
QSFP Slots: 1 Gigabit / 10 Gigabit SFP+
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: ARM
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 8 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 15 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 15 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 15.2 inch
Weight: 12.06 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3bt
Compliant Standards: CAN/CSA C22.2 No. 60950-1-07, CISPR 32:2015+COR1:2016, CISPR 35:2016 Class A, CNS 14336-1, EN 55032:2015+AC:2016 Class A, EN 55035:2017, EN 60825-1:2007, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, EN 61000-3-2, EN 61000-3-2:2014, EN 61000-3-3, EN 61000-3-3:2013, EN 62368-1:2014+A11:2017, FCC CFR47 Part 15 B Class A, ICES-003 Class A, IEC 60825-1:2007 Class 1, IEC 60950-1:2005, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1: 2014, UL 60950-1 Second Edition, VCCI Class A
ENERGY STAR Certified: No
