Product Information

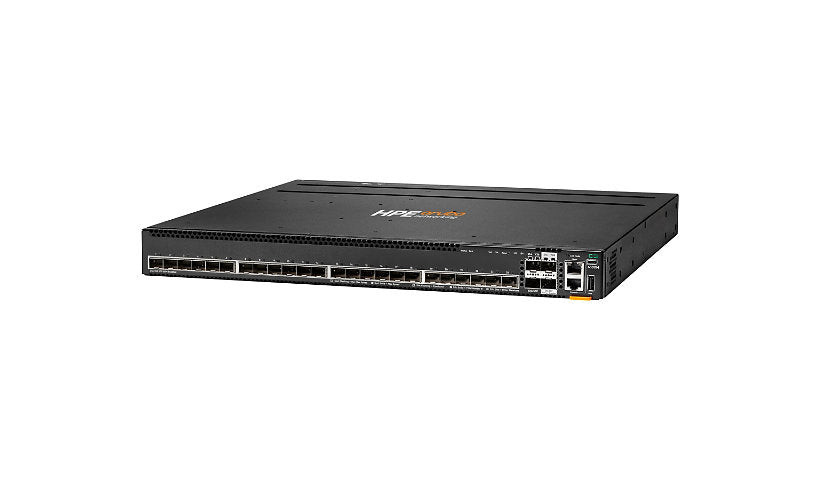

The HPE Aruba CX 6300M (R8S92A) is a stackable Layer 3 switch with 24 SFP+ ports at 1/10G (LRM and MACsec capable), two SFP56 ports at up to 50G and two 10/25G SFP ports with MACsec. It offers 880 Gbps of switching capacity, a 16 MB buffer and 200 Gbps of stacking bandwidth. A fan tray is included.
Key Features
- 24 x 1/10G SFP+ ports with MACsec
- 2 x 1/10/25/50G SFP56 (uplink or stacking)
- 2 x 10/25G SFP ports with MACsec
- 880 Gbps switching, 16 MB buffer
- Layer 3, VSF stacking at 200 Gbps
- 8 GB RAM, 32 GB flash
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: 6300M 24p SFP+ LRM support and 2p 50G and 2p 25G MACsec Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTPS, RMON, SFTP, SNMP, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Routing Protocol: BGP, BGP-4, Bidirectional Forwarding Detection (BFD), ECMP, EGP, GRE, IGMP, IGMPv2, IGMPv3, MLD, MSDP, MSTP, OSPF, OSPFv2, OSPFv3, PIM-SM, Policy-based routing (PBR), RSTP, Static IPv6 routing, STP, VRRP
Authentication Method: RADIUS, Secure Shell (SSH), TACACS+
Performance: Latency (1 Gbps): 4.24 µs, Latency (10 Gbps): 1.5 µs, Latency (25 Gbps): 2.91 µs, Latency (50 Gbps): 3.49 µs, Stacking bandwidth: 200 Gbps, Switching capacity: 880 Gbps, Throughput: 660 Gbps
Capacity: IGMP groups: 8192, IPv4 ACL entries (egress): 8192, IPv4 ACL entries (ingress): 20480, IPv4 host table capacity: 49152, IPv4 routes (Multicast): 8192, IPv4 routes (Unicast): 61000, IPv6 ACL entries (egress): 2048, IPv6 ACL entries (ingress): 5120, IPv6 host table capacity: 49152, IPv6 routes (Multicast): 8192, IPv6 routes (Unicast): 61000, MAC ACL entries (egress): 8192, MAC ACL entries (ingress): 20480, MLD groups: 8192, Switched virtual interfaces (SVIs): 1024
MAC Address Table Size: 32768 entries
Jumbo Frame Support: 9198 bytes
Stackable: Stackable
Features: 16MB packet buffer, Access Control List (ACL) support, ARP support, Aruba Virtual Switching Framework (VSF), Auto-uplink (auto MDI/MDI-X), Bridge protocol data unit (BPDU), Broadcast storm protection, Class of Service (CoS), Deficit Weighted Round Robin (DWRR), DHCP protection, DHCP support, Dual firmware images, Dynamic IPv6 lockdown, Fan tray, High Availability, IGMP snooping, IP multicast, IPv4 and IPv6 dual stack, IPv6 support, Jumbo Frames support, LLDP support, LRM optics support, Management Information Base (MIB), Microsoft Network Load Balancer (NLB), MLD snooping, Multicast Storm Protection, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), ND snooping, Network Timing Protocol (NTP), Packet storm protection, Per-VLAN Spanning Tree (PVST), Protocol Independent Multicast (PIM), Quality of Service (QoS), RA guard, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Reconfiguration of Spanning Tree (RSTP), Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, Strict Priority (SP), Syslog support, Type of Service (ToS), Uni-Directional Link Detection (UDLD), Unicast Storm protection, Virtual Extensible LAN (VXLAN), VLAN support, VLAN Tagging, Zero-touch provisioning (ZTP)
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 1 Gigabit / 10 Gigabit SFP+
Ports (2nd) Quantity: 2
Ports Type (2nd): 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)
Ports (3rd) Quantity: 2
Interface Provided: 1 x console, 1 x management, 1 x USB Type A, 1 x USB-C console, 2 x 10/25Gbit LAN SFP with MACsec, 2 x 1Gbit/10Gbit/25Gbit/50Gbit SFP, 24 x Gigabit / 10Gbit LAN SFP+ with MACsec
QSFP Slots: 1 Gigabit / 10 Gigabit / 25 Gigabit SFP
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: ARM
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 8 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 15 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 15 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front and side to back
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 15.2 inch
Weight: 12.06 lbs
Included Items
Included Accessories: Fan tray
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3ae
Warranty
Service Activation: No
