Product Information

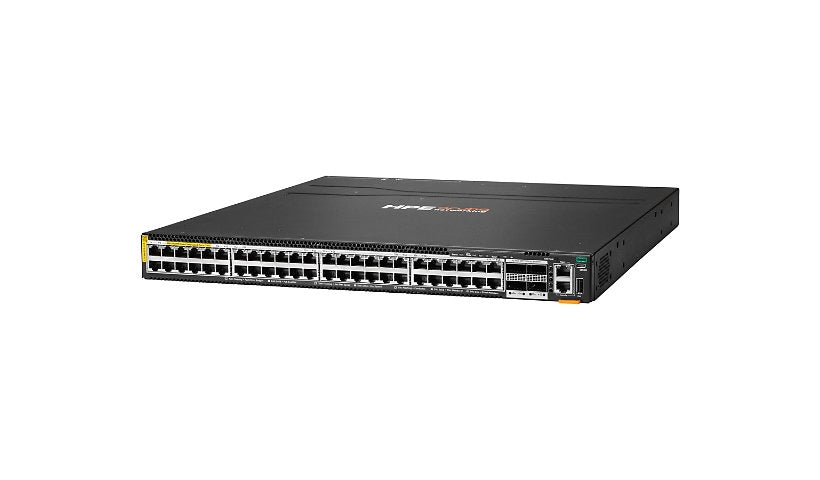

HPE's Aruba Networking CX 6300M (S0E91A) is a stackable Layer 3 switch with 48 Smart Rate ports at 100M up to 10G, each with Class 8 PoE up to 90 W, plus four 100G QSFP28 uplinks. It supports PTP, AVB and MACsec, a 2640 W PoE budget and 1760 Gbps of switching capacity. Power supplies are not installed.
Key Features
- 48 x 100M/1G/2.5G/5G/10G RJ-45 Class 8 PoE ports, 90 W
- 4 x 10/25/40/100G QSFP28 uplinks
- 2640 W PoE budget
- 1760 Gbps, stack up to 10
- PTP, AVB, MACsec
- Power supplies not installed
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba Networking CX
Model: 6300M 48p SR10 1G/2.5G/5G/10G PTP/AVB Class8 PoE 4p 100G MACsec Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black, Silver
Network and Communication
Advanced Switching: Layer 3
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, SNMP, SNMP 2c, SNMP 3, SSH, TFTP
Routing Protocol: BGP, BGP-4, Bidirectional Forwarding Detection (BFD), ECMP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MSDP, MSTP, OSPF, OSPFv2, OSPFv3, PIM-DM, PIM-SM, Policy-based routing (PBR), RIP-2, RSTP
Authentication Method: RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Encryption: FIPS 140-2
Performance: Stacking bandwidth: 400 Gbps, Switching capacity: 1760 Gbps, Throughput: 1310 Mpps
Capacity: IGMP groups: 4096, IPv4 ACL entries (egress): 8192, IPv4 ACL entries (ingress): 20480, IPv4 host table capacity: 49152, IPv4 routes (Multicast): 8192, IPv4 routes (Unicast): 61000, IPv6 ACL entries (egress): 2048, IPv6 ACL entries (ingress): 5120, IPv6 host table capacity: 49152, IPv6 routes (Multicast): 8192, IPv6 routes (Unicast): 61000, MAC ACL entries (egress): 8192, MAC ACL entries (ingress): 20480, MLD groups: 8192, Switched virtual interfaces (SVIs) (dual stack): 1024
MAC Address Table Size: 32768 entries
Jumbo Frame Support: 9198 bytes
Stackable: Stackable
Operating System Required: AOS-CX
Features: Access Control List (ACL) support, Aruba Virtual Switching Framework (VSF), Auto-uplink (auto MDI/MDI-X), Bootstrap Router (BSR) Mechanism, Bridge protocol data unit (BPDU), Broadcast storm protection, Class of Service (CoS), Deficit Weighted Round Robin (DWRR), DHCP protection, Dynamic IPv6 lockdown, Fan tray, HPE SmartRate, IP multicast, IPv4 and IPv6 dual stack, IPv6 support, Layer 2 switching, Management Information Base (MIB), Microsoft Network Load Balancer (NLB), Multicast Storm Protection, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), ND snooping, Network Timing Protocol (NTP), Packet storm protection, Per-VLAN Spanning Tree Plus (PVST+), PoE Class 8, Protocol Independent Multicast (PIM), Quality of Service (QoS), RA guard, Rapid Reconfiguration of Spanning Tree (RSTP), Rapid Spanning Tree Protocol (RSTP) support, sFlow, Spanning Tree Protocol (STP) support, Syslog support, Type of Service (ToS), Virtual Extensible LAN (VXLAN), VLAN support
Max Units In A Stack: 10
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 100/1000/2.5G/5G/10GBase-T (PoE++)
Ports (2nd) Quantity: 4
Ports Type (2nd): 10 Gigabit / 25 Gigabit / 40 Gigabit / 100 Gigabit QSFP28 (uplink)
Interface Provided: 1 x console RJ-45, 1 x management RJ-45 out-of-band network management, 1 x USB Type A host, 1 x USB-C console, 4 x 10/25/40/100Gbit LAN QSFP/QSFP28 uplink, 48 x 100/1000/2.5G/5G/10GBase-T (PoE++) RJ-45 PoE Class 8 - 90 W
Power Over Ethernet (PoE): PoE++
Power
Device Type: Internal power supply
PoE Budget: 2640 watt
Power Supplies Installed: 0
Power Supplies Supported: 2
Redundant Power Supply Supported: 1+1 (with optional power supply)
Redundant Power Supply: Optional
Hot-Plug: Hot-plug
Memory and Processor
Processor Brand: ARM
Processor Number: Cortex-A72
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 8 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front and side to back
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 18.6 inch
Weight: 17.09 lbs
Included Items
Included Accessories: 2-Post Rack Kit, 3 x field-replacable hot-swappable fan trays
Certifications and Listing
Compliant Standards: IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
