Product Information

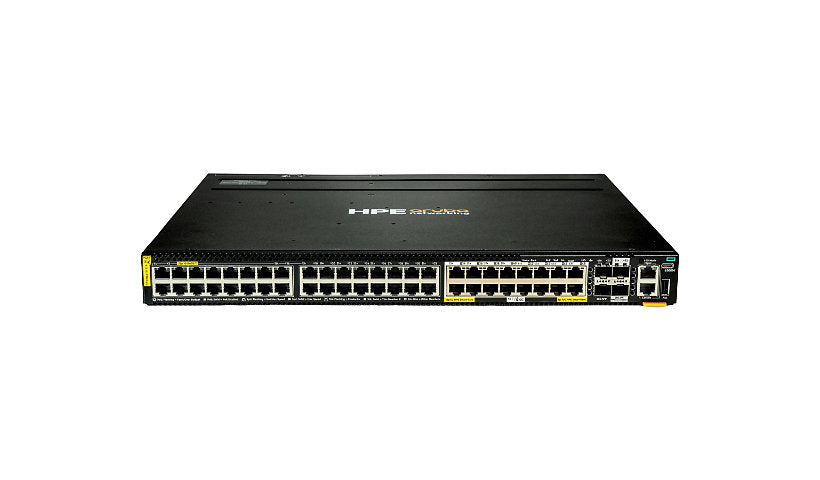

HPE's Aruba Networking CX 6300M (S4P41A) is a stackable Layer 3 switch with 32 Gigabit PoE ports and 16 Smart Rate 1/2.5/5G ports with Class 8 PoE at up to 90 W, plus two 50G SFP56 and two 25G SFP28 ports. It supports a 2880 W PoE budget, MACsec, EVPN and PTP, and stacks up to 10 units.
Key Features
- 32 x 10/100/1000 RJ-45 PoE ports
- 16 x 1/2.5/5G Smart Rate Class 8 PoE ports, 90 W
- 2 x 10/25/50G SFP56 and 2 x 25G SFP28 ports
- 2880 W PoE budget
- MACsec, EVPN, PTP
- Stack up to 10 units, 2 fan trays included
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE Aruba Networking CX
Model: 6300M 32p 1G 16p Smart Rate 5G Class8 PoE 2p SFP56 50G 2p SFP28 25G MACsec Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black, Silver
Network and Communication
Advanced Switching: Layer 3
Switching Type: 5 Gigabit Ethernet / Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, RMON, SNMP, SNMP 2c, SNMP 3
Routing Protocol: BGP, BGP-4, ECMP, IGMP, MP-BGP, OSPF, OSPFv2, PIM-SM, VRF, VXLAN
Authentication Method: RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Performance: Switching capacity: 524 Gbps
Jumbo Frame Support: 9198 bytes
Stackable: Stackable
Features: Ethernet Ring Protection Switching (ERPS), Ethernet Virtual Private Network (EVPN), HPE SmartRate, PoE Class 8, Precision Time Protocol (PTP), Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVST+), Top-of-Rack (ToR), Unsupported Transceiver Mode (UTM), Virtual Stacking Framework (VSF)
Max Units In A Stack: 10
Connectivity
Ports: 32
Port Quantity: 32
Port Type: 10/100/1000 (PoE++)
Ports (2nd) Quantity: 16
Ports Type (2nd): 1/2.5/5GBase-T (PoE++)
Ports (3rd) Quantity: 2
Ports (4th) Quantity: 2
Ports (4th) Type: 25 Gigabit SFP28
Interface Provided: 1 x console RJ-45, 1 x management RJ-45 out-of-band network management, 1 x USB Type A AUX, 1 x USB-C console, 16 x 1/2.5G/5G (PoE++) RJ-45 PoE Class 8 - 90 W, 2 x 10/25/50Gbit LAN SFP+/SFP28/SFP56 uplink/stacking, 2 x 10/25Gbit LAN SFP28/SFP+ MACsec enabled, 32 x 10/100/1000 Base-T (PoE++) RJ-45 PoE Class 8 - 90 W
Power Over Ethernet (PoE): PoE++
QSFP Slots: 50 Gigabit Ethernet SFP56
Power
Device Type: Internal power supply
PoE Budget: 2880 watt
Memory and Processor
Processor Brand: ARM
Processor Number: Cortex-A72
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 8 GB
Memory Technology: DDR4 SDRAM
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 15.2 inch
Included Items
Included Accessories: 2 fan trays
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
