Product Information

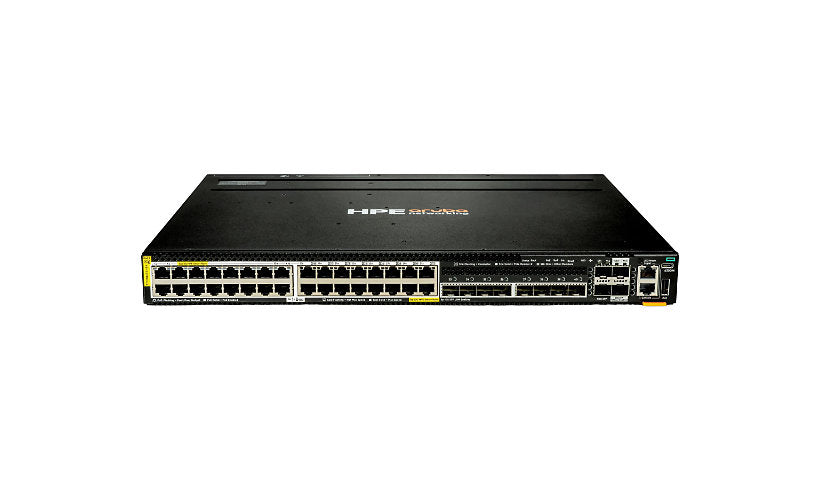

The HPE Aruba Networking CX 6300M (S4P42A) is a stackable Layer 3 switch with 32 Smart Rate ports at 1/2.5/5G delivering Class 8 PoE, eight 10G SFP+ ports, two 50G SFP56 ports and two 25G SFP28 ports with MACsec. It supports up to 2,880 W of PoE, EVPN, PTP and ERPS, and stacks up to 10 units.
Key Features
- 32 x 1/2.5/5G RJ-45 PoE ports (Class 8)
- 8 x 10G SFP+ ports (LRM support)
- 2 x 50G SFP56 and 2 x 25G SFP28 (MACsec)
- Up to 2,880 W PoE
- Layer 3, EVPN, PTP, ERPS
- Stacks up to 10 units, 780 Gbps
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba Networking CX
Model: 6300M 32p Smart Rate 5G CL8 8p SFP+ 10G LRM 2p SFP56 50G 2p SFP28 25G MACsec Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black, Silver
Network and Communication
Advanced Switching: Layer 3
Switching Type: 5 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, RMON, SNMP, SNMP 2c, SNMP 3
Routing Protocol: BGP, BGP-4, ECMP, IGMP, MP-BGP, OSPF, OSPFv2, PIM-SM, VRF, VXLAN
Authentication Method: RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Performance: Switching capacity: 780 Gbps
Jumbo Frame Support: 9198 bytes
Stackable: Stackable
Features: Ethernet Ring Protection Switching (ERPS), Ethernet Virtual Private Network (EVPN), HPE SmartRate, LRM optics support, PoE Class 8, Precision Time Protocol (PTP), Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Top-of-Rack (ToR), Unsupported Transceiver Mode (UTM), Virtual Stacking Framework (VSF)
Max Units In A Stack: 10
Connectivity
Ports: 32
Port Quantity: 32
Port Type: 1/2.5/5GBase-T (PoE++)
Ports (2nd) Quantity: 8
Ports Type (2nd): 10 Gigabit SFP+
Ports (3rd) Quantity: 2
Ports (4th) Quantity: 2
Ports (4th) Type: 25 Gigabit SFP28
Interface Provided: 1 x console RJ-45, 1 x management RJ-45 out-of-band network management, 1 x USB Type A AUX, 1 x USB-C console, 2 x 25Gbit LAN SFP28 MACsec enabled, 2 x 50Gbit LAN SFP56 uplink/stacking, 32 x 1/2.5G/5G (PoE++) RJ-45 PoE Class 8 - 90 W, 8 x 1/10Gbit LAN SFP+ LRM + MACsec
Power Over Ethernet (PoE): PoE++
QSFP Slots: 50 Gigabit Ethernet SFP56
Power
Device Type: Internal power supply
PoE Budget: 2880 watt
Power Supplies Supported: 2
Redundant Power Supply Supported: N+1 (with optional power supply), N+N (with optional power supply)
Redundant Power Supply: Optional
Hot-Plug: Hot-plug
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 15.2 inch
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
