Product Information

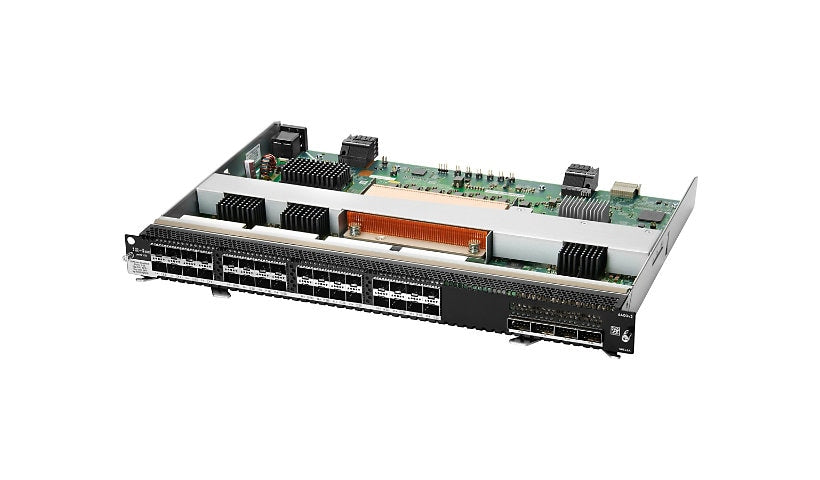

HPE's S0E48A is a v2 extended tables line module for the Aruba Networking CX 6400 chassis, with 32 25G SFP28 ports and four 100G QSFP28 uplinks, all MACsec capable. It installs in a CX 6400 chassis and is not a standalone switch.
Key Features
- 32 x 25G SFP28 ports
- 4 x 100G QSFP28 uplinks
- MACsec, VSX, VXLAN, VRF
- v2 extended tables
- For Aruba CX 6400 chassis
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba Networking CX
Model: 6400 32p 25G SFP28 4p 100G QSFP28 MACsec v2 Extended Tables Module
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: 25 Gigabit Ethernet
Manageable: Yes
Remote Management: RMON, SNMP 2c, SNMP 3
Routing Protocol: BGP, MPLS, OSPF, VRF
Performance: Switching capacity: 28 Tbps
Operating System Required: AOS-CX
Features: Aruba Virtual Switching Extension (VSX), Virtual Extensible LAN (VXLAN), Virtual Routing and Forwarding (VRF)
Connectivity
Ports: 32
Port Quantity: 32
Port Type: 25 Gigabit SFP28
Ports (2nd) Quantity: 4
Ports Type (2nd): 100 Gigabit QSFP28 (uplink)
Interface Provided: 32 x 25Gbit LAN SFP28, 4 x 100Gbit LAN QSFP28 uplink
Power
Device Type: Internal power supply (not installed)
Required Voltage: AC 100-127/200-240 volt
Memory and Processor
Processor Brand: ARM
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 16 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 GB
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 12.4 inch
Weight: 9.7 lbs
Certifications and Listing
Compliant Standards: IEEE 802.3af, IEEE 802.3at
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
