Product Information

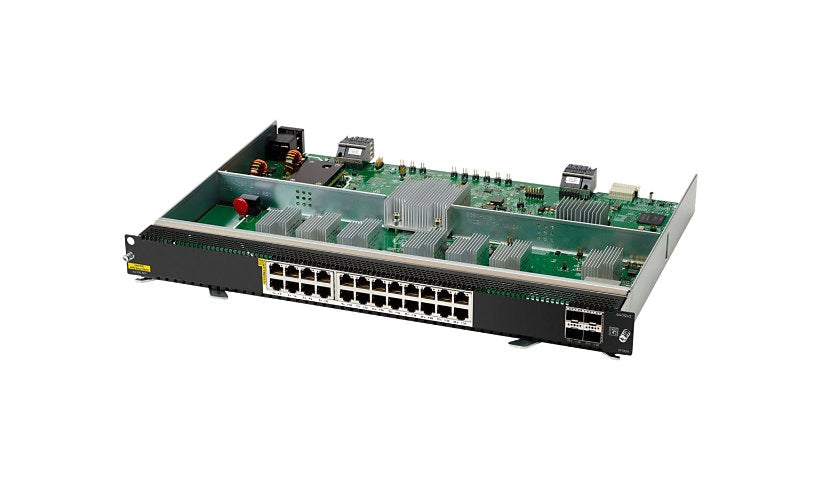

The HPE Aruba Networking CX 6400 S1T83A is a line module for the CX 6400 modular switch chassis, not a server network adapter. It has twenty four 1/2.5/5/10GBase-T Smart Rate RJ-45 ports with PoE Class 8 and four 1/10/25/50G SFP56 ports, running AOS-CX with Layer 3 features, VSX, VXLAN and VRF. It has an ARM processor, 16 GB of DDR4 RAM and 32 GB of flash. This is the v2 module.
Key Features
- Switch module, not a NIC
- 24 x 10G Smart Rate PoE
- PoE Class 8 power
- 4 x 50G SFP56 ports
- For CX 6400 chassis
- AOS-CX, Layer 3
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba Networking CX
Model: 6400 24p Smart Rate 1G/2.5G/5G/10G Class8 PoE and 4p SFP56 v2 Module
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Remote Management: RMON, SNMP 2c, SNMP 3
Features: Aruba Virtual Switching Extension (VSX), HPE SmartRate, PoE Class 8, Virtual Extensible LAN (VXLAN), Virtual Routing and Forwarding (VRF)
Connectivity
Ports: 28
Port Quantity: 24
Port Type: 1/2.5/5/10GBase-T
Ports (2nd) Quantity: 4
Ports Type (2nd): 50 Gigabit Ethernet SFP56
Interface Provided: 24 x 1/2.5/5/10GBase-T (PoE+) RJ-45 PoE Class 8, 4 x 1Gbit/10Gbit/25Gbit/50Gbit SFP56
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply (not installed)
Required Voltage: AC 100-127/200-240 volt
Memory and Processor
Processor Brand: ARM
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 16 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 GB
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 12.4 inch
Weight: 9.7 lbs
Certifications and Listing
Compliant Standards: IEEE 802.3af, IEEE 802.3at
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
