Product Information

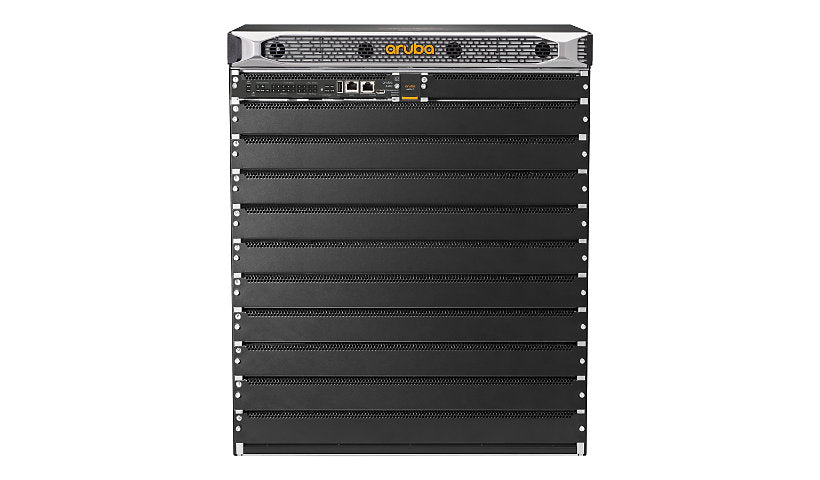

The HPE Aruba CX 6410 v2 R0X27C is a Layer 3 modular switch chassis running AOS-CX for campus networks, with PoE+ support through its line modules. It includes a 2-post rack kit and supports N+1 power redundancy. Power supplies and line modules are not installed.
Key Features
- CX 6410 v2 modular chassis
- Layer 3, AOS-CX
- PoE+ capable
- N+1 redundant power (optional PSU)
- Power supplies not installed
- 2-post rack kit included
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: 6410 v2
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black, Silver
Network and Communication
Advanced Switching: Layer 3
Manageable: Yes
Authentication Method: RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Stackable: Stackable
Connectivity
Interface Provided: 1 x console RJ-45, 1 x management RJ-45, 1 x USB Type A, 1 x USB-C console
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply (not installed)
Power Supplies Supported: 4
Redundant Power Supply Supported: N+1 (with optional power supply)
Redundant Power Supply: Optional
Memory and Processor
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 16 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 GB
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 12
Rack Mounting Kit: Included
Installed Devices/Modules: 2
Dimensions and Weight
Height: 20.8 inch
Width: 17.4 inch
Depth: 17.7 inch
Weight: 117.95 lbs
Included Items
Included Accessories: Rack mounting kit (2 post)
Certifications and Listing
Compliant Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Compliant Standards: CISPR 22 Class A, CISPR 32:2012 Class A, CISPR 35, CSA 60950-1 Second Edition, EN 50581:2012, EN 55022 Class A, EN 55024:2010 + A1:2001 + A2:2003, EN 55032:2012 Class A, EN 55035, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 62368-1:2014, FCC CFR47 Part 15, FCC Class A certified, ICES-003 Class A, IEC 60825-1:2007, IEC 60950-1:2005 Second Edition, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-8, RoHS, UL 62368-1 Second Edition, VCCI Class A, WEEE
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
