Product Information

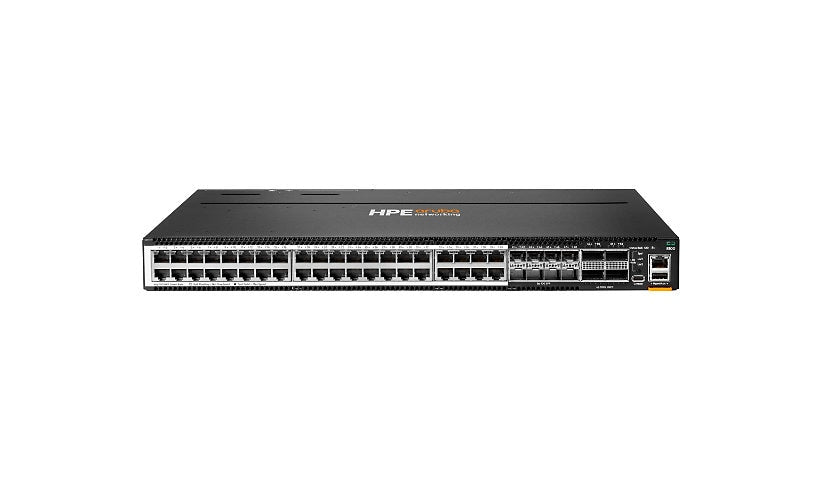

HPE's Aruba Networking CX 8100 (R9W92A) is a Layer 3 campus core and aggregation switch with 40 multi-gigabit RJ-45 ports up to 10G, SFP+ ports and four 40/100G QSFP28 ports. It offers 1.76 Tbps of switching capacity and VSX, with a 2-post rack kit, three fan trays and front to back airflow.
Key Features
- 40 x 100M/1G/2.5G/5G/10G RJ-45 ports
- 1/10G SFP+ ports
- 4 x 40/100G QSFP28/QSFP+ ports
- 1.76 Tbps switching capacity
- VSX, BGP, VXLAN
- 3 fan trays, front to back airflow
Product Information
Brand: Aruba
Manufacturer: Aruba Data Center Switches
Product Line: HPE Aruba Networking CX
Model: 8100 40x10GBase-T 8x10G SFP+ 4x40/100G QSFP28 Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Country: United States
Localization: English
Network and Communication
Advanced Switching: Layer 3
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Remote Management: MIB, SNMP, SNMP 2, SNMP 3
Routing Protocol: BGP-4, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, RIP-2
Authentication Method: RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Performance: Switching capacity: 1.76 Tbps
Capacity: IGMP groups: 4000, IPv4 ACL entries (egress): 2048, IPv4 ACL entries (ingress): 16384, IPv4 routes (Multicast): 4096, IPv4 routes (Unicast): 24576, IPv6 ACL entries (egress): 512, IPv6 ACL entries (ingress): 4096, IPv6 routes (Multicast): 4096, IPv6 routes (Unicast): 12288, Link aggregation groups: 54, MAC ACL entries (egress): 2048, MAC ACL entries (ingress): 16384, Maximum number of VLANs: 1024, MLD groups: 4000, Packet buffer size: 32 MB
MAC Address Table Size: 147456 entries
Jumbo Frame Support: 9000 bytes
Features: Address Resolution Protocol, Aruba Virtual Switching Extension (VSX), Bidirectional Forwarding Detection (BFD), Border Gateway Protocol 4 (BGP-4), Bridge protocol data unit (BPDU), Data Center Bridging (DCB), Dynamic VXLAN with BGP-EVPN, Equal-Cost Multipath (ECMP), Ethernet Ring Protection Switching (ERPS), Generic Routing Encapsulation (GRE), Layer 2 switching, Layer 3 routing, Network Timing Protocol (NTP), Open Shortest Path First (OSPF), Policy based routing, Port mirroring, Quality of Service (QoS), Rapid PVST+ (RPVST+), RDMA over Converged Ethernet (RoCE), RDMA over Converged Ethernet (RoCE) v2, sFlow, Unidirectional Link Detection (UDLD)
Connectivity
Ports: 40
Port Quantity: 40
Port Type: 100/1000/2.5G/5G/10GBase-T
Ports (2nd) Quantity: 8
Ports Type (2nd): Gigabit SFP / 10 Gigabit SFP+
Ports (3rd) Quantity: 4
Interface Provided: 1 x serial RJ-45, 1 x USB Type A AUX, 1 x USB-C console, 4 x 40/100Gbit LAN QSFP28/QSFP+, 4 x Gigabit / 10Gbit LAN SFP+, 40 x 100/1000/2.5G/5G/10GBase-T RJ-45
QSFP Slots: 40 Gigabit QSFP+ / 100 Gigabit QSFP28
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: ARM
Processor Number: Cortex-A72
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 16 GB
Flash Memory Installed: 32 GB
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front to back airflow
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 16 inch
Weight: 18.89 lbs
Included Items
Included Accessories: 2-Post Rack Kit, 3 fan trays
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x, IEEE 802.3z
Compliant Standards: AS/NZS CISPR 32:2015 Class A, CISPR 35, CISPR-32 Class A, CNS 13438 Class A, Directive 2014/35/EU, EMC 2014/30/EU, EN 55032:2015, EN 55035:2017, EN 60825-1:2014, EN 61000-3-2:2019, EN 61000-3-3:2013, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 62368-1:2014 Second Edition, EN 62368-1:2020 3rd Edition, EN 63000:2018, FCC CFR 47 Part 15: 2018 Class A, ICES-003 Class A, IEC 60825-1:2014 Class 1, IEC 61000-3-2:2019, IEC 61000-3-3:2013, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1: 2014, IEC 62368-1:2018, KN32 Class A, Laser Class 1, UL62368-1/CAN/CSA C22.2 No.62368-1, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
