Product Information

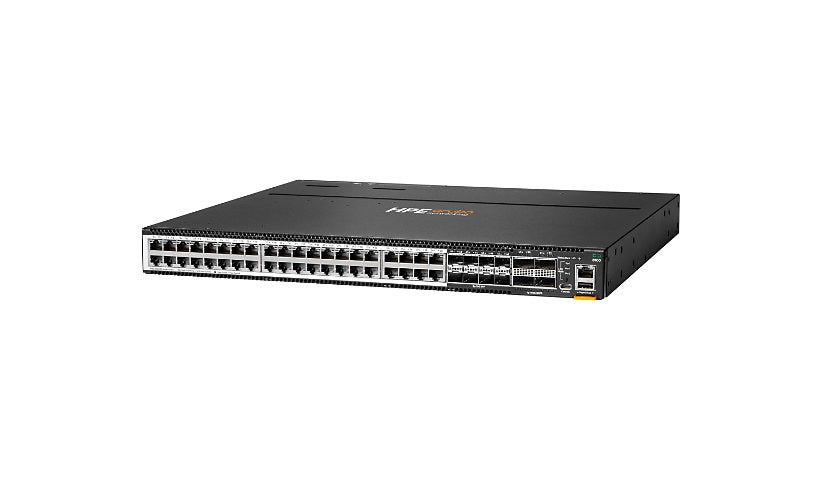

The HPE Aruba Networking CX 8100 R9W97A is a Layer 3 switch with 40 multi-gig RJ-45 ports up to 10G, eight 1/10G SFP+ ports and four 40/100G QSFP28 ports, delivering 1.76 Tbps. It supports VSX, BGP and VXLAN. This is the spare only version: power supplies are not installed, and a 2-post rack kit is included.
Key Features
- 40 x 100M-10G RJ-45 ports
- 8 x 1/10G SFP+ ports
- 4 x 40/100G QSFP28 ports
- 1.76 Tbps switching capacity
- Layer 3, VSX, BGP
- Spare only, power supplies not installed
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba Networking CX
Model: 8100 40x10GBase-T 8x10G SFP+ 4x40/100G QSFP28 Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Remote Management: MIB, SNMP, SNMP 2, SNMP 3
Routing Protocol: BGP-4, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, RIP-2
Authentication Method: RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Performance: Switching capacity: 1.76 Tbps
Capacity: IGMP groups: 4000, IPv4 ACL entries (egress): 2048, IPv4 ACL entries (ingress): 16384, IPv4 routes (Multicast): 4096, IPv4 routes (Unicast): 24576, IPv6 ACL entries (egress): 512, IPv6 ACL entries (ingress): 4096, IPv6 routes (Multicast): 4096, IPv6 routes (Unicast): 12288, Link aggregation groups: 54, MAC ACL entries (egress): 2048, MAC ACL entries (ingress): 16384, Maximum number of VLANs: 1024, MLD groups: 4000, Packet buffer size: 32 MB
MAC Address Table Size: 147456 entries
Jumbo Frame Support: 9000 bytes
Operating System Required: AOS-CX
Features: Address Resolution Protocol, Aruba Virtual Switching Extension (VSX), Bidirectional Forwarding Detection (BFD), Border Gateway Protocol 4 (BGP-4), Bridge protocol data unit (BPDU), Data Center Bridging (DCB), Dynamic VXLAN with BGP-EVPN, Equal-Cost Multipath (ECMP), Ethernet Ring Protection Switching (ERPS), Generic Routing Encapsulation (GRE), Layer 2 switching, Layer 3 routing, Network Timing Protocol (NTP), Open Shortest Path First (OSPF), Policy based routing, Port mirroring, Quality of Service (QoS), Rapid PVST+ (RPVST+), RDMA over Converged Ethernet (RoCE), RDMA over Converged Ethernet (RoCE) v2, sFlow, Unidirectional Link Detection (UDLD)
Edition: Spare Only
Connectivity
Ports: 40
Port Quantity: 40
Port Type: 100/1000/2.5G/5G/10GBase-T
Ports (2nd) Quantity: 8
Ports Type (2nd): Gigabit SFP / 10 Gigabit SFP+
Ports (3rd) Quantity: 4
Interface Provided: 1 x serial RJ-45, 1 x USB Type A AUX, 1 x USB-C console, 4 x 40/100Gbit LAN QSFP28/QSFP+, 40 x 100/1000/2.5G/5G/10GBase-T RJ-45, 8 x Gigabit / 10Gbit LAN SFP+
QSFP Slots: 40 Gigabit QSFP+ / 100 Gigabit QSFP28
Power
Device Type: Internal power supply (not installed)
Memory and Processor
Processor Brand: ARM
Processor Number: Cortex-A72
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 16 GB
Flash Memory Installed: 32 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 15 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 15 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 16 inch
Weight: 18.89 lbs
Included Items
Included Accessories: 2-Post Rack Kit
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x, IEEE 802.3z
