Product Information

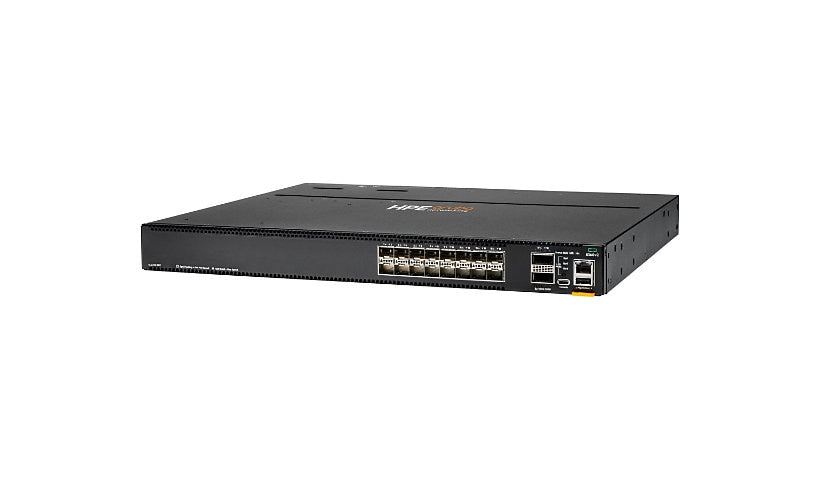

The HPE Aruba CX 8360-16Y2C v2 (JL702C) is a compact Layer 3 switch with 16 ports at 1/10/25G and two QSFP28 ports at 40/100G, for campus core and aggregation and data center top-of-rack use. It provides 4.8 Tbps of switching capacity, with two hot-plug power supplies and three fan modules included.
Key Features
- 16 x 1/10/25G SFP/SFP+/SFP28 ports
- 2 x 40/100G QSFP+/QSFP28 ports
- 4.8 Tbps switching capacity
- Layer 3, 16 GB RAM, 32 GB flash
- 2 hot-plug power supplies, 3 fans
- Front-to-back airflow
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba CX
Model: 8360-16Y2C V2
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: 25 Gigabit Ethernet
Manageable: Yes
Routing Protocol: BGP-4, BGP-MP, ECMP, GRE, MPLS, OSPF, OSPFv3, Policy-based routing (PBR), RIP-2, RIPng, Static IPv4 routing, Static IPv6 routing
Performance: Routing/switching capacity: 4.8 Tbps, Switch fabric speed: 4.8 Tbps, Switching capacity: 4.8 Tbps, Throughput: 2.678 Mpps
Features: Aggregation mode, IPv6 support, Top-of-Rack (ToR)
Connectivity
Ports: 16
Port Quantity: 16
Port Type: 1/10/25 Gigabit Ethernet SFP / SFP+ / SFP28
Ports (2nd) Quantity: 2
Ports Type (2nd): 40/100 Gigabit QSFP+ / QSFP28
Power
Power Supplies Installed: 2
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Voltage Required AC/DC: AC
Memory and Processor
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 16 GB
Flash Memory Installed: 32 GB
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front to back airflow
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Depth: 22 inch
Weight: 23.66 lbs
Included Items
Included Accessories: 3 x fan modules
Certifications and Listing
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
