Product Information

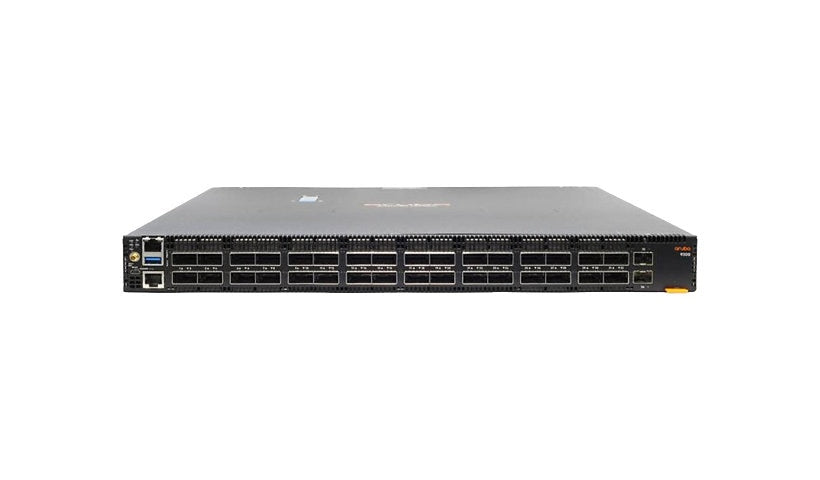

The HPE Aruba CX 9300-32D is a 1U Layer 3 data center switch with 32 QSFP-DD ports at 100/200/400G and two 1/10G SFP+ ports. It has 32 GB RAM, 128 GB flash, two hot plug power supplies, front to back airflow, six fan trays and a 2 post rack kit. This is a network switch, not an access point.
Key Features
- 32 x 100/200/400G QSFP-DD
- 2 x 1/10G SFP+
- 12.8 Tbps switching (listed)
- Layer 3 managed
- 2 PSUs installed, front to back airflow
- 6 fan trays, rack kit
Product Information
Brand: Aruba
Manufacturer: Aruba Data Center Switches
Product Line: HPE Aruba CX
Model: 9300-32D 32-port 100/200/400G QSFP-DD 2-port 10G SFP+ Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Country: United States
Localization: English
Network and Communication
Advanced Switching: Layer 3
Switching Type: 100 Gigabit Ethernet
Manageable: Yes
Remote Management: SNMP 2c, SNMP 3
Routing Protocol: BGP, BGP-4, ECMP, OSPF, OSPFv3, Policy-based routing (PBR), RIP-2, RIPng, Static IPv4 routing, Static IPv6 routing
Performance: Switching capacity: 12.8 Tbps, Throughput: 5 Bpps
Capacity: IGMP groups: 8192, IPv4 groups (Multicast): 8192, IPv4 host table capacity: 163840, IPv4 unicast direct routes: 65536, IPv6 groups (Multicast): 4096, IPv6 host table capacity: 81920, IPv6 unicast direct routes: 32768, MAC addresses: 81920, MLD groups: 8192, Packet buffer size: 132 MB
Features: Bidirectional Forwarding Detection (BFD), Cisco IOS IP Service-Level Agreements (IPSLA), Data Center Bridging Exchange (DCBX) support, Enhanced transmission selection (ETS), Ethernet Ring Protection Switching (ERPS), Priority-Based Flow Control (PFC), Rapid Per-VLAN Spanning Tree Plus (PVRST+), sFlow, Unidirectional Link Detection (UDLD), Virtual Extensible LAN (VXLAN), Virtual Route Redundancy Protocol (VRRP) support, Virtual Switch Extension (VSX)
Connectivity
Ports: 32
Port Quantity: 32
Port Type: 100/200/400 Gigabit QSFP-DD
Ports (2nd) Quantity: 2
Ports Type (2nd): 1 Gigabit / 10 Gigabit SFP+
Interface Provided: 1 x console (micro-USB), 1 x console RJ-45, 1 x management, 2 x 1/10Gbit LAN SFP+, 32 x 100/200/400Gbit LAN QSFP-DD
Power
Device Type: Internal power supply
Required Voltage: AC 100-127/200-240 volt
Frequency: 50/60 hertz
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply Supported: N+1
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
Processor Number: D-1537
Processors Installed: 1
Clock Speed: 1.7 GHZ
RAM Installed: 32 GB
Memory Technology: SDRAM
Flash Memory Installed: 128 GB
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front to back airflow
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 23.2 inch
Weight: 26.12 lbs
Included Items
Included Accessories: 6 fan trays, Rack kit (2 post)
Certifications and Listing
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP)
Compliant Standards: AS/NZS, CAN/CSA-C22.2 No. 62368-1.19 Third Edition, CISPR 24:2015, CISPR 32:2015 Class A, CNS 13483, EN 50581:2012, EN 55024:2015, EN 55032:2015, EN 60825-1:2014, EN 60950-1:2006+A1:2010+A11:2009 + A12:2011 + A2:2013, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 62368-1:2014+A11:2017, EN 62368-1:2018+A11:2020, FCC CFR47 Part 15 2010 Class A, ICES-003 issue 5, IEC 17025, IEC 60825-1:2014 Class 1, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-8, IEC 62368-1: 2014 Second Edition, IEC 62368-1:2018 Third Edition, ISTA 3C, UL 62368-1 Third Edition, VCCI 32:2016 Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
