Product Information

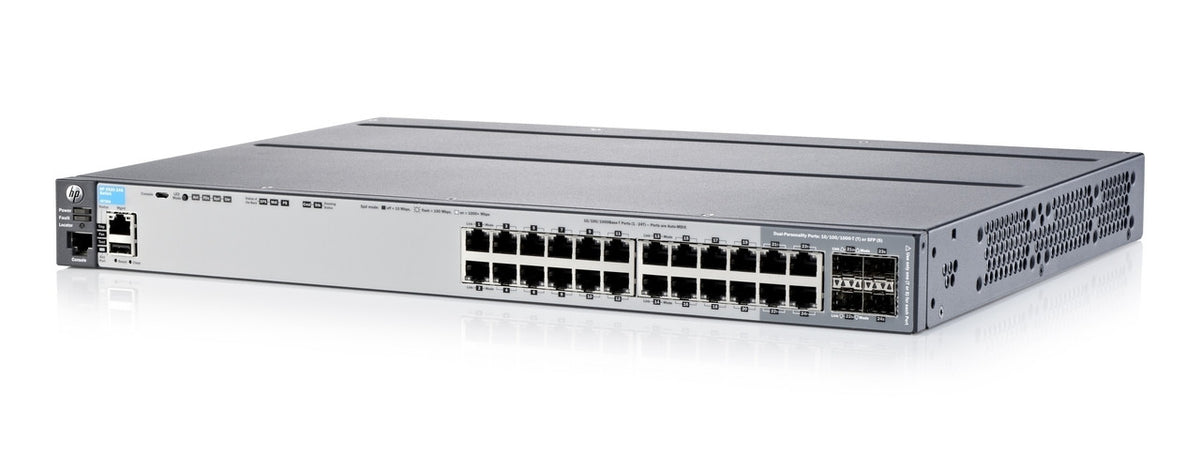

The HPE J9726-61001 is the Aruba 2920-24G-PoE+ managed switch, with 20 Gigabit RJ-45 PoE+ ports (10/100/1000, auto-sensing) and 4 dual-personality ports (RJ-45 or SFP). It suits branch office and enterprise networks.
Key Features
- Layer 2 and Layer 3 support, including DHCP server and static, RIPv1, RIPv2 and RIPng routing
- Two expansion slots and a stacking module slot
- OpenFlow SDN support, ACLs, RMON, XRMON and sFlow
- Layer 4, CoS and IEEE 802.1p traffic prioritization plus LLDP-MED
- IPv6 support with low latency and power use
- Works with Aruba ClearPass Policy Manager
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Specifications
Brand: HPE
MPN: J9726-61001
Option Part Number: J9726A
Spare Part Number: J9726-61001
General
Device Type: Switch - 24 ports - managed - stackable
Enclosure Type: Rack-mountable
Subtype: Gigabit Ethernet
Ports: 20 x 10/100/1000 + 4 x combo Gigabit SFP
Performance
Throughput: 95.2 Mpps
Switching capacity: 128 Gbps
Routing Protocol: RIP, static IP routing
Remote Management Protocol: SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, TFTP, CLI
Authentication Method: RADIUS
Features: DoS attack prevention, IPv6 support, half duplex mode, full duplex mode, Class of Service (CoS)
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1v, IEEE 802.3az, IEEE 802.1AX
Processor: 1 x ARM : 625 MHz
RAM: 512 MB - SDRAM
Flash Memory: 1 GB
Expansion & Connectivity
Interfaces: 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 4 x SFP (mini-GBIC) 1 x management (RS-232) - RJ-45 1 x management (mini-USB) - Type B
Expansion Slots: 2 (total) / 2 (free) x expansion slot 1 (total) / 1 (free) x Stacking Module slot
Power
Power Device: Internal power supply
Voltage Required: AC 120/230 V ( 50/60 Hz )
Miscellaneous
Compliant Standards: C-Tick, GOST, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN55024, EN55022 Class A, FCC Part 15 B, ICES-003 Class A, RoHS, IEC 60825-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1-07, IEC 60950-1 Second Edition, VCCI Class A
Dimensions & Weight
Width: 17.40 inch
Depth: 13.20 inch
Height: 1.80 inch
Weight: 11.60 lbs
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 131 °F
Humidity Range Operating: 15 - 95% (non-condensing)
Not sure this fits your network? Send us your switch or enclosure model and the DatorPro team will confirm compatibility before you order.
