Product Information

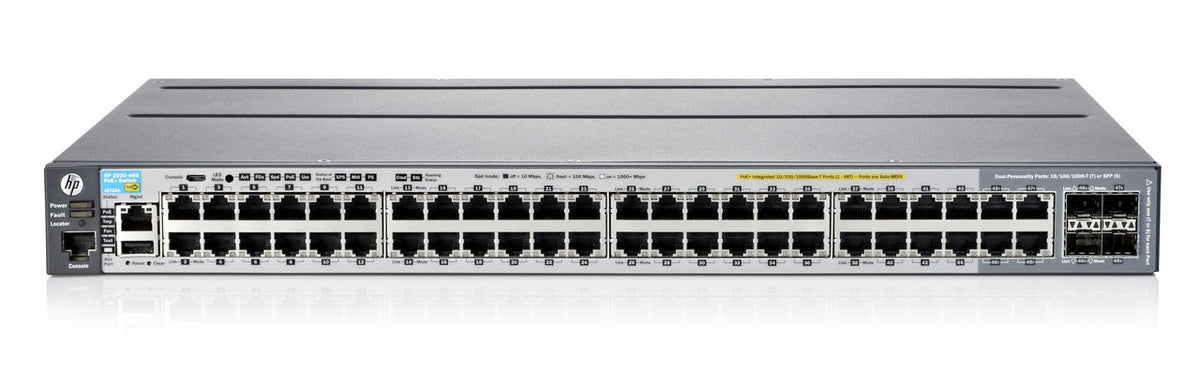

The HPE J9729A#ABA is the Aruba 2920-48G-PoE+ managed Layer 3 switch, with 44 auto-sensing 10/100/1000 RJ-45 PoE+ ports and 4 dual-personality SFP ports. It suits branch offices, SMBs and the enterprise edge.
Key Features
- Modular stacking and optional 10GbE uplinks
- Static, RIP and Access OSPF routing, tunneled node, ACLs, sFlow, QoS and IPv6
- SDN ready with OpenFlow support
- MSTP, LACP, UDLD, STP Root Guard, LLDP and Energy Efficient Ethernet
- Security and management through Aruba ClearPass Policy Manager, AirWave, and Aruba Central in the cloud
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Specifications
Brand: HPE
MPN: J9729A#ABA
Model: J9729A#ABA
General
Device Type: Switch - Managed - Stackable
Enclosure Type: Desktop
Ports: 48 X 10/100/1000 + 4 X Shard Gigabit SFP
Power Over Ethernet (POE): POE+
Routing Protocol: RIP, Static IP Routing
Remote Management Protocol: SNMP 1, RMON 1, TELNET, SNMP 3, SNMP 2C, TFTP, CLI
Authentication Method: Radius
Processor: 1 X ARM : 625 MHZ
RAM: 512 MB - SDRAM
Flash Memory: 1 GB
Interfaces: 48 X 10BASE-T/100BASE-TX/1000BASE-T - RJ-45 - POE+ 4 X SFP (Mini-GBIC)
Management: 1 X RS-232 - RJ-45
Management: 1 X 5 PIN MICRO-USB TYPE B
Features: DOS Attack Prevention, IPV6 Support, Half Duplex Mode, Full Duplex Mode, Class of Service (COS)
Compliant Standards: IEEE 802.3, IEEE 802.3U, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1P, IEEE 802.3AF, IEEE 802.3X, IEEE 802.3AD (LACP), IEEE 802.1W, IEEE 802.1S, IEEE 802.1V, IEEE 802.3AT, IEEE 802.3AZ, IEEE 802.1AX
Expansion Slot(s): 2 (Total) / 2 (Free) X Expansion Slot
1 (Total) / 1 (Free) X Stacking Module Slot
Performance
Throughput: 130.9 Mbps
Switching Capacity: 176 Gbps
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 131 °F
Humidity Range Operating: 15 - 95% (non-condensing)
Min Storage Temperature (POE): -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 15 - 95% (non-condensing)
