Product Information

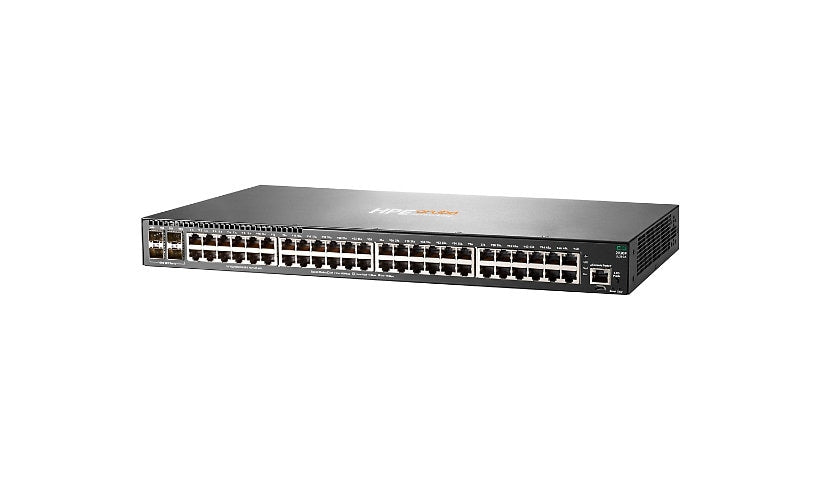

HPE's Aruba Networking 2930F (JL260A) is a stackable Layer 3 access switch with 48 Gigabit RJ-45 ports and four Gigabit SFP uplinks. It provides 104 Gbps of switching capacity and 77.4 Mpps throughput, with an internal power supply and mounting ears included.
Key Features
- 48 x 10/100/1000 RJ-45 ports
- 4 x Gigabit SFP uplinks
- 104 Gbps switching, 77.4 Mpps
- Layer 3, stackable
- 1 GB RAM, 4 GB flash
- Mounting ears and rubber feet included
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: 2930F 48G 4SFP
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Country: United States
Localization: English
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, RMON 1, SNMP, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet, XRMON
Routing Protocol: BGP, CIDR, IGMP, IGMPv2, IGMPv3, MLD, OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2, RIPng, Static IP routing, Static IPv4 routing, Static IPv6 routing
Authentication Method: CHAP, PAP, RADIUS, TACACS, TACACS+
Encryption: MD5, SSL
Performance: Latency (1 Gbps): 3.8 µs, Switching capacity: 104 Gbps, Throughput: 77.4 Mpps
Capacity: IPv4 routing table entries: 10000, IPv6 routing table entries: 5000, Jumbo frame size: 9220
MAC Address Table Size: 32K entries
Stackable: Stackable
Features: Access Control List (ACL) support, ARP support, BOOTP support, Class of Service (CoS), CPU protection, DHCP protection, DHCP server, DHCP support, DiffServ support, Dynamic ARP protection, Dynamic VLAN Support (GVRP), Flow control, Full duplex capability, ICMP Router Discovery Protocol (IRDP), IGMP snooping, Internet Control Message Protocol (ICMP), IPv6 support, Jumbo Frames support, Link Aggregation Control Protocol (LACP), LLDP support, MAC address lockout, Management Information Base (MIB), Management Information Base (MIB) II, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), OpenFlow support, Quality of Service (QoS), sFlow, SNTP support, Spanning Tree Protocol (STP) support, STP Root Guard, Syslog support, Type of Service (ToS), Uni-Directional Link Detection (UDLD), Virtual Extensible LAN (VXLAN), VLAN support
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000
Ports (2nd) Quantity: 4
Ports Type (2nd): Gigabit SFP (uplink)
Interface Provided: 1 x serial (console), 4 x Gigabit LAN SFP, 48 x 1000Base-T RJ-45
Expansion Slots: 1 (total) / 1 (free) x expansion slot
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: ARM
Processor Type: Cortex-A9
Processors Installed: 1
Clock Speed: 1.016 GHZ
RAM Installed: 1 GB
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 4 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 15 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 15 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Supported Devices: 4
Installed Devices/Modules: 0
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 9.7 inch
Weight: 6.83 lbs
Included Items
Included Accessories: 4 bumper feet, 4 mounting ears, Cable tie, Mounting screws
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
Warranty
Service Activation: No
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
