Product Information

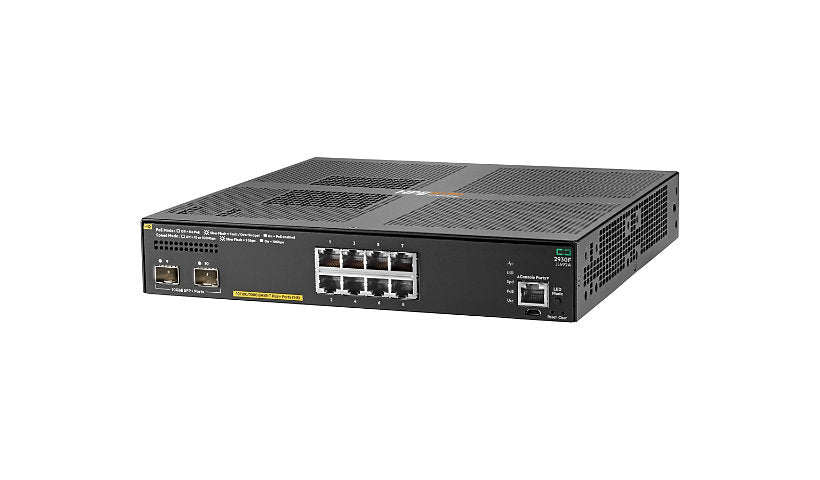

HPE's Aruba Networking 2930F 8G PoE+ 2SFP+ TAA (JL692A) is a compact stackable Layer 3 switch with eight Gigabit PoE+ ports and two 1/10G SFP+ uplinks. It has a 125 W PoE budget and 56 Gbps of switching capacity, comes with rack and table mount kits and is TAA compliant.
Key Features
- 8 x 10/100/1000 RJ-45 PoE+ ports
- 2 x 1/10G SFP+ uplinks
- 125 W PoE budget
- 56 Gbps switching, 41.7 Mpps
- Layer 3, stackable
- Rack and table kits, TAA compliant
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: 2930F 8G PoE+ 2SFP+ TAA
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Country: United States
Localization: English
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, RMON 1, SNMP, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet, XRMON
Routing Protocol: BGP, CIDR, IGMP, IGMPv2, IGMPv3, MLD, OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2, RIPng, Static IP routing, Static IPv4 routing, Static IPv6 routing
Authentication Method: CHAP, PAP, RADIUS, TACACS, TACACS+
Encryption: MD5, SSL
Performance: Latency (1 Gbps): 3.8 µs, Latency (10 Gbps): 1.6 µs, Switching capacity: 56 Gbps, Throughput: 41.7 Mpps
Capacity: IPv4 routing table entries: 10000, IPv6 routing table entries: 5000, Jumbo frame size: 9220
MAC Address Table Size: 32K entries
Stackable: Stackable
Features: Access Control List (ACL) support, ARP support, BOOTP support, Class of Service (CoS), CPU protection, DHCP protection, DHCP server, DHCP support, DiffServ support, Dynamic ARP protection, Dynamic VLAN Support (GVRP), Fanless, Flow control, Full duplex capability, ICMP Router Discovery Protocol (IRDP), IGMP snooping, Internet Control Message Protocol (ICMP), IPv6 support, Jumbo Frames support, Link Aggregation Control Protocol (LACP), LLDP support, MAC address lockout, Management Information Base (MIB), Management Information Base (MIB) II, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), OpenFlow support, Quality of Service (QoS), sFlow, SNTP support, Spanning Tree Protocol (STP) support, STP Root Guard, Syslog support, Type of Service (ToS), Uni-Directional Link Detection (UDLD), Virtual Extensible LAN (VXLAN), VLAN support
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 2
Ports Type (2nd): 1 Gigabit / 10 Gigabit SFP+ (uplink)
Interface Provided: 1 x serial (console), 2 x Gigabit / 10Gbit LAN SFP+, 8 x 1000Base-T RJ-45 PoE+
Expansion Slots: 1 (total) / 1 (free) x expansion slot
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
PoE Budget: 125 watt
Memory and Processor
Processor Brand: ARM
Processor Type: Cortex-A9
Processors Installed: 1
Clock Speed: 1.016 GHZ
RAM Installed: 1 GB
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 4 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 15 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 15 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Supported Devices: 2
Installed Devices/Modules: 0
Dimensions and Weight
Height: 1.7 inch
Width: 10 inch
Depth: 10 inch
Weight: 4.41 lbs
Included Items
Included Accessories: 4 rubber feet, Mounting screws, Rack mount kit, Table mounting kit
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
