Product Information

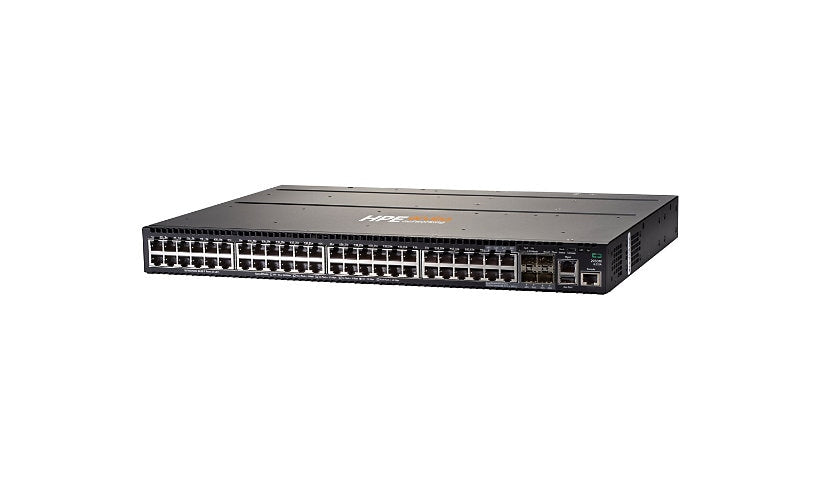

HPE's Aruba Networking 2930M 48G 1-Slot (JL321A) is a stackable Layer 3 access switch with 44 Gigabit ports, four combo Gigabit SFP ports and one expansion slot. It offers 176 Gbps of switching capacity and 100 Gbps of stacking bandwidth with front to back airflow. The power supply is not installed and is ordered separately.
Key Features
- 44 x 10/100/1000 RJ-45 ports
- 4 x combo Gigabit SFP ports
- 1 expansion slot
- 176 Gbps switching, 112 Mpps
- Stackable, 100 Gbps
- Power supply not installed
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: 2930M 48G 1-Slot
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTP, RMON, RMON 1, RMON 2, RMON 3, RMON 9, SNMP, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet, XRMON
Routing Protocol: CIDR, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2, RIPng, Static IP routing, Static IPv4 routing, Static IPv6 routing
Authentication Method: CHAP, PAP, RADIUS, TACACS, TACACS+
Encryption: MD5, SSL
Performance: Latency (1 Gbps): 3.1 µs, Latency (10 Gbps): 3.4 µs, Latency (10 Mbps): 98.5 µs, Latency (100 Mbps): 11.8 µs, Stacking bandwidth: 100 Gbps, Switching capacity: 176 Gbps, Throughput: 112 Mpps
Capacity: IPv4 routing table entries: 2000, IPv6 routing table entries: 1000, OSPF routes: 200, RIP routes: 10000, Static routes: 256
MAC Address Table Size: 32768 entries
Jumbo Frame Support: 9220 bytes
Stackable: Stackable
Features: BOOTP support, Class of Service (CoS), DHCP protection, DHCP server, DHCP support, DiffServ support, Dynamic ARP protection, Dynamic VLAN Support (GVRP), Flow control, ICMP Router Discovery Protocol (IRDP), IGMP snooping, IPv6 support, Management Information Base (MIB), Multiple VLAN Registration Protocol (MVRP), Quality of Service (QoS), sFlow, SNTP support, STP Root Guard, Type of Service (ToS), Uni-Directional Link Detection (UDLD), Virtual Extensible LAN (VXLAN), VLAN support
Connectivity
Ports: 48
Port Quantity: 44
Port Type: 10/100/1000
Ports (2nd) Quantity: 4
Ports Type (2nd): Combo Gigabit SFP
Interface Provided: 1 x management RJ-45, 1 x serial (console) RJ-45, 1 x USB Type B, 4 x Gigabit LAN, 44 x 1000Base-T RJ-45
Expansion Slots: 1 (total) / 1 (free) x expansion slot, 1 (total) / 1 (free) x Stacking Module slot
Power
Device Type: Internal power supply (not installed)
Memory and Processor
Processor Brand: ARM
Processor Type: Cortex-A9
Processors Installed: 1
Clock Speed: 1.016 GHZ
RAM Installed: 1 GB
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 4 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 15 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front to back airflow
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 12.8 inch
Weight: 10.14 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3az, IEEE 802.3x
Compliant Standards: CISPR 22 Class A, CISPR 24, CNS 13438, CSA C22.2 No. 60950-1-07 Second Edition, EN 55022:2010, EN 55024:2010, EN 60825-1:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60825-1:2007, IEC 60950-1:2005 + A1:2009 + A2:2013, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 60950-1 Second Edition, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
