Product Information

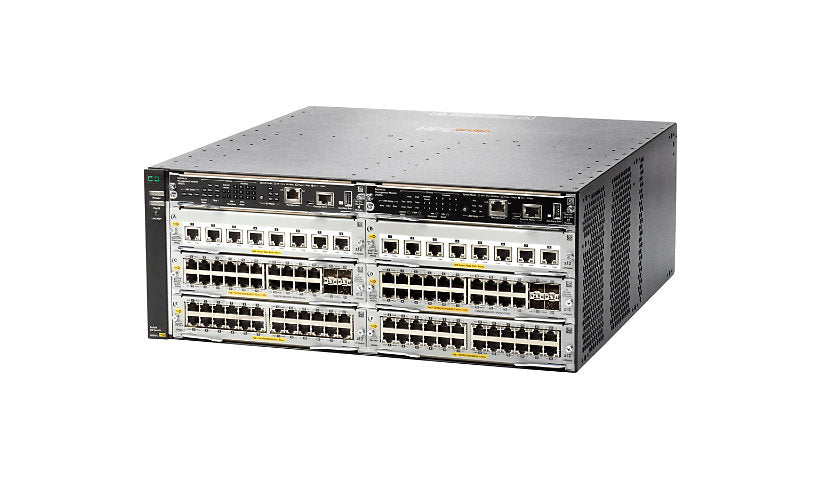

HPE's Aruba Networking 5406R zl2 (J9821A) is a modular Layer 3 switch chassis with six module slots, supporting PoE+ line modules. It offers 528 Gbps of routing and switching capacity and includes a fan tray. Power supplies and line modules are not included and are ordered separately.
Key Features
- 6 module slots
- PoE+ capable with PoE+ modules
- 528 Gbps routing/switching capacity
- Fan tray included
- Power supplies not installed
- Rack mount
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: 5406R zl2
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTP, RMON, RMON 2, SNMP 1, SNMP 2c, SNMP 3, SSH-2, XRMON
Routing Protocol: BGP, IGMP, IGMPv3, OSPF, OSPFv2, OSPFv3, RIP-1, RIP-2, Static IP routing
Authentication Method: RADIUS, Secure Shell v.2 (SSH2), TACACS+
Encryption: SSL
Performance: Routing/switching capacity: 528 Gbps, Switching fabric bandwidth: 1015 Gbps, Throughput: 392.8 Mbps
Capacity: IPv4 routing table entries: 10000, IPv6 routing table entries: 5000
MAC Address Table Size: 64K entries
Features: Access Control List (ACL) support, Auto-uplink (auto MDI/MDI-X), Class of Service (CoS), DHCP protection, Full duplex mode, Generic Attribute Registration Protocol (GARP), Half duplex mode, IGMP snooping, LLDP support, MLD snooping, Port Security, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), sFlow, sFlow v5, STP Root Guard, Type of Service (ToS), Uni-Directional Link Detection (UDLD), Virtual Route Redundancy Protocol (VRRP) support, VLAN support
Connectivity
Expansion Slots: 6 (total) / 6 (free) x expansion slot
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply (not installed)
Power Supplies Supported: 2
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 15 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 15 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 4
Rack Mounting Kit: Included
Dimensions and Weight
Height: 6.9 inch
Width: 17.5 inch
Depth: 17.8 inch
Weight: 24.49 lbs
Included Items
Included Accessories: Fan tray
Certifications and Listing
Compliant Standards: CISPR 22 Class A, CISPR 24, CSA 22.2 No. 60950, EN 55022 Class A, EN 60950, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN55024, FCC Class A certified, FCC Part 15, IEC 60950, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 60950
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - replacement - lifetime - response time: next business day, Technical support - phone consulting - lifetime
Service Activation: No
