Product Information

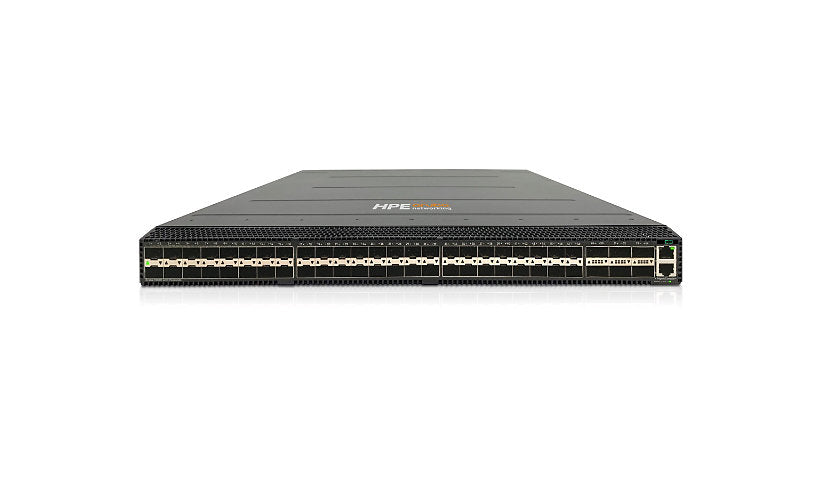

HPE's Aruba Networking CX 10000-48Y6C (R8P14A) is a Layer 3 data center switch with 48 1/10/25G SFP28 ports and six 40/100G QSFP28 ports. It offers 3.6 Tbps of switching capacity with latency under 1.3 microseconds, and ships with two hot-plug power supplies, six fans and back to front airflow.
Key Features
- 48 x 1/10/25G SFP/SFP+/SFP28 ports
- 6 x 40/100G QSFP+/QSFP28 ports
- 3.6 Tbps switching capacity
- REST API, 16 GB RAM
- 2 hot-plug power supplies installed
- 6 fans, back to front airflow
Product Information
Brand: Aruba
Manufacturer: Aruba Data Center Switches
Product Line: HPE Aruba CX
Model: 10000-48Y6C
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: 25 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, SNMP
Routing Protocol: BGP-4, ECMP, GRE, Multiprotocol BGP, OSPF, OSPFv3, Policy-based routing (PBR), RIP-2, RIPng, Static IPv4 routing, Static IPv6 routing
Performance: Latency: < 1.30 µs, Switching capacity: 3.6 Tbps
Capacity: IGMP groups: 4094, IPv4 hosts: 120000, IPv4 routes (Multicast): 4094, IPv4 unicast direct routes: 131072, IPv6 hosts: 52000, IPv6 routes (Multicast): 4094, IPv6 unicast direct routes: 32732, MLD groups: 4094
MAC Address Table Size: 98K entries
Features: REST API interface
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 1/10/25 Gigabit Ethernet SFP / SFP+ / SFP28
Ports (2nd) Quantity: 6
Ports Type (2nd): 40/100 Gigabit QSFP+ / QSFP28
Interface Provided: 1 x console (micro-USB), 1 x console (USB), 1 x LAN RJ-45 management, 1 x serial RJ-45
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Power Provided: 550 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Hot-Plug: Hot-plug
Memory and Processor
RAM Installed: 16 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 85% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 95%
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Back to front airflow
Built-in Devices: 64 GB SSD
Rack Mounting Kit: Optional
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 20.1 inch
Weight: 21.49 lbs
Included Items
Included Accessories: 6 x fans
Certifications and Listing
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
