Product Information

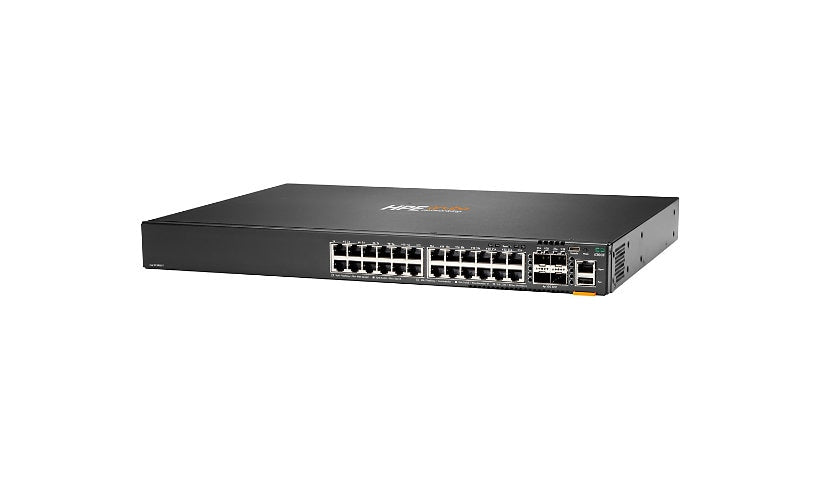

HPE's Aruba Networking CX 6200F (JL724A) is a stackable Layer 3 access switch with 24 Gigabit RJ-45 ports and four 1/10G SFP+ uplinks. It offers 128 Gbps of switching capacity and 95.2 Mpps throughput, with typical power use of 59 W.
Key Features
- 24 x 10/100/1000 RJ-45 ports
- 4 x 1/10G SFP+ uplinks
- 128 Gbps switching, 95.2 Mpps
- Stackable, Layer 3
- Rack mountable
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: 6200F 24G 4SFP+ Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Country: United States
Localization: English
Network and Communication
Advanced Switching: Layer 3
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Performance: Latency (1 Gbps): 2.28 µs, Latency (10 Gbps): 1.46 µs, Switching capacity: 128 Gbps, Throughput: 95.2 Mpps
Stackable: Stackable
Connectivity
Ports: 28
Port Quantity: 24
Port Type: 10/100/1000
Ports (2nd) Quantity: 4
Ports Type (2nd): 1 Gigabit / 10 Gigabit SFP+
Interface Provided: 24 x 10/100/1000 Base-T RJ-45, 4 x 1/10Gbit LAN SFP+
Power
Required Voltage: AC 100-120/200-240 volt
Power Consumption Operational: 59 watt
Memory and Processor
Processor Brand: ARM
Processor Type: Cortex-A72
Processors Installed: 1
Clock Speed: 1.8 GHZ
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 12.9 inch
Weight: 9.61 lbs
Certifications and Listing
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
