Product Information

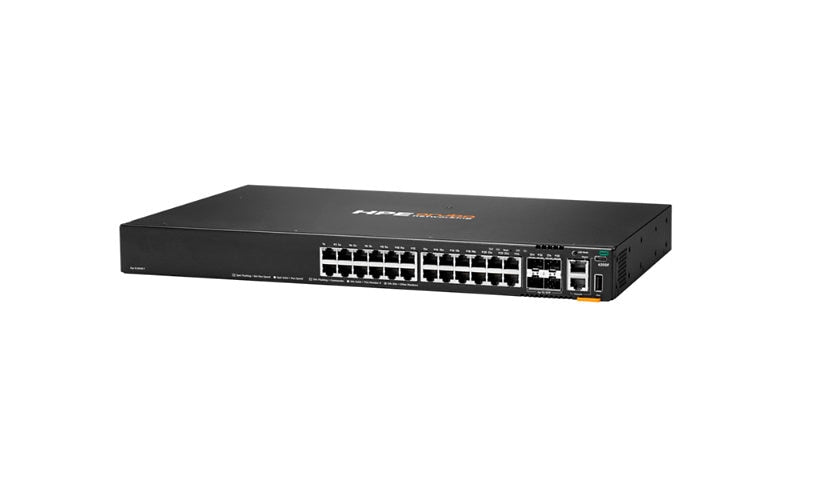

HPE's Aruba Networking CX 6200F (S0M81A) is a stackable Layer 3 access switch with 24 Gigabit RJ-45 ports and four 100/1000 SFP uplinks. It offers 128 Gbps of switching capacity and stacks up to eight units over distances up to 10 km.
Key Features
- 24 x 10/100/1000 RJ-45 ports
- 4 x 100/1000 SFP uplinks
- 128 Gbps switching, 95.2 Mpps
- Stack up to 8 units, 10 km distance
- Layer 3 managed
- 2-post rack kit included
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba Networking CX
Model: 6200F 24G 4SFP Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Country: United States
Localization: English
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, MIB, RMON
Routing Protocol: IGMP, IGMPv2, IGMPv3, MLD, MLDv2, OSPFv2, OSPFv3, RIP-2
Authentication Method: RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Performance: Latency (1 Gbps): 2.28 µs, Latency (10 Gbps): 1.46 µs, Stacking bandwidth: 40 Gbps, Switching capacity: 128 Gbps, Throughput: 95.2 Mpps
Capacity: IGMP groups: 1024, IPv4 ACL entries (egress): 2048, IPv4 ACL entries (ingress): 5120, IPv4 host table capacity: 8192, IPv4 routes (Unicast): 2048, IPv6 ACL entries (egress): 512, IPv6 ACL entries (ingress): 1280, IPv6 host table capacity: 8192, IPv6 routes (Unicast): 1024, MAC ACL entries (egress): 2048, MAC ACL entries (ingress): 5120, MLD groups: 1024, Packet buffer size: 8 MB
MAC Address Table Size: 32768 entries
Jumbo Frame Support: 9220 bytes
Stackable: Stackable
Features: Address Resolution Protocol, Bridge protocol data unit (BPDU), Class of Service (CoS), Deficit Weighted Round Robin (DWRR), Egress Queue Shaping (EQS), Link Layer Discovery Protocol, Rapid PVST+ (RPVST+), Type of Service (ToS), Uni-Directional Link Detection (UDLD), Unsupported Transceiver Mode (UTM), Virtual Route Redundancy Protocol (VRRP) support
Max Units In A Stack: 8
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000
Ports (2nd) Quantity: 4
Ports Type (2nd): 100/1000 SFP
Interface Provided: 1 x console RJ-45, 1 x management, 1 x USB Type A host, 1 x USB-C console, 24 x 10/100/1000 Base-T RJ-45, 4 x 100/1000 SFP uplink
Power
Device Type: Internal power supply
Required Voltage: AC 100-120/200-240 volt
Frequency: 50/60 hertz
80 PLUS Certification: 80 PLUS Silver
Memory and Processor
Processor Brand: ARM
Processor Number: Cortex-A72
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 8 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 16 GB
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front and side to back
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 11.2 inch
Weight: 8.31 lbs
Included Items
Included Accessories: 2-Post Rack Kit
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab
Compliant Standards: AS/NZS CISPR 32:2015 Class A, CAN/CSA C22.2 No. 62368-1:19 Third Edition, CISPR 32:2016 Class A, CISPR 35: 2016, CNS 15598-1:2020, EN 55032:2015 /A11:2020, Class A, EN 55035:2017+A11:2020, EN 60825-1:2014, EN 61000-3-2, EN 61000-3-2:2019, EN 61000-3-3, EN 61000-3-3:2013, EN 62368-1:2014+A11:2017, EN 62368-1:2020+A11:2020, FCC 47 CFR part 15B:2021 Class A, GB 4943.1-2022, ICES-003 Issue 7: 2020 Class A, IEC 60825-1:2014 Class 1, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1: 2014 Second Edition, IEC 62368-1:2018 Third Edition, KS C 9832, Laser Class 1, UL 62368-1 Third Edition, VCCI-CISPR 32 Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
