Product Information

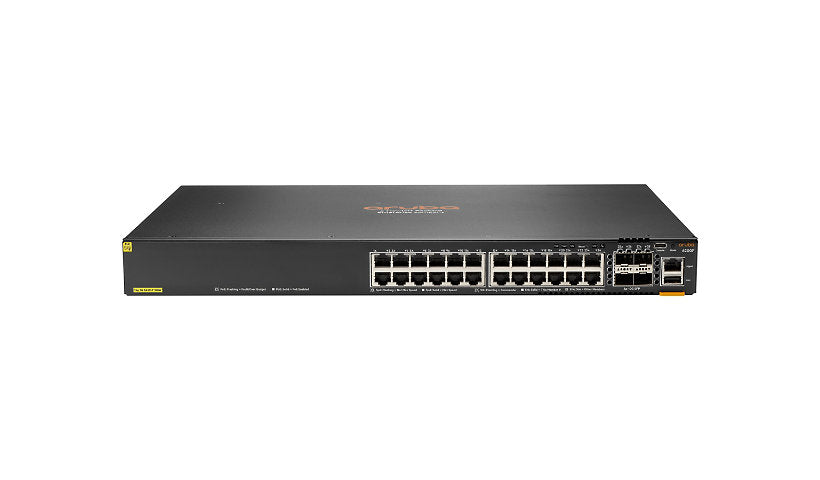

HPE's Aruba Networking CX 6200F (S0M82A) is a stackable Layer 3 access switch with 24 Gigabit Class 4 PoE ports and four 100/1000 SFP uplinks. It shares a 370 W PoE budget, offers 128 Gbps of switching capacity and stacks up to eight units over distances up to 10 km.
Key Features
- 24 x 10/100/1000 RJ-45 Class 4 PoE ports, 30 W
- 4 x 100/1000 SFP uplinks
- 370 W PoE budget
- 128 Gbps switching, 95.2 Mpps
- Stack up to 8 units, 10 km stacking distance
- 2-post rack kit included
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba Networking CX
Model: 6200F 24G Class 4 PoE 4SFP 370W Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Country: United States
Localization: English
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, MIB, RMON
Routing Protocol: IGMP, IGMPv2, IGMPv3, MLD, MLDv2, OSPFv2, OSPFv3, RIP-2
Authentication Method: RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Performance: Latency (1 Gbps): 2.28 µs, Latency (10 Gbps): 1.46 µs, Stacking bandwidth: 40 Gbps, Switching capacity: 128 Gbps, Throughput: 95.2 Mpps
Capacity: IGMP groups: 1024, IPv4 ACL entries (egress): 2048, IPv4 ACL entries (ingress): 5120, IPv4 host table capacity: 8192, IPv4 routes (Unicast): 2048, IPv6 ACL entries (egress): 512, IPv6 ACL entries (ingress): 1280, IPv6 host table capacity: 8192, IPv6 routes (Unicast): 1024, MAC ACL entries (egress): 2048, MAC ACL entries (ingress): 5120, MLD groups: 1024, Packet buffer size: 8 MB
MAC Address Table Size: 32768 entries
Jumbo Frame Support: 9220 bytes
Stackable: Stackable
Features: Address Resolution Protocol, Bridge protocol data unit (BPDU), Class of Service (CoS), Deficit Weighted Round Robin (DWRR), Egress Queue Shaping (EQS), Link Layer Discovery Protocol, PoE Class 4, Rapid PVST+ (RPVST+), Trusted Platform Module (TPM), Type of Service (ToS), Uni-Directional Link Detection (UDLD), Unsupported Transceiver Mode (UTM), Virtual Route Redundancy Protocol (VRRP) support
Max Units In A Stack: 8
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 100/1000 SFP
Interface Provided: 1 x console RJ-45, 1 x management, 1 x USB Type A host, 1 x USB-C console, 24 x 10/100/1000 Base-T (PoE+) RJ-45 PoE Class 4 - 30 W, 4 x 100/1000 SFP uplink
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Required Voltage: AC 100-127/200-240 volt
Frequency: 50/60 hertz
PoE Budget: 370 watt
Memory and Processor
Processor Brand: ARM
Processor Number: Cortex-A72
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 8 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 16 GB
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front and side to back
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 12 inch
Weight: 9.68 lbs
Included Items
Included Accessories: 2-Post Rack Kit
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
Compliant Standards: AS/NZS CISPR 32:2015 Class A, CAN/CSA C22.2 No. 62368-1:19 Third Edition, CISPR 32:2016 Class A, CISPR 35: 2016, CNS 15598-1:2020, CNS 15936: 2020 Class A, EN 55032:2015 /A11:2020, Class A, EN 55035:2017+A11:2020, EN 60825-1:2014, EN 61000-3-2, EN 61000-3-2:2019, EN 61000-3-3, EN 61000-3-3:2013, EN 62368-1:2014+A11:2017, EN 62368-1:2020+A11:2020, EN 63000:2018, FCC 47 CFR part 15B:2021 Class A, GB 4943.1-2022, ICES-003 Issue 7: 2020 Class A, IEC 60825-1:2014 Class 1, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1: 2014 Second Edition, IEC 62368-1:2018 Third Edition, IEC 63000:2018, KC 62368-1: 2021-08, KS C 9832, Laser Class 1, UL 62368-1 Third Edition, VCCI-CISPR 32 Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
