Product Information

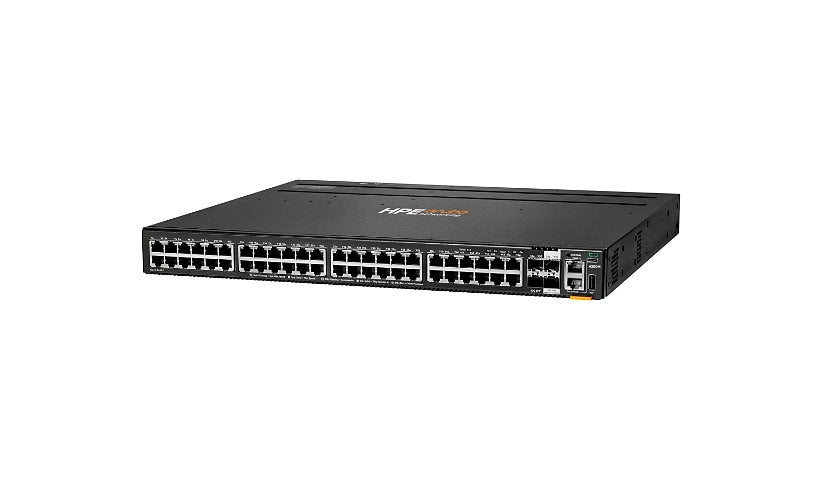

HPE's Aruba Networking CX 6200M (R8Q69A) is a stackable Layer 3 access switch with 48 Gigabit RJ-45 ports and four 1/10G SFP+ ports, two of which support MACsec. It offers 176 Gbps of switching capacity and stacks up to eight units over distances up to 10 km. Power supplies are not installed.
Key Features
- 48 x 10/100/1000 RJ-45 ports
- 4 x 1/10G SFP+ ports, 2 with MACsec
- 176 Gbps switching, 130.9 Mpps
- Stack up to 8 units, 10 km distance
- Power supplies not installed
- Hot swap fan tray, 2-post rack kit
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: 6200M 48G 4SFP+ Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, SNMP, SNMP 2c, SNMP 3
Routing Protocol: ECMP, OSPF, OSPFv2, OSPFv3, RIP-2
Authentication Method: RADIUS, TACACS+
Performance: Latency (1 Gbps): 2.28 µs, Latency (10 Gbps): 1.46 µs, Packet buffer size: 8 MB, Stacking bandwidth: 40 Gbps, Switching capacity: 176 Gbps, Throughput: 130.9 Mpps
Capacity: IGMP groups: 1000, IPv4 ACL entries (egress): 512, IPv4 ACL entries (ingress): 1000, IPv4 host table capacity: 8000, IPv4 routes (Unicast): 2000, IPv6 ACL entries (egress): 256, IPv6 ACL entries (ingress): 1000, IPv6 host table capacity: 8000, IPv6 routes (Unicast): 2000, MAC ACL entries (egress): 512, MAC ACL entries (ingress): 1000, MLD groups: 1000, Switched virtual interfaces (SVIs): 128
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9220 bytes
Stackable: Stackable
Features: ARP support, Automatic Media-Dependent Interface Crossover (MDIX), Bridge protocol data unit (BPDU), Class of Service (CoS), Deficit Weighted Round Robin (DWRR), DiffServ support, DNS support, Egress Queue Shaping (EQS), Equal-Cost Multipath (ECMP), IGMP support, Layer 2 switching, Management Information Base (MIB), Network Timing Protocol (NTP), Quality of Service (QoS), Rapid PVST+ (RPVST+), Security slot (Kensington security lock compatible), Source-Specific Multicast (SSM), Trusted Platform Module (TPM), Type of Service (ToS), Uni-Directional Link Detection (UDLD), Unidirectional Link Detection (UDLD), Unsupported Transceiver Mode (UTM), Virtual Route Redundancy Protocol (VRRP) support, Web GUI management portal
Max Units In A Stack: 8
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000
Ports (2nd) Quantity: 4
Ports Type (2nd): 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking)
Interface Provided: 1 x console (USB) Type C, 1 x console RJ-45, 1 x management RJ-45, 1 x USB Type A host, 4 x 1/10Gbit LAN SFP+ 2x LRM; 2x LRM/MACSec 256, 48 x 10/100/1000 Base-T RJ-45
Power
Device Type: Internal power supply (not installed)
Required Voltage: AC 100-120/200-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 75 watt
Power Supplies Supported: 2
Memory and Processor
Processor Brand: ARM
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 8 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 16 GB
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front and side to back
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 15.2 inch
Weight: 12.63 lbs
Included Items
Included Accessories: Fan tray (field replaceable, hotswappable), Rack kit (2 post)
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad (LACP)
Compliant Standards: BS EN 62368-1:2014 + A11:2017 2nd Ed, BS EN 62368-1:2020 + A11:2020 3rd Ed, CISPR 32 Ed 2.1: 2019 Class A, CISPR 35, CISPR 35 Ed 1.0:2016, CNS 15598-1:2020, CSA 22.2 No.62368-1 Third Edition, EN 55032:2015+A11:2020 Class A, EN 55035:2017+A11:2020, EN 60825-1:2014, EN 61000-3-2, EN 61000-3-2:2019, EN 61000-3-3, EN 61000-3-3:2013/A1:2019, EN 62368-1:2014+A11:2017 2nd Ed., EN 62368-1:2020+A11:2020 3rd Ed., FCC 47 CFR part 15B:2014 Class A, ICES-003 Class A, IEC 60825-1:2014 Class 1, IEC 60950-1:2005 + A1:2009 + A2:2013, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1:2014 2nd Ed, IEC 62368-1:2018 Third Edition, Laser Class 1, RoHS, UL 62368-1 Third Edition, VCCI Class A, WEEE
ENERGY STAR Certified: No
