Product Information

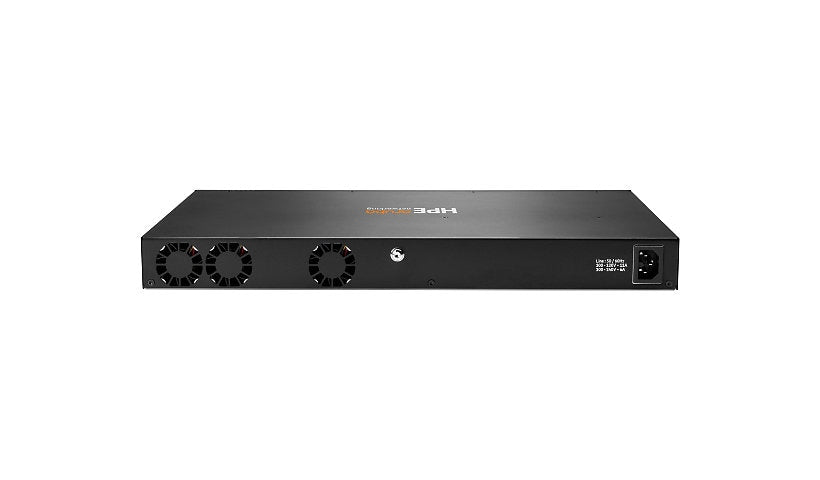

HPE's Aruba Networking CX 6300F (JL666A) is a stackable Layer 3 switch with 24 Gigabit PoE+ ports at up to 30 W and four 50G SFP56 ports. It has an 8 MB packet buffer and front to back airflow, ships with one power supply and is TAA compliant.
Key Features
- 24 x 10/100/1000 RJ-45 PoE+ ports, 30 W
- 4 x 50G SFP56 ports
- Stackable, Layer 3
- 8 GB RAM, 32 GB flash
- 1 power supply installed
- TAA compliant
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: 6300F
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Country: United States
Localization: English
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: HTTP, RMON, SFTP, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP, XRMON
Routing Protocol: BGP, BGP-4, CIDR, IGMP, IGMPv3, MLD, MLDv2, MSDP, OSPF, OSPFv2, PIM-DM
Authentication Method: RADIUS, Secure Shell (SSH), TACACS+
Encryption: FIPS 140-2, SSL
Performance: 1 Gbps average latency (64-byte packets): 2.28 µs, 10 Gbps average latency (64-byte packets): 1.46 µs, 25 Gbps average latency (64-byte packets): 1.9 µs, 50 Gbps average latency (64-byte packets): 3.49 µs, Stacking bandwidth: 200 Gbps, Switching capacity: 448 Gbps, Switching throughput: 334 Mpps
Capacity: IGMP groups: 8000, IPv4 ACL entries (egress): 2000, IPv4 ACL entries (ingress): 5000, IPv4 host table capacity: 32000, IPv4 routes (Multicast): 8000, IPv4 routes (Unicast): 64000, IPv6 ACL entries (egress): 500, IPv6 ACL entries (ingress): 1250, IPv6 host table capacity: 32000, IPv6 routes (Multicast): 8000, IPv6 routes (Unicast): 32000, MAC ACL entries (egress): 2000, MAC ACL entries (ingress): 5000, MLD groups: 4000, Switched virtual interfaces (SVIs): 1000
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9198 bytes
Stackable: Stackable
Features: 802.1x authentication, 8MB packet buffer, ARP support, BOOTP support, Bootstrap Router (BSR) Mechanism, Bridge protocol data unit (BPDU), Cisco Discovery Protocol (CDP), Class of Service (CoS), Deficit Weighted Round Robin (DWRR), Denial of Service (DoS) protection, DHCP support, DiffServ support, Ethernet Virtual Private Network (EVPN), Fan tray, ICMP Router Discovery Protocol (IRDP), IPv6 support, Link Aggregation, LLDP support, LLDP-MED, Management Information Base (MIB), MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Network Timing Protocol (NTP), Port mirroring, Quality of Service (QoS), Rapid Reconfiguration of Spanning Tree (RSTP), sFlow, SNMP trap, Strict Priority (SP), Syslog support, Tagged VLAN, Trusted Platform Module (TPM), Type of Service (ToS), Uni-Directional Link Detection (UDLD), Virtual Extensible LAN (VXLAN), Virtual Route Redundancy Protocol (VRRP) support, Virtual Routing and Forwarding (VRF), VLAN support
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 50 Gigabit Ethernet SFP56
Interface Provided: 1 x console (USB) Type C, 1 x USB Type A, 24 x 1000Base-T RJ-45 PoE+ - 30 W, 4 x 50Gbit LAN SFP56
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Frequency: 50 - 60 hertz
Power Provided: 900 watt
Power Supplies Installed: 1
Memory and Processor
Processor Brand: ARM
Processor Type: Cortex-A72
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 8 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 15 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 15 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front to back airflow
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 12.9 inch
Weight: 10.91 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3bt, IEEE 802.3by, IEEE 802.3bz, IEEE 802.3cc, IEEE 802.3cd, ITU-T G.8032, ITU-T Y.1344
Compliant Standards: CAN/CSA C22.2 No. 60950-1-07, CISPR 22 Class A, CISPR 24, CISPR 24:2010, CISPR 32 Class A, CISPR 35, EN 55022:2010, EN 55024:2010, EN 55024:2010 Class A, EN 55032:2012 Class A, EN 55035:2017, EN 60825-1:2007, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, EN 61000-3-2, EN 61000-3-2:2014, EN 61000-3-3, EN 61000-3-3:2013, FCC Part 15 A, ICES-003 Class A, IEC 60825-1:2007 Class 1, IEC 60950-1:2005, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, RoHS, UL 60950-1 Second Edition, VCCI Class A, WEEE
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
