Product Information

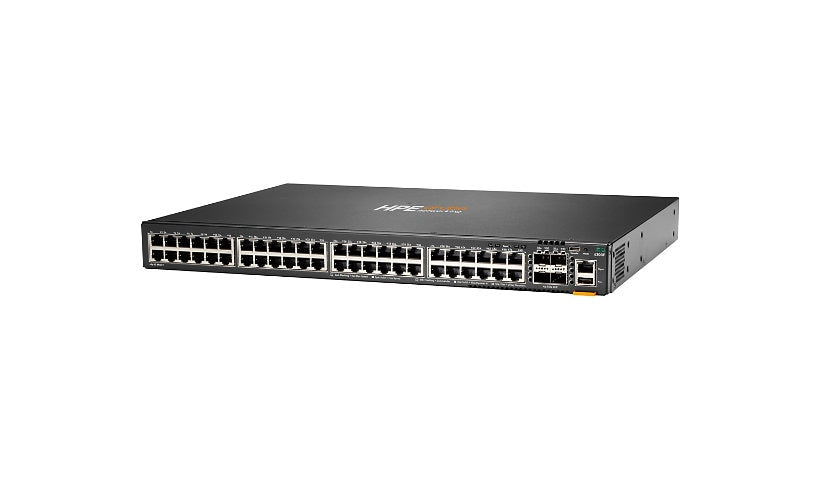

HPE's Aruba Networking CX 6300F (JL667A) is a stackable Layer 3 switch with 48 Gigabit PoE+ ports and four 1/10/25/50G SFP56 ports for uplink or stacking. It offers 496 Gbps of switching capacity and 200 Gbps of VSF stacking bandwidth, with front and side to back airflow.
Key Features
- 48 x 10/100/1000 RJ-45 PoE+ ports
- 4 x 1/10/25/50G SFP56 uplink/stacking ports
- 496 Gbps switching, 369 Mpps
- VSF stacking, 200 Gbps
- 8 GB RAM, 32 GB flash
- Front and side to back airflow
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: 6300F
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Country: United States
Localization: English
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTPS, RMON, SFTP, SNMP 2c, SNMP 3, SSH, Telnet, TFTP, XRMON
Routing Protocol: BGP-4, Bidirectional Forwarding Detection (BFD), ECMP, EGP, IGMP, IGMPv2, IGMPv3, MLD, MSDP, OSPFv2, OSPFv3, Static IPv6 routing, VRRP
Authentication Method: RADIUS, Secure Shell (SSH), TACACS+
Performance: Latency (1 Gbps): 2.28 µs, Latency (10 Gbps): 1.46 µs, Latency (25 Gbps): 1.9 µs, Latency (50 Gbps): 3.49 µs, Stacking bandwidth: 200 Gbps, Switching capacity: 496 Gbps, Throughput: 369 Mpps
Capacity: IGMP groups: 8000, IPv4 ACL entries (egress): 2000, IPv4 ACL entries (ingress): 5000, IPv4 host table capacity: 32000, IPv4 routes (Multicast): 8000, IPv4 routes (Unicast): 64000, IPv6 ACL entries (egress): 500, IPv6 ACL entries (ingress): 1250, IPv6 host table capacity: 32000, IPv6 routes (Multicast): 8000, IPv6 routes (Unicast): 32000, MAC ACL entries (egress): 2000, MAC ACL entries (ingress): 5000, MLD groups: 4000, Switched virtual interfaces (SVIs): 1000
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9198 bytes
Stackable: Stackable
Features: Access Control List (ACL) support, ARP support, Aruba Virtual Switching Framework (VSF), Auto-uplink (auto MDI/MDI-X), Bridge protocol data unit (BPDU), Broadcast storm protection, Class of Service (CoS), Deficit Weighted Round Robin (DWRR), DHCP protection, DHCP support, Dual firmware images, Dynamic IPv6 lockdown, High Availability, IGMP snooping, IP multicast, IPv4 and IPv6 dual stack, Jumbo Frames support, LLDP support, Management Information Base (MIB), Microsoft Network Load Balancer (NLB), MLD snooping, Multicast Storm Protection, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), ND snooping, Network Timing Protocol (NTP), Packet storm protection, Per-VLAN Spanning Tree (PVST), Protocol Independent Multicast (PIM), Quality of Service (QoS), RA guard, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Reconfiguration of Spanning Tree (RSTP), Strict Priority (SP), Syslog support, Type of Service (ToS), Uni-Directional Link Detection (UDLD), Unicast Storm protection, Virtual Extensible LAN (VXLAN), VLAN support, VLAN Tagging, Zero-touch provisioning (ZTP)
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000
Ports (2nd) Quantity: 4
Ports Type (2nd): 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)
Interface Provided: 1 x management, 1 x USB Type A, 1 x USB-C console, 4 x 1Gbit/10Gbit/25Gbit/50Gbit SFP56, 48 x 10/100/1000 Base-T RJ-45 PoE+
Memory and Processor
Processor Brand: ARM
Processor Type: Cortex-A72
Processors Installed: 1
Clock Speed: 1.78 GHZ
RAM Installed: 8 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 15 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 15 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front and side to back
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 12.9 inch
Weight: 9.83 lbs
Certifications and Listing
Compliant Standards: CAN/CSA C22.2 No. 60950-1-07, CISPR 22 Class A, CISPR 24:2010, CISPR 32 Class A, CISPR 35, EN 50581:2012, EN 55022:2010, EN 55024:2010 Class A, EN 55032:2012 Class A, EN 55035:2017, EN 60825-1:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 61000-3-2, EN 61000-3-2:2014, EN 61000-3-3, EN 61000-3-3:2013, FCC Class A certified, FCC Part 15, ICES-003 Class A, IEC 60825-1:2007 Class 1, IEC 60950-1:2005, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, RoHS, UL/CSA60950-1 (2nd Edition), VCCI Class A, WEEE
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3ae
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
