Product Information

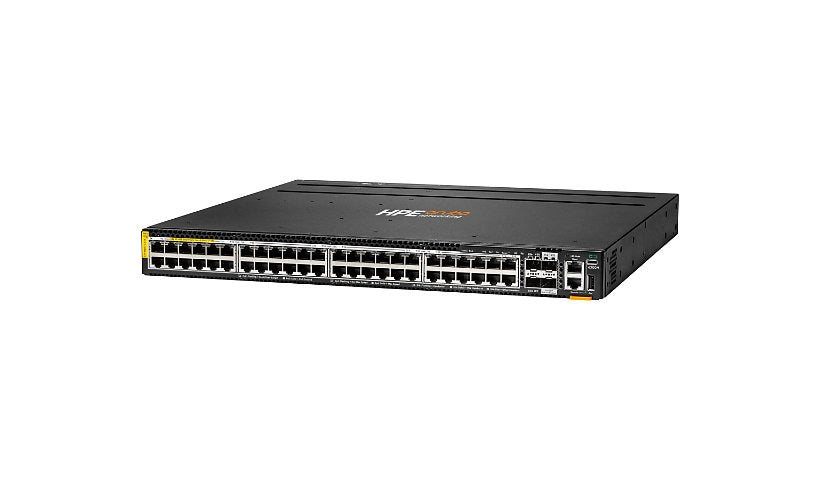

HPE's Aruba Networking CX 6300M (S0G00A) is a stackable Layer 3 switch with 48 Gigabit RJ-45 ports and four 1/10/25/50G SFP56 ports for uplink or stacking. It offers 496 Gbps of switching capacity, stacks up to 10 units over distances up to 10 km and is TAA compliant, with one hot-plug power supply installed.
Key Features
- 48 x 10/100/1000 RJ-45 ports
- 4 x 1/10/25/50G SFP56 uplink/stacking ports
- 496 Gbps switching
- Stack up to 10, 10 km distance
- 1 hot-plug power supply, 1+1 optional
- TAA compliant
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba Networking
Model: 6300M 48p 10M/100M/1G 4p SFP56 50G TAA Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black, Silver
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTPS, RMON, SFTP, SNMP 2c, SNMP 3, SSH, Telnet, TFTP, XRMON
Routing Protocol: BGP-4, Bidirectional Forwarding Detection (BFD), ECMP, EGP, IGMP, IGMPv2, IGMPv3, MLD, MSDP, OSPFv2, OSPFv3, Static IPv6 routing, VRRP
Authentication Method: RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Performance: Latency (1 Gbps): 2.28 µs, Latency (10 Gbps): 1.46 µs, Latency (25 Gbps): 1.9 µs, Latency (50 Gbps): 3.49 µs, Stacking bandwidth (full-duplex): 400 Gbps, Stacking bandwidth: 200 Gbps, Switching capacity: 496 Gbps, Throughput: 369 Mpps
Capacity: IGMP groups: 8192, IPv4 ACL entries (egress): 8192, IPv4 ACL entries (ingress): 20480, IPv4 host table capacity: 49152, IPv4 routes (Multicast): 8192, IPv4 routes (Unicast): 61000, IPv6 ACL entries (egress): 2048, IPv6 ACL entries (ingress): 5120, IPv6 host table capacity: 49152, IPv6 routes (Multicast): 8192, IPv6 routes (Unicast): 61000, MAC ACL entries (egress): 8192, MAC ACL entries (ingress): 20480, MLD groups: 8192, Switched virtual interfaces (SVIs): 1024
MAC Address Table Size: 32768 entries
Jumbo Frame Support: 9198 bytes
Stackable: Stackable
Features: Access Control List (ACL) support, ARP support, Aruba Virtual Switching Framework (VSF), Auto-uplink (auto MDI/MDI-X), Bridge protocol data unit (BPDU), Broadcast storm protection, Class of Service (CoS), Deficit Weighted Round Robin (DWRR), DHCP protection, DHCP support, Dual firmware images, Dynamic IPv6 lockdown, High Availability, HPE SmartRate, IGMP snooping, IP multicast, IPv4 and IPv6 dual stack, Jumbo Frames support, LLDP support, Management Information Base (MIB), Microsoft Network Load Balancer (NLB), MLD snooping, Multicast Storm Protection, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), ND snooping, Network Timing Protocol (NTP), Packet storm protection, Per-VLAN Spanning Tree (PVST), Protocol Independent Multicast (PIM), Quality of Service (QoS), RA guard, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Reconfiguration of Spanning Tree (RSTP), Strict Priority (SP), Syslog support, Type of Service (ToS), Uni-Directional Link Detection (UDLD), Unicast Storm protection, Virtual Extensible LAN (VXLAN), VLAN support, VLAN Tagging, Zero-touch provisioning (ZTP)
Features: Power-to-port airflow
Max Units In A Stack: 10
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000
Ports (2nd) Quantity: 4
Ports Type (2nd): 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)
Interface Provided: 1 x management RJ-45, 1 x USB Type A host, 1 x USB-C console, 4 x 1Gbit/10Gbit/25Gbit/50Gbit SFP56 uplink/stacking, 48 x 10/100/1000 Base-T RJ-45
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Provided: 250 watt
Power Supplies Installed: 1
Power Supplies Supported: 2
Redundant Power Supply Supported: 1+1 (with optional power supply)
Redundant Power Supply: Optional
Hot-Plug: Hot-plug
Memory and Processor
Processor Brand: ARM
Processor Number: Cortex-A72
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 8 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 GB
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front and side to back
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 15.2 inch
Weight: 12.15 lbs
Included Items
Included Accessories: Fan tray (field replaceable, hotswappable)
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3ae
Compliant Standards: CAN/CSA-C22.2 No. 60950-1-07, CISPR 22 Class A, CISPR 24, CISPR 24:2010, CISPR 32 Class A, CISPR 35, EN 55022:2010 Class A, EN 55024:2010, EN 55032:2012 Class A, EN 55035:2017, EN 60825-1:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 61000-3-2, EN 61000-3-2:2014, EN 61000-3-3, EN 61000-3-3:2013, FCC Part 15, ICES-003 Class A, IEC 60825-1:2007 Class 1, IEC 60950-1:2005, IEC 61000-3-2, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, Laser Class 1, UL 60950-1 Second Edition, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
