Product Information

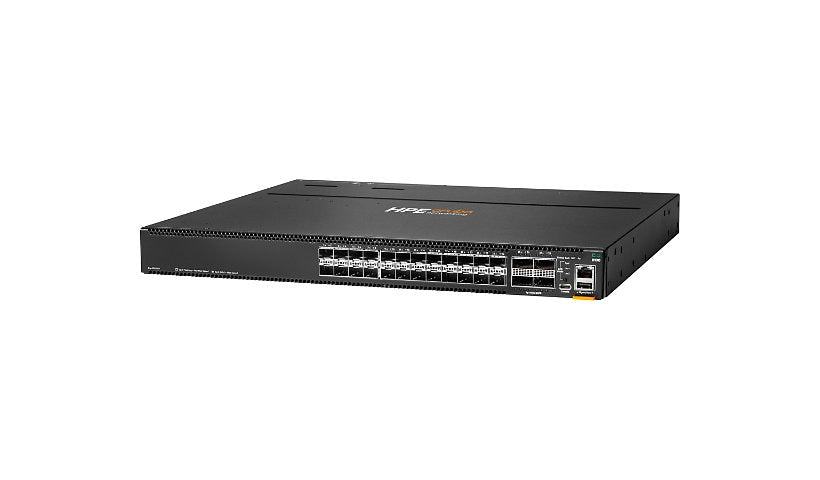

HPE's Aruba Networking CX 8100 (R9W87A) is a Layer 3 aggregation and top of rack switch with 24 1/10G SFP+ ports and four 40/100G QSFP28 uplinks. It offers 1.28 Tbps of switching capacity and VSX, and ships with two hot-plug power supplies, three fan trays and back to front airflow.
Key Features
- 24 x 1/10G SFP/SFP+ ports
- 4 x 40/100G QSFP28/QSFP+ uplinks
- 1.28 Tbps switching capacity
- VSX, BGP, VXLAN
- 2 hot-plug power supplies installed
- 3 fan trays, back to front airflow
Product Information
Brand: Aruba
Manufacturer: Aruba Data Center Switches
Product Line: HPE Aruba Networking CX
Model: 8100 24x10G SFP+ 4x40/100G QSFP28 Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Country: United States
Localization: English
Network and Communication
Advanced Switching: Layer 3
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Remote Management: MIB, SNMP, SNMP 2, SNMP 3
Routing Protocol: BGP-4, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, RIP-2
Authentication Method: RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Performance: Switching capacity: 1.28 Tbps
Capacity: IGMP groups: 4000, IPv4 ACL entries (egress): 2048, IPv4 ACL entries (ingress): 16384, IPv4 routes (Multicast): 4096, IPv6 ACL entries (egress): 512, IPv6 ACL entries (ingress): 4096, IPv6 routes (Multicast): 4096, Link aggregation groups: 54, MAC ACL entries (egress): 2048, MAC ACL entries (ingress): 16384, Maximum number of VLANs: 1024, MLD groups: 4000, Packet buffer size: 32 MB
MAC Address Table Size: 147456 entries
Jumbo Frame Support: 9000 bytes
Features: Address Resolution Protocol, Aruba Virtual Switching Extension (VSX), Bidirectional Forwarding Detection (BFD), Border Gateway Protocol 4 (BGP-4), Bridge protocol data unit (BPDU), Data Center Bridging (DCB), Dynamic VXLAN with BGP-EVPN, Equal-Cost Multipath (ECMP), Ethernet Ring Protection Switching (ERPS), Generic Routing Encapsulation (GRE), Layer 2 switching, Layer 3 routing, Network Timing Protocol (NTP), Open Shortest Path First (OSPF), Policy based routing, Port mirroring, Quality of Service (QoS), Rapid PVST+ (RPVST+), RDMA over Converged Ethernet (RoCE), RDMA over Converged Ethernet (RoCE) v2, sFlow, Unidirectional Link Detection (UDLD)
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 1 Gigabit / 10 Gigabit SFP / SFP+
Ports (2nd) Quantity: 4
Ports Type (2nd): 40 Gigabit QSFP+ / 100 Gigabit QSFP28
Interface Provided: 1 x serial RJ-45, 1 x USB Type A AUX, 1 x USB-C console, 24 x Gigabit / 10Gbit LAN SFP+, 4 x 40/100Gbit LAN QSFP28/QSFP+ uplink
Power
Device Type: Internal power supply
Required Voltage: AC 100-127/200-240 volt
Frequency: 50/60 hertz
Power Provided: 550 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Hot-Plug: Hot-plug
Memory and Processor
Processor Brand: ARM
Processor Number: Cortex-A72
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 16 GB
Flash Memory Installed: 32 GB
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Back to front airflow
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 16 inch
Weight: 17.99 lbs
Included Items
Included Accessories: 2-Post Rack Kit, 3 fan trays
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x, IEEE 802.3z
Compliant Standards: AS/NZS CISPR 32:2015 Class A, CISPR 35, CISPR-32 Class A, CNS 13438 Class A, Directive 2014/35/EU, EMC 2014/30/EU, EN 55032:2015, EN 55035:2017, EN 60825-1:2014, EN 61000-3-2:2019, EN 61000-3-3:2013, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 62368-1:2014 Second Edition, EN 62368-1:2020 3rd Edition, EN 63000:2018, FCC CFR 47 Part 15: 2018 Class A, ICES-003 Class A, IEC 60825-1:2014 Class 1, IEC 61000-3-2:2019, IEC 61000-3-3:2013, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1: 2014, IEC 62368-1:2018, KN32 Class A, Laser Class 1, UL62368-1/CAN/CSA C22.2 No.62368-1, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
