Product Information

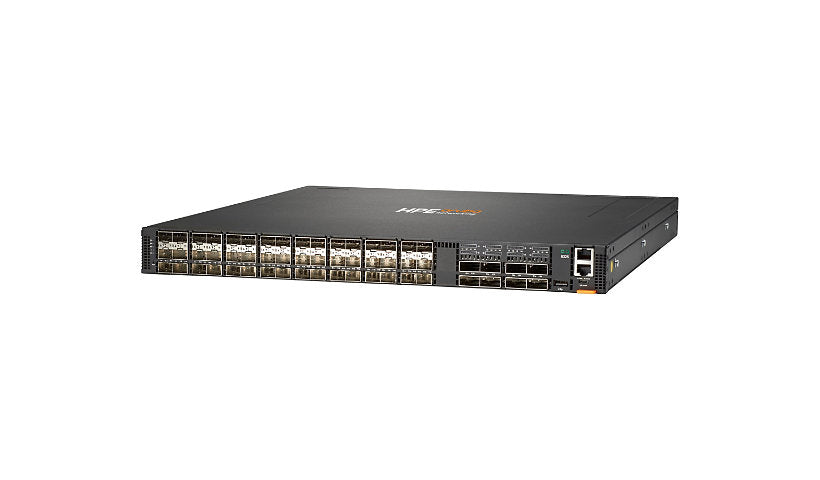

HPE's Aruba Networking CX 8325-48Y8C (JL625A) is a Layer 3 data center and campus core switch with 48 10/25G SFP+/SFP28 ports and eight 40/100G QSFP+/QSFP28 ports. It offers 6.4 Tbps of switching capacity and ships with two hot-plug power supplies, six fans and back to front airflow.
Key Features
- 48 x 10/25G SFP+/SFP28 ports
- 8 x 40/100G QSFP+/QSFP28 ports
- 6.4 Tbps switching capacity
- 2 hot-plug power supplies installed
- 6 fans, back to front airflow
- TAA compliant
Product Information
Brand: Aruba
Manufacturer: Aruba Data Center Switches
Product Line: HPE Aruba
Model: 8325-48Y8C
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Country: United States
Localization: English
Network and Communication
Advanced Switching: Layer 3
Switching Type: 100 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, NTP, RMON, SFTP, SNMP, SNMP 2c, SNMP 3, SSH, TFTP
Routing Protocol: BGP, BGP-4, ECMP, EGP, GRE, IGMP, IGMPv2, IGMPv3, MLD, MSTP, OSPF, OSPFv3, PIM-SM, Policy-based routing (PBR), RSTP, Static IP routing, Static IPv6 routing, STP, VRRP
Authentication Method: RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Encryption: FIPS 140-2
Performance: Switching capacity: 6.4 Tbps, Throughput: 1.905 Mpps
Capacity: Virtual interfaces (VLANs) per port for 802.1q: 4096
Jumbo Frame Support: 9KB
Features: Access Control List (ACL) support, ARP support, DHCP support, Fan tray, IGMP snooping, IPv4 support, IPv6 support, Jumbo Frames support, Link Aggregation Control Protocol (LACP), Loopback, Manageable, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Packet storm protection, Port mirroring, Protocol Independent Multicast (PIM), Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Redundant hot swappable fans, Routing, sFlow, Spanning Tree Protocol (STP) support, Strict Priority (SP), Uni-Directional Link Detection (UDLD), VLAN support, VPN support, VXLAN tunnel endpoints (VTEP) support
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/25 Gigabit SFP+ / SFP28
Ports (2nd) Quantity: 8
Ports Type (2nd): 40/100 Gigabit QSFP+ / QSFP28
Interface Provided: 48 x 10/25Gbit LAN, 8 x 100Gbit/40Gbit LAN
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Provided: 650 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply Supported: N+1
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Back to front airflow
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 21.1 inch
Weight: 22.05 lbs
Included Items
Included Accessories: 6 x fans
Certifications and Listing
Compliant Standards: RoHS, WEEE
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
