Product Information

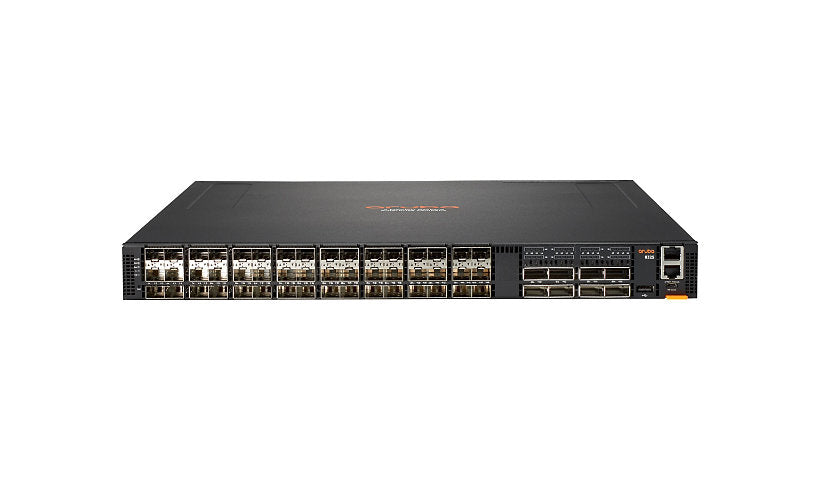

HPE's Aruba Networking CX 8325-48Y8C (JL635A) is a Layer 3 data center and campus core switch with 48 1/10/25G SFP28 ports and eight 40/100G QSFP28 ports. It supports DCB, ERPS and dual flash images, includes a 2-post rack kit and is TAA compliant.
Key Features
- 48 x 1/10/25G SFP/SFP+/SFP28 ports
- 8 x 40/100G QSFP+/QSFP28 ports
- 2000 Mpps forwarding
- DCB, DCBX, ERPS
- 16 GB RAM, 8 GB flash
- 2-post rack kit, TAA compliant
Product Information
Brand: Aruba
Manufacturer: Aruba Data Center Switches
Product Line: HPE Aruba
Model: 8325-48Y8C
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: 25 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, NTP, RMON, SFTP, SNMP, SNMP 2c, SNMP 3, TFTP
Routing Protocol: BGP, BGP-4, Bidirectional Forwarding Detection (BFD), ECMP, EGP, GRE, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MLDv3, MSDP, MSTP, Multiprotocol BGP, OSPF, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIPng, RSTP, Static IPv4 routing, Static IPv6 routing, STP, VRRP
Authentication Method: RADIUS, RADSEC, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Encryption: FIPS 140-2
Performance: Forwarding capacity: 2000 Mpps, Switching capacity: 6.4 Tbps
Capacity: Host table entries (IPv4): 120000, Host table entries (IPv6): 52000, IGMP groups: 4094, IPv4 routes (Multicast): 7000, IPv4 routes (Unicast): 131072, IPv6 routes (Multicast): 7000, IPv6 routes (Unicast): 32732, MAC addresses: 98304, MLD groups: 4094, Virtual interfaces (VLANs) per port for 802.1q: 4040
MAC Address Table Size: 98K entries
Jumbo Frame Support: 9KB
Features: ARP support, Data Center Bridging (DCB), Data Center Bridging Exchange (DCBX) support, Deficit Weighted Round Robin (DWRR), Dual flash Images, Enhanced transmission selection (ETS), Ethernet Ring Protection Switching (ERPS), IP Directed Broadcast, Job scheduler framework, Loopback, Packet storm protection, Priority-Based Flow Control (PFC), Quality of Service (QoS), Rapid PVST+ (RPVST+), REST API interface, sFlow, Unidirectional Link Detection (UDLD), Virtual Switch Extension (VSX), VXLAN ARP/ND Suppression, VXLAN Distributed Anycast Gateway
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 1/10/25 Gigabit SFP / SFP+ / SFP28
Ports (2nd) Quantity: 8
Ports Type (2nd): 40 Gigabit QSFP+ / 100 Gigabit QSFP28
Interface Provided: 1 x console (micro-USB), 1 x management (LAN) RJ-45, 1 x serial RJ-45 management, 48 x 1/10/25Gbit LAN SFP/SFP+/SFP28, 8 x 100Gbit/40Gbit LAN QSFP28/QSFP+
Memory and Processor
Processors Installed: 1
Clock Speed: 2.2 GHZ
RAM Installed: 16 GB
Flash Memory Installed: 8 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% RH (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 95% RH
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Built-in Devices: 64 GB SSD
Dimensions and Weight
Height: 1.7 inch
Width: 17.2 inch
Depth: 21.1 inch
Weight: 22.05 lbs
Included Items
Included Accessories: Rack kit (2 post)
Certifications and Listing
Compliant Standards: CNS 13438, CSA 22.2 No. 60950-1, EN 55024:2010 Class A, EN 55032:2012, EN 60825-1:2007, EN 60825-1:2014, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, FCC CFR47 Part 15, FCC Class A certified, IEC 60825-1:2007 Class 1, IEC 60825-1:2014, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, Laser Class 1, UL 60950-1, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
