Product Information

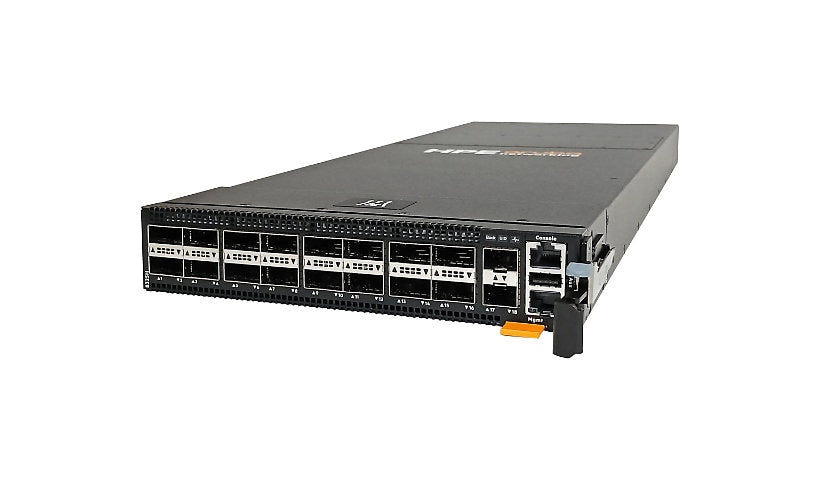

HPE's Aruba Networking CX 8325H (S2T48A) is a half-width Layer 3 switch with 16 40/100G QSFP28 ports for campus core or data center use. It offers 6.4 Tbps of switching capacity, runs AOS-CX and ships with two power supplies, back to front airflow and TAA compliance.
Key Features
- 16 x 40/100G QSFP28 ports
- 6.4 Tbps switching capacity
- Half-width, rack mount
- AOS-CX, 32 GB RAM
- 2 power supplies installed, 1+1
- Back to front airflow, TAA compliant
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba Networking CX
Model: 8325H 16p QSFP28 40G/100G TAA Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Country: United States
Localization: English
Network and Communication
Advanced Switching: Layer 3
Switching Type: 100 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, NTP, RMON, SFTP, SNMP, SNMP 2c, SNMP 3, SSH, TFTP
Routing Protocol: BGP, BGP-4, ECMP, EGP, GRE, IGMP, IGMPv2, IGMPv3, MLD, MSTP, OSPF, OSPFv3, PIM-SM, Policy-based routing (PBR), RSTP, Static IP routing, Static IPv6 routing, STP, VRRP
Authentication Method: RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Performance: Switching capacity: 6.4 Tbps, Throughput: 2000 Mpps
Capacity: Packet buffer size: 32 MB
Jumbo Frame Support: 9KB
Features: Access Control List (ACL) support, Deficit Weighted Round Robin (DWRR), End of Row (EoR), IPv4 support, IPv6 support, Jumbo Frames support, Link Aggregation Control Protocol (LACP), MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Open Shortest Path First (OSPF), Policy based routing, Protocol Independent Multicast (PIM), Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, sFlow, Spanning Tree Protocol (STP) support, Strict Priority (SP), Top-of-Rack (ToR), Uni-Directional Link Detection (UDLD), VXLAN tunnel endpoints (VTEP) support
Connectivity
Ports: 16
Port Quantity: 16
Port Type: 40 Gigabit / 100 Gigabit QSFP28
Interface Provided: 1 x console RJ-45, 1 x console USB Type-C, 1 x management RJ-45, 1 x USB Type A AUX, 16 x 100Gbit/40Gbit LAN QSFP28
Power
Device Type: Internal power supply
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply Supported: 1+1
Redundant Power Supply: Yes
Memory and Processor
Processor Brand: AMD
Processors Installed: 1
RAM Installed: 32 GB
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Back to front airflow
Built-in Devices: 128 GB SSD, 4 x fans
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
