Product Information

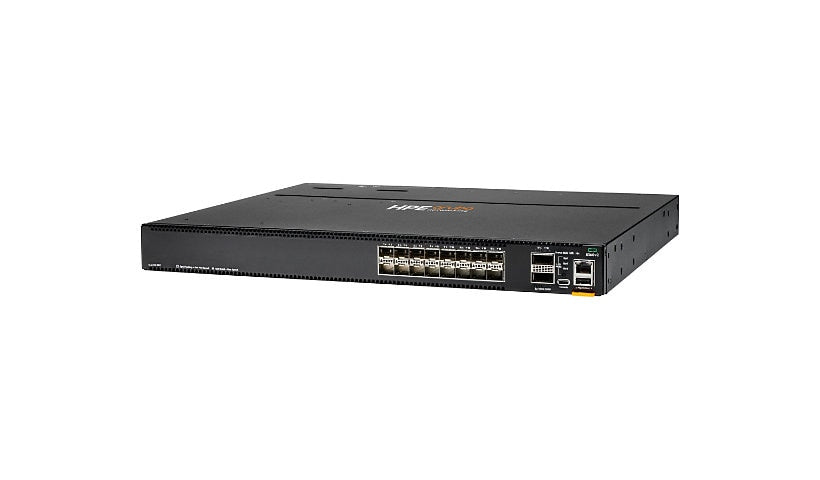

HPE's Aruba Networking CX 8360-16Y2C v2 (JL703C) is a Layer 3 core and aggregation switch with 16 1/10/25G ports and two 40/100G QSFP28 ports. It offers 1.2 Tbps of routing and switching capacity, a 32 MB buffer and VSF, and ships with two hot-plug power supplies, three fan modules and back to front airflow.
Key Features
- 16 x 1/10/25G SFP/SFP+/SFP28 ports
- 2 x 40/100G QSFP28/QSFP+ ports
- 1.2 Tbps routing/switching capacity
- 32 MB packet buffer, VSF, BGP
- 2 hot-plug power supplies, 1+1
- 3 fan modules, back to front airflow
Product Information
Brand: Aruba
Manufacturer: Aruba Data Center Switches
Product Line: HPE Aruba CX
Model: 8360-16Y2C V2
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Country: United States
Localization: English
Network and Communication
Advanced Switching: Layer 3
Switching Type: 25 Gigabit Ethernet
Manageable: Yes
Remote Management: ICMP, RMON, SFTP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH 6, SSH-2, TFTP
Routing Protocol: BGP, BGP-4, BGP-MP, CIDR, ECMP, GRE, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MPLS, MSDP, OSPF, OSPFv2, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-2, RIPng, Static IPv4 routing, Static IPv6 routing, VRRP
Authentication Method: RADIUS, RADSEC, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Performance: Routing/switching capacity: 1.2 Tbps, Switch fabric speed: 1.2 Tbps, Switching capacity: 4.8 Tbps, Throughput: 2.678 Mpps
Capacity: IGMP groups: 7000, IPv4 ACL entries (egress): 8192, IPv4 ACL entries (ingress): 65536, IPv4 host table capacity: 145780, IPv4 routes (Multicast): 7000, IPv4 routes (Unicast): 606977, IPv6 ACL entries (egress): 2048, IPv6 ACL entries (ingress): 16384, IPv6 host table capacity: 145780, IPv6 routes (Multicast): 7000, IPv6 routes (Unicast): 630784, MAC ACL entries (egress): 8192, MAC ACL entries (ingress): 65536, MAC addresses: 212992, MLD groups: 7000, VLANs supported: 4094
Jumbo Frame Support: 9KB
Features: 32MB packet buffer, ARP support, Aruba Virtual Switching Framework (VSF), Bidirectional Forwarding Detection (BFD), BOOTP support, Border Gateway Protocol (BGP), Bridge protocol data unit (BPDU), Cisco IOS IP Service-Level Agreements (IPSLA), Data Center Bridging (DCB), DDoS Protection, Deficit Weighted Round Robin (DWRR), DHCP relay, DHCP server, DHCP support, DNS support, Dual firmware images, Equal-Cost Multipath (ECMP), Ethernet Ring Protection Switching (ERPS), Ethernet Virtual Private Network (EVPN), Explicit Congestion Notification (ECN), Fast leave, Flow control, High Availability, Hot swappable 5 fans, ICMP Router Discovery Protocol (IRDP), IGMP snooping, IP forwarding support, IPv4 and IPv6 dual stack, IPv6 addressing, IPv6 multicasting, IPv6 support, Link Aggregation, Load balancing, Loopback, MACsec support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Neighbor Discovery Protocol (NDP), Network Timing Protocol (NTP), Packet storm protection, Port mirroring, Private VLAN, Quality of Service (QoS), Rapid PVST+ (RPVST+), Rapid Spanning Tree Protocol (RSTP) support, RDMA over Converged Ethernet (RoCE) v2, sFlow, SNMP trap, Spanning Tree Protocol (STP) support, Strict Priority (SP), Syslog support, TCP support, UDP support, Unidirectional Link Detection (UDLD), Virtual Extensible LAN (VXLAN), Virtual Route Redundancy Protocol (VRRP) support, Virtual Switch Extension (VSX), VLAN support
Connectivity
Ports: 16
Port Quantity: 16
Port Type: 1/10/25 Gigabit Ethernet SFP / SFP+ / SFP28
Ports (2nd) Quantity: 2
Ports Type (2nd): 40/100 Gigabit QSFP+ / QSFP28
Interface Provided: 1 x console (USB) Type C, 1 x management (LAN) RJ-45, 1 x serial (console) RJ-45, 1 x USB Type A, 16 x 1/10/25Gbit LAN SFP/SFP+/SFP28, 2 x 40/100Gbit LAN QSFP28/QSFP+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Power Consumption Operational: 325 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply Supported: 1+1
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 16 GB
Flash Memory Installed: 32 GB
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Back to front airflow
Status Indicators: Port transmission speed
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 22 inch
Weight: 17 lbs
Included Items
Included Accessories: 3 x fan modules
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3x, IEEE 802.3z
Compliant Standards: CISPR 24, CISPR 32 Class A, CISPR 35, CNS 13438, CNS 13438 Class A, CSA 22.2 No. 60950-1, EN 50581:2012, EN 55024:2010, EN 55032:2015, EN 55035:2017, EN 60825-1:2014, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 61000-3-2:2014 Class A, EN 61000-3-3:2013, EN 62368-1:2014 Second Edition, FCC CFR47 Part 15 B Class A, ICES-003 Class A, IEC 60825-1:2014, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, IEC 62368-1: 2014, Laser Class 1, RoHS, UL 60950-1, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
