Product Information

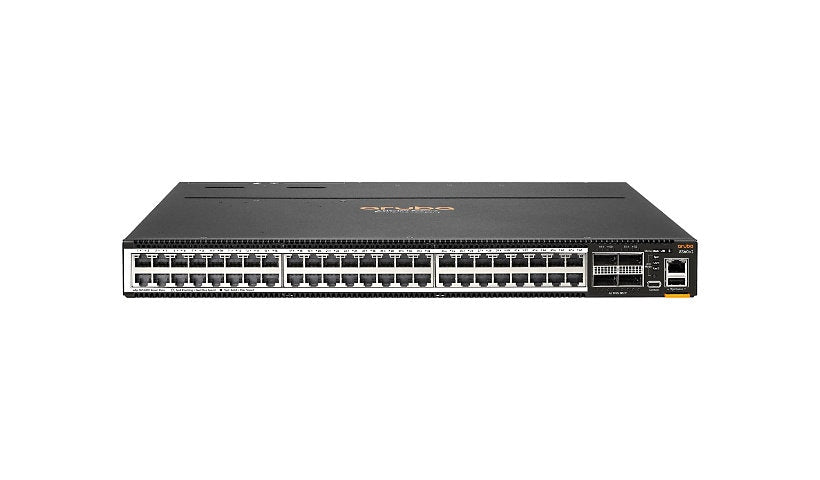

HPE's Aruba Networking CX 8360-48XT4C v2 (JL706C) is a Layer 3 core and aggregation switch with 48 100M/1G/10G RJ-45 ports and four 40/100G QSFP28 ports. It offers 1.76 Tbps of bidirectional switching capacity and ships with two hot-plug power supplies, three fan trays, a 2-post rack kit and front to back airflow.
Key Features
- 48 x 100M/1G/10G RJ-45 ports
- 4 x 40/100G QSFP28/QSFP+ ports
- 1.76 Tbps switching capacity
- 16 GB RAM, 32 GB flash
- 2 hot-plug power supplies installed
- 3 fan trays, front to back airflow
Product Information
Brand: Aruba
Manufacturer: Aruba Data Center Switches
Product Line: HPE Aruba CX
Model: 8360-48XT4C v2
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Country: United States
Localization: English
Network and Communication
Advanced Switching: Layer 3
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, DHCP, NTP, RMON, SFTP, SNMP, TFTP
Routing Protocol: BGP, BGP-4, Bidirectional Forwarding Detection (BFD), IGMP, MLD, OSPF, PIM-SM, Static IPv4 routing, Static IPv6 routing, VRRP
Authentication Method: RADIUS, Secure Shell v.2 (SSH2), TACACS+
Performance: Bidirectional switching capacity: 1.76 Tbps, Forwarding capacity: 1.145 Mpps
Capacity: Host table entries (IPv4): 145780, Host table entries (IPv6): 145780, IGMP groups: 7000, IPv4 ACL entries (egress): 8192, IPv4 ACL entries (ingress): 65536, IPv4 routes (Multicast): 7000, IPv4 routes (Unicast): 606977, IPv6 ACL entries (egress): 2048, IPv6 ACL entries (ingress): 16384, IPv6 routes (Multicast): 7000, IPv6 routes (Unicast): 606977, MAC addresses: 212992, MLD groups: 7000, VLANs supported: 4094
Jumbo Frame Support: 9KB
Features: ARP support, Data Center Bridging (DCB), Dual flash Images, Ethernet Ring Protection Switching (ERPS), Explicit Congestion Notification (ECN), IP Directed Broadcast, Job scheduler framework, Loopback, Multiple Spanning Tree Protocol (MSTP) support, Packet storm protection, Quality of Service (QoS), Rapid PVST+ (RPVST+), Rapid Spanning Tree Protocol (RSTP) support, RDMA over Converged Ethernet (RoCE) v2, REST API interface, sFlow, Unidirectional Link Detection (UDLD), Virtual Routing and Forwarding (VRF), Virtual Switch Extension (VSX), VXLAN ARP/ND Suppression, VXLAN Distributed Anycast Gateway
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 100/1000/10000
Ports (2nd) Quantity: 4
Ports Type (2nd): 40/100 Gigabit QSFP+ / QSFP28
Interface Provided: 1 x console Type C, 1 x management Type A, 1 x serial RJ-45, 4 x 40/100Gbit LAN QSFP28/QSFP+, 48 x 100/1000/10G
Power
Device Type: Internal power supply
Required Voltage: AC 100-127/200-240 volt
Frequency: 50/60 hertz
Power Provided: 550 watt
Power Supplies Installed: 2
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 16 GB
Flash Memory Installed: 32 GB
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front to back airflow
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 16 inch
Weight: 18.85 lbs
Included Items
Included Accessories: 3 fan trays, Rack kit (2 post)
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP)
Compliant Standards: CISPR 24, CISPR 32 Class A, CISPR 35, CNS 13438, CNS 13438 Class A, CSA 22.2 No. 60950-1, cUL No.60950-1 Second Edition, EN 50581:2012, EN 55024:2010, EN 55032:2015, EN 55035:2017, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 61000-3-2:2014 Class A, EN 61000-3-3:2013, EN 62368-1:2014 Second Edition, FCC CFR47 Part 15, FCC Class A certified, ICES-003 Class A, IEC 62368-1: 2014, IEC60950-1:2005, Second edition + Am1:2009 + A2:2013, UL 60950-1 Second Edition, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
