Product Information

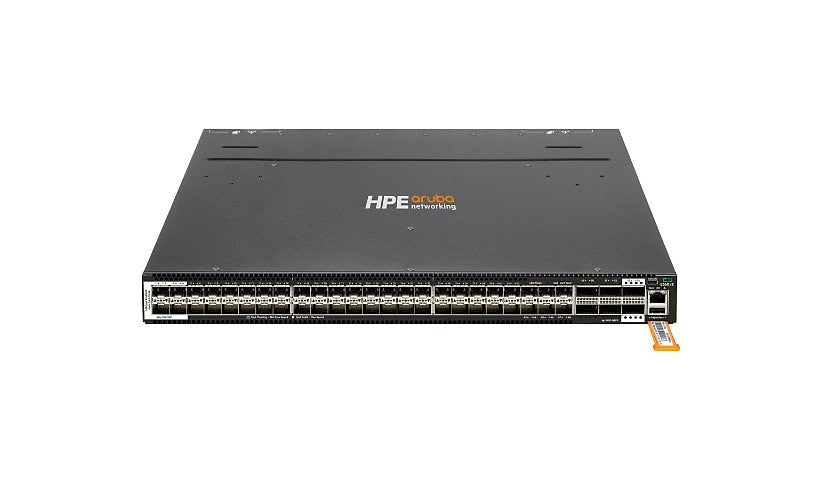

HPE's Aruba Networking CX 8360-48Y6C v2 (JL704C) is a Layer 3 core and aggregation switch with 44 1/10/25G ports, four 10/25G MACsec ports, four 40/100G ports and two 40/100G MACsec ports. It offers 4.8 Tbps of switching capacity and VSF, runs ArubaOS-CX and uses front to back airflow.
Key Features
- 44 x 1/10/25G SFP/SFP+/SFP28 ports
- 4 x 10/25G SFP28 ports with MACsec
- 4 x 40/100G QSFP28 ports
- 2 x 40/100G QSFP28 ports with MACsec
- 4.8 Tbps switching, 32 MB buffer
- ArubaOS-CX, front to back airflow
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba CX
Model: 8360-48Y6C v2
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: 25 Gigabit Ethernet
Manageable: Yes
Remote Management: ICMP, RMON, SFTP, SNMP 1, SNMP 2, SNMP 3, SSH, SSH 6, TFTP
Routing Protocol: BGP, BGP-4, BGP-MP, CIDR, GRE, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MSDP, OSPF, OSPFv2, OSPFv3, PIM-DM, PIM-SM, Policy-based routing (PBR), RIP-2, RIPng, Static IPv6 routing, VRRP
Authentication Method: RADIUS, RADSEC, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Encryption: 128-bit AES, 256-bit AES
Performance: Switching capacity: 2.678 Mpps, Switching capacity: 4.8 Tbps
Capacity: IGMP groups: 7000, IPv4 ACL entries (egress): 8192, IPv4 ACL entries (ingress): 65536, IPv4 host table capacity: 145780, IPv4 routes (Multicast): 7000, IPv4 routes (Unicast): 606977, IPv6 ACL entries (egress): 2048, IPv6 ACL entries (ingress): 16384, IPv6 host table capacity: 145780, IPv6 routes (Multicast): 7000, IPv6 routes (Unicast): 630784, MAC ACL entries (egress): 8192, MAC ACL entries (ingress): 65536, MAC addresses: 212992, MLD groups: 7000, VLANs supported: 4094
Jumbo Frame Support: 9KB
Features: 32MB packet buffer, ARP support, Aruba Virtual Switching Framework (VSF), Bidirectional Forwarding Detection (BFD), BOOTP support, Border Gateway Protocol (BGP), Bridge protocol data unit (BPDU), Cisco IOS IP Service-Level Agreements (IPSLA), Data Center Bridging (DCB), DDoS Protection, Deficit Weighted Round Robin (DWRR), DHCP relay, DHCP server, DHCP support, DNS support, Dual firmware images, Equal-Cost Multipath (ECMP), Ethernet Ring Protection Switching (ERPS), Ethernet Virtual Private Network (EVPN), Explicit Congestion Notification (ECN), Fast leave, Flow control, High Availability, Hot swappable 5 fans, ICMP Router Discovery Protocol (IRDP), IGMP snooping, IP forwarding support, IPv4 and IPv6 dual stack, IPv6 addressing, IPv6 multicasting, IPv6 support, Link Aggregation, Load balancing, Loopback, MACsec support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Neighbor Discovery Protocol (NDP), Network Timing Protocol (NTP), Packet storm protection, Port mirroring, Private VLAN, Quality of Service (QoS), Rapid PVST+ (RPVST+), Rapid Spanning Tree Protocol (RSTP) support, RDMA over Converged Ethernet (RoCE) v2, sFlow, SNMP trap, Spanning Tree Protocol (STP) support, Strict Priority (SP), Syslog support, TCP support, UDP support, Unidirectional Link Detection (UDLD), Virtual Extensible LAN (VXLAN), Virtual Route Redundancy Protocol (VRRP) support, Virtual Switch Extension (VSX), VLAN support
Software Type: ArubaOS-CX
Connectivity
Ports: 48
Port Quantity: 44
Port Type: 1/10/25 Gigabit SFP / SFP+ / SFP28
Ports (2nd) Quantity: 4
Ports Type (2nd): 10 Gigabit / 25 Gigabit SFP+ / SFP28
Ports (3rd) Quantity: 4
Ports (4th) Quantity: 2
Ports (4th) Type: 40/100 Gigabit QSFP+ / QSFP28
Interface Provided: 1 x console (USB) Type C, 1 x management (LAN) RJ-45, 1 x serial (console) RJ-45, 1 x USB Type A, 2 x 40/100Gbit LAN QSFP28 with MACsec, 4 x 10/25Gbit LAN SFP28 with MACsec, 4 x 40/100Gbit LAN QSFP28, 44 x 1/10/25Gbit LAN SFP28
QSFP Slots: 40/100 Gigabit QSFP+ / QSFP28
Power
Device Type: Internal power supply
Memory and Processor
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 16 GB
Flash Memory Installed: 32 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 15 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 15 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front to back airflow
Status Indicators: Port transmission speed
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 22 inch
Weight: 23.66 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3x, IEEE 802.3z
