Product Information

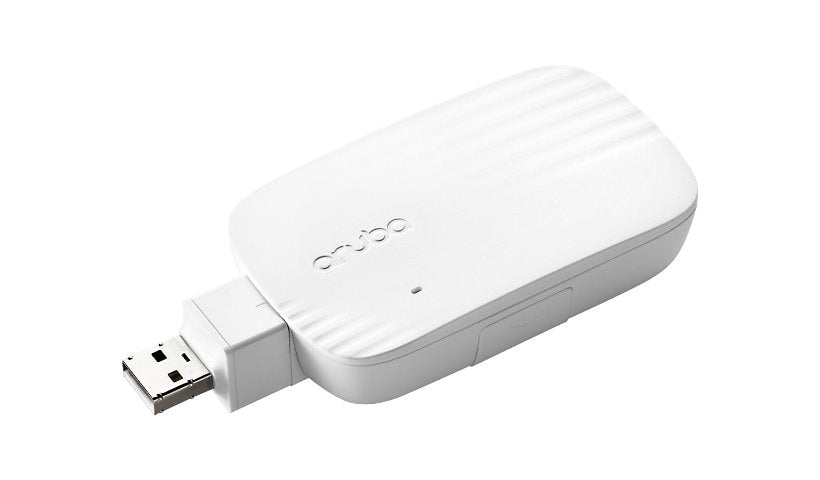

The HPE Aruba USB LTE Modem (R8F34A) adds 4G LTE cellular access to compatible HPE Aruba devices through a USB 2.0 Type A plug that swivels 270° horizontally and 90° vertically. It has two antennas and draws about 3.5 W. This is a cellular modem, not an access point.
Key Features
- 4G LTE USB modem
- USB 2.0 Type A, swivel plug
- 2 antennas
- About 3.5 W
- For listed HPE Aruba P/Ns
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: USB LTE Modem
Product Type: Wireless cellular modem
Compatibility Specs: P/N: S6Q68A, S6Q76A, S6Q77A, S6Q78A, S6Q79A, S6Q82A, S6Q85A
Packaged Quantity: 1
Color Category: White
Network and Communication
High-Speed Communication Standard: LTE
Bus: USB
Modem Transmission Data Rate: 480 MBps
Cellular Data Connectivity Technology: FDD LTE, TDD LTE, WCDMA
Cellular Generation: 4G
Cellular Band: LTE B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21/B25/B26/B28/B29/B30/B32/B38/B39/B40/B41/B66 / WCDMA B1/B2/B3/B4/B5/B8/B9/B19
SIM Card Supported: Micro-SIM
SIM Slots: 1
Ethernet Technology: Wireless
Antennas: 2
Antenna Form Factor: Internal
Features: 270° horizontal swivel / 90° vertical swivel
Connectivity
Interface Provided: 1 x USB 2.0 - Type A
Power
Power Consumption Operational: 3.5 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: External
Built-in Devices: Beidou, GPS / GLONASS / Galileo, QZSS
Dimensions and Weight
Height: 0.8 inch
Width: 2 inch
Depth: 3.9 inch
Weight: 2.75 ounce
Certifications and Listing
Compliant Standards: EN 60950, EN 62368-1, IEC 60950, IEC 62368-1, Plug and Play, UL 60950
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: Yes
