Product Information

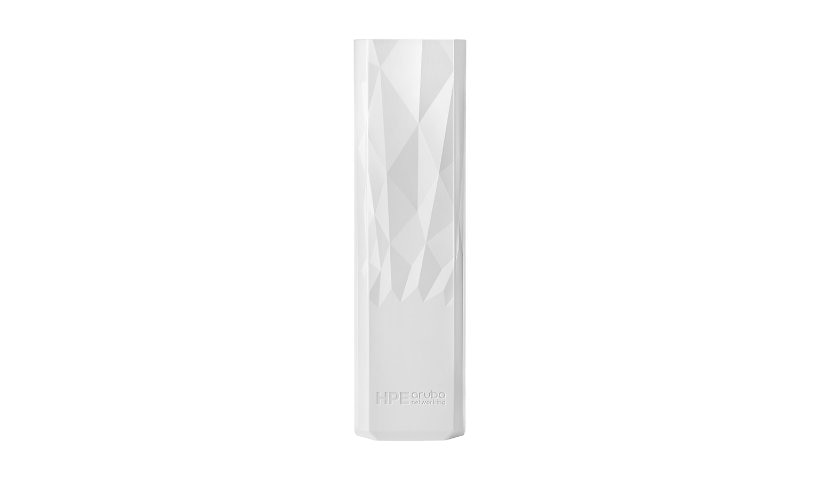

The HPE Aruba UXI S4W53A is a user experience sensor that tests Wi-Fi 7, wired Ethernet and LTE cellular service and reports results to the UXI dashboard. It has a Gigabit port and draws about 12 W. This is a network monitoring sensor, not an access point.
Key Features
- Wi-Fi 7 test radio
- LTE cellular
- Gigabit Ethernet
- About 12 W
- Cloud dashboard
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE Aruba Networking User Experience Insight
Model: Wi-Fi 7 Ethernet Cellular Sensor
Product Type: Wireless network management device
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Bluetooth 5.4 LE, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, LTE
Encryption: EAP-LEAP, EAP-PEAP, EAP-TTLS, OWE, WPA2-Enterprise, WPA2-PSK, WPA2-SAE, WPA3-Enterprise
Wireless LAN: 802.11a/b/g/n/ac/ax/be, Bluetooth 5.4 LE, LTE
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Features: Bluetooth (BLE) clients support, Low Power Indoor (LPI) support, Multi-Link Operation (MLO), Off-band monitoring, QOS enhanced basic service set (QBSS), Security slot (Kensington security lock compatible), Standard Power (SP) support
Edition: X-Series
Connectivity
Interface Provided: 1 x 10/100/1000Base-T - RJ-45
Power Over Ethernet (PoE): PoE
Power
Device Type: External power adapter
Power Consumption Operational: 12 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 93% (non-condensing)
MTBF: 1.389.538 Hours
Physical Characteristics
Form Factor: Wall Mountable
Dimensions and Weight
Height: 11.8 inch
Width: 3.3 inch
Depth: 2 inch
Weight: 23.67 ounce
Included Items
Included Accessories: Mounting bracket, Mounting screws, Rubber feet
Certifications and Listing
Compliant Standards: EN 62368, FCC-ID, IEC 62368, RED 2014/53/EU, UL 2043, UL 62368
Compliant Standards: IEEE 802.3af
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - replacement - 1 year, Limited warranty - shipping - 10 days, Technical support - software application support - 1 year
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
