Product Information

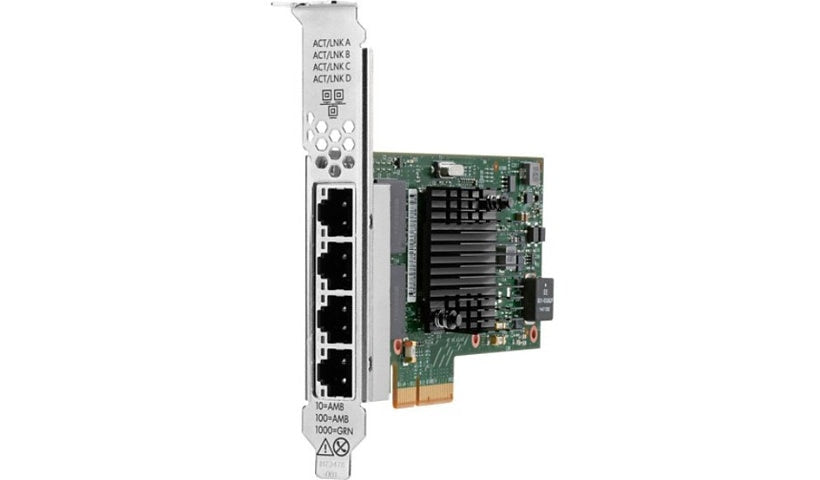

This HPE Broadcom BCM5719 adapter (P51178-B21) is a quad port Gigabit Ethernet card for PCIe 2.0 x4 slots in HPE Gen10 Plus servers. Its four RJ-45 ports run at 10, 100 or 1000 Mbps, and it uses firmware root of trust to check digitally signed firmware. It supports PXE and UEFI boot, IPv4 and IPv6, RSS, TSO and flow control, drawing about 5.78 W. Listed systems include the Apollo 4200 Gen10 Plus and ProLiant DL20, DL325, DL360, DL365, DL380, DL385 and ML30 Gen10 Plus.
Key Features
- Broadcom BCM5719 controller
- 4 x 1GbE RJ-45 ports
- PCIe 2.0 x4
- Firmware root of trust
- PXE and UEFI boot
- For HPE Gen10 Plus servers
Product Information
Brand: Broadcom
Manufacturer: Hewlett-Packard
Product Line: Broadcom
Model: BCM5719
Product Type: Network adapter
Compatibility Specs: HPE Apollo 4200 Gen10 Plus ¦ HPE ProLiant DL20 Gen10 Plus, DL325 Gen10 Plus, DL325 Gen10 Plus V2, DL360 Gen10 Plus, DL365 Gen10 Plus, DL380 Gen10 Plus, DL385 Gen10 Plus, ML30 Gen10 Plus
Packaged Quantity: 1
Color Category: Black, Green, Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Cable Type: Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T
Data Transfer Rate: 1 GBps
Features: ACPI support, Flow control, IPv4 support, IPv6 support, Legacy BIOS PXE Boot, Limited root of trust, PXE support, Receive Side Scaling (RSS), TCP Segmentation Offload (TSO), UEFI PXE Boot, UEFI support
Connectivity
Port Quantity: 4
Interface Provided: 4 x Ethernet 1000 - RJ-45
Network & Adapter Ports: 10/100/1000
Host Interface: PCI Express 2.0 x4
Power
Power Consumption Operational: 5.78 watt
Memory and Processor
Processor Brand: Broadcom
Processor Number: BCM5719
Processors Installed: 1
Physical Characteristics
Form Factor: Plug-In Card
