Product Information

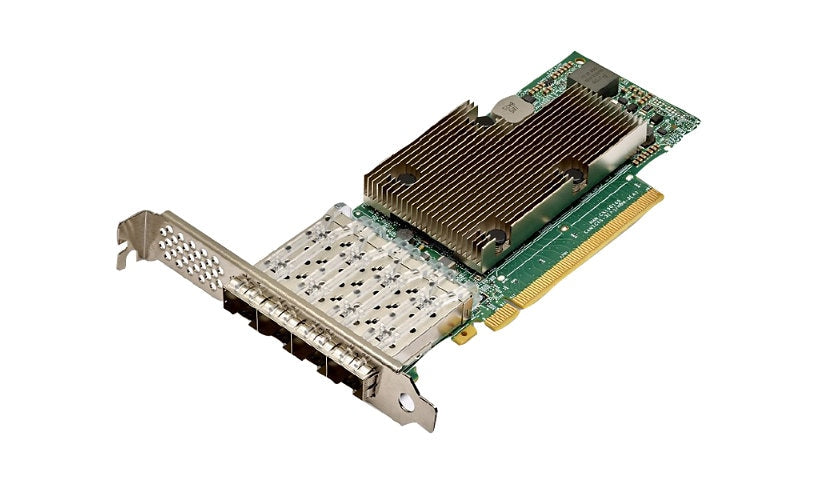

This HPE Broadcom BCM57504 adapter (P26264-B21) is a quad port SFP28 network card for HPE Gen10 Plus servers. Each port runs at 10 or 25 Gb Ethernet over a PCIe 4.0 x16 interface, with RoCE v2, SR-IOV, NPAR, DPDK and tunnel offloads. Security features include firmware root of trust, secure boot and sanitization, and it draws about 15.2 W. Listed systems include the Apollo 4200 Gen10 Plus and ProLiant DL325, DL345, DL360, DL365, DL380 and DL385 Gen10 Plus.
Key Features
- Broadcom BCM57504 controller
- 4 x 10/25GbE SFP28 ports
- PCIe 4.0 x16
- RoCE v2 and SR-IOV
- Firmware root of trust
- For HPE Gen10 Plus servers
Product Information
Brand: Broadcom
Manufacturer: Hewlett-Packard
Product Line: Broadcom
Model: BCM57504
Product Type: Network adapter
Compatibility Specs: HPE Apollo 4200 Gen10 Plus ¦ HPE Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10 Plus ¦ HPE ProLiant DL325 Gen10 Plus, DL345 Gen10 Plus, DL360 Gen10 Plus, DL365 Gen10 Plus, DL380 Gen10 Plus, DL385 Gen10 Plus
Packaged Quantity: 1
Color Category: Black, Green, Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 25 Gigabit Ethernet, RDMA over Converged Ethernet (RoCE v2)
Data Transfer Rate: 25 GBps
Features: Audit logs, Data Plane Development Kit (DPDK), Firmware root of trust, GENEVE support, IPv4 support, IPv6 support, Legacy BIOS PXE Boot, Mware NetQueue and Microsoft Virtual Machine Queue (VMQ), Network Partitioning (NPAR), Network Virtualization using Generic Routing Encapsulation (NVGRE), Receive Side Scaling (RSS), Sanitization, Secure Boot, Single Root I/O Virtualization (SR-IOV), Tunnel offload, UEFI PXE Boot, UEFI support, Virtual Extensible LAN (VXLAN)
Connectivity
PCI Specification Revision: PCIe 4.0
Port Quantity: 4
Interface Provided: 4 x 10Gb Ethernet/25Gb Ethernet - SFP28
Network & Adapter Ports: 10Gb Ethernet / 25Gb Ethernet SFP28
Host Interface: PCI Express 4.0 x16
Power
Power Consumption Operational: 15.2 watt
Memory and Processor
Processor Brand: Broadcom
Processor Number: BCM57504
Processors Installed: 1
Physical Characteristics
Form Factor: Plug-In Card
Warranty
Service Activation: No
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
