Product Information

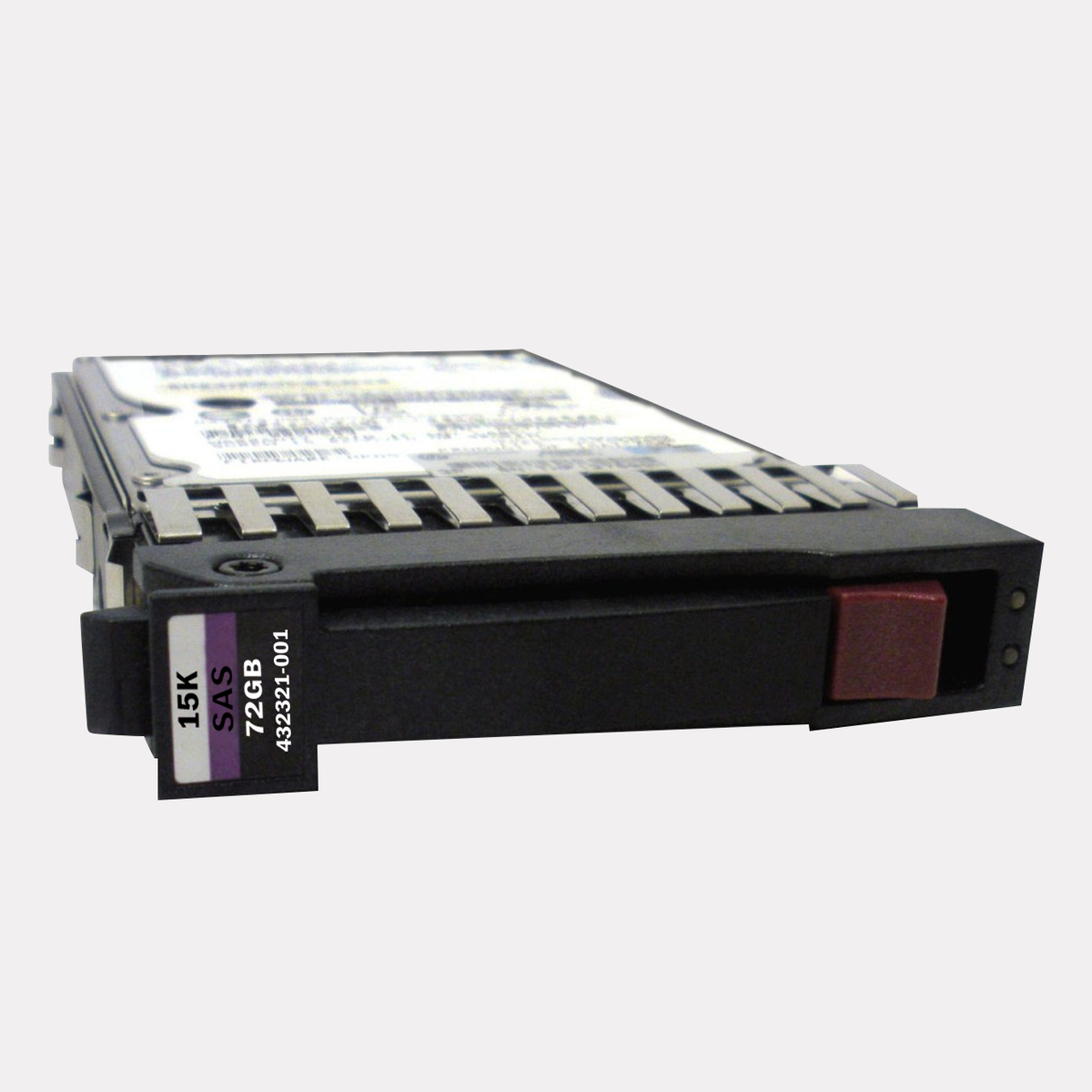

The HPE DG072ABAB3 is a 72GB enterprise hard drive spinning at 15,000 RPM. It comes in the 2.5 inch small form factor with a single port 3Gb SAS interface, for HPE ProLiant Gen2 through Gen7 servers.
Key Features
- 72GB capacity at 15K RPM
- Single port SAS 3Gb/s
- 2.5 inch SFF
- Enterprise class
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Specifications
Brand: HPE
MPN: DG072ABAB3
Option Part Number: 431935-B21
Spare Part Number: 432321-001
Model Number: DG072ABAB3
Assembly Number: 431954-002
HPE GPN: 418373-004
General
Device Type: Hard Drive - Hot-Swap
Capacity: 72 GB
Interface: SAS 3 Gbps
Form Factor: 2.5 inch SFF
Plug Type: Hot Plug
Byte per Sector: 512
Drive Technology (Fill): Air
Carrier Type: Standard Carrier
Features: Single Port
Workload Type: Enterprise
Bundled with: HPE Standard Carrier
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Performance
Spindle Speed: 15000 RPM
External Data Transfer Rate: 3 Gb/sec
Average Seek Time: 3.00 ms
Max Seek Time: 7.00 ms
Track-to-Track Seek Time: 0.20 ms
Expansion & Connectivity
Interfaces: 1 x SAS 3 Gb/s
Compatible Bays: 2.5" SFF
Environmental Parameters
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Compatible Systems
- HPE ProLiant BL Series: BL25p Gen2 (2.5inch), BL45p Gen2 (2.5inch), BL460c Gen6 (2.5inch), BL465c (2.5inch), BL465c Gen5 (2.5inch), BL465c Gen6 (2.5inch), BL680c Gen5 (2.5inch), BL685c (2.5inch), BL685c Gen5 (2.5inch), BL685c Gen6 (2.5inch)
- HPE ProLiant DL Series: DL160 Gen6 (2.5inch), DL160se Gen6 (2.5inch), DL320 Gen6 (2.5inch), DL360 Gen5 (2.5inch), DL360 Gen5 High Efficiency (2.5inch), DL360 Gen6 (2.5inch), DL360 Gen6 Base (2.5inch), DL360 Gen6 Efficiency (2.5inch), DL360 Gen6 Entry (2.5inch), DL360 Gen6 Performance (2.5inch), DL360 Gen7 Base (2.5inch), DL360 Gen7 Entry (2.5inch), DL360 Gen7 Performance (2.5inch), DL365 (2.5inch), DL365 Base (2.5inch), DL365 Entry (2.5inch), DL365 Gen5 (2.5inch), DL365 Gen5 Base (2.5inch), DL365 Gen5 Entry (2.5inch), DL365 Gen5 High Efficiency (2.5inch), DL365 Gen5 Performance (2.5inch), DL365 Performance (2.5inch), DL370 Gen6 (2.5inch), DL370 Gen6 Base (2.5inch), DL370 Gen6 Performance (2.5inch), DL380 Gen5 High Efficiency (2.5inch), DL380 Gen6 (2.5inch), DL380 Gen6 Base (2.5inch), DL380 Gen6 Entry (2.5inch), DL380 Gen6 High Efficiency (2.5inch), DL380 Gen6 Performance (2.5inch), DL380 Gen6 Special Rack Server (2.5inch), DL380 Gen7 Base (2.5inch), DL380 Gen7 Entry (2.5inch), DL380 Gen7 Performance (2.5inch), DL385 Gen2 (2.5inch), DL385 Gen2 Base (2.5inch), DL385 Gen2 Entry (2.5inch), DL385 Gen2 High Performance (2.5inch), DL385 Gen5 (2.5inch), DL385 Gen5 Base (2.5inch), DL385 Gen5 Entry (2.5inch), DL385 Gen5 Performance (2.5inch), DL385 Gen5p Base (2.5inch), DL385 Gen5p High Performance (2.5inch), DL385 Gen6 (2.5inch), DL385 Gen6 Base (2.5inch), DL385 Gen6 Entry (2.5inch), DL385 Gen6 High Performance (2.5inch), DL385 Gen7 (2.5inch), DL385 Gen7 Base (2.5inch), DL385 Gen7 Entry (2.5inch), DL385 Gen7 Performance (2.5inch), DL580 Gen5 (2.5inch), DL580 Gen5 Base (2.5inch), DL580 Gen5 High Performance (2.5inch), DL585 Gen5 (2.5inch), DL585 Gen6 (2.5inch), DL585 Gen6 Base (2.5inch), DL785 Gen5 (2.5inch), DL785 Gen6 (2.5inch), DL785 Gen6 Base (2.5inch), DL785 Gen6 Performance (2.5inch)
- HPE ProLiant ML Series: ML350 Gen5 Base (2.5inch), ML350 Gen6 (2.5inch), ML350 Gen6 Base (2.5inch), ML350 Gen6 Performance (2.5inch), ML370 Gen5 (2.5inch), ML370 Gen5 Base (2.5inch), ML370 Gen5 Entry (2.5inch), ML370 Gen5 High Performance (2.5inch), ML370 Gen6 (2.5inch), ML370 Gen6 Base (2.5inch), ML370 Gen6 Entry (2.5inch), WS460c Gen6 Workstation (2.5inch)
Not sure this drive fits your system? Send us your server or storage array model and the DatorPro team will confirm compatibility before you order.
