Product Information

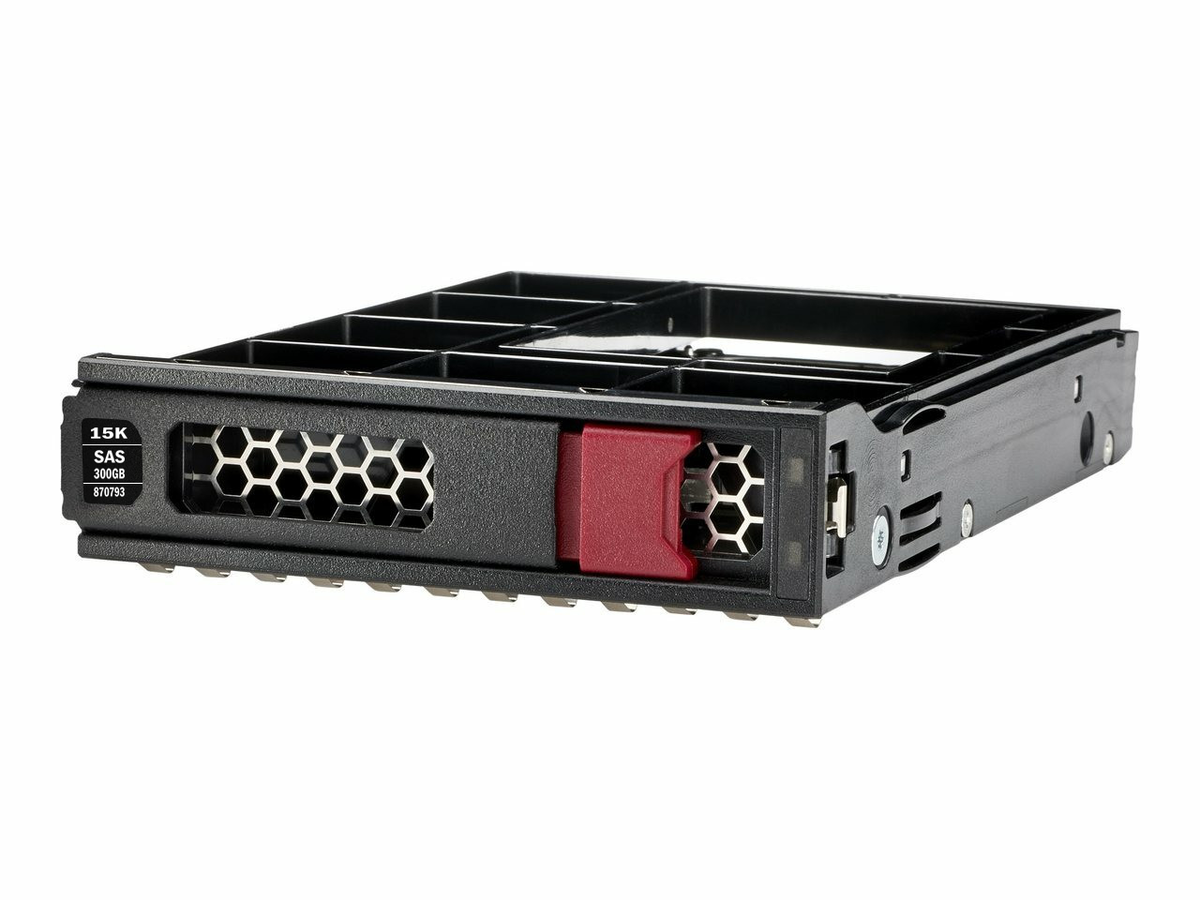

The HPE EH000300JWCPK-LPC gives you 300GB of storage in an enterprise hard drive running at 15,000 RPM. It uses the 3.5 inch large form factor (LFF) with a 12Gb SAS interface. The drive comes with HPE digitally signed firmware and an HPE Low Profile Converter (LPC). It is intended for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- 300GB capacity at 15K RPM
- SAS 12Gb/s interface
- 3.5 inch LFF
- Digitally signed firmware
- Low Profile Converter carrier
- Enterprise class
Condition: New Sealed Spare
Warranty: Up to a 1-Year Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: EH000300JWCPK-LPC
Option Part Number: 870755-B21
Spare Part Number: 870793-001
Model Number: EH000300JWCPK
Assembly Number: 867254-001
HPE GPN: 868774-004
General
Device Type: Hard Drive - Hot-Swap
Capacity: 300 GB
Form Factor: 3.5 inch LFF Low Profile
Interface: SAS-12Gbps
Bytes per Sector: 512
Workload Type: Enterprise
Carrier Type: Low Profile Carrier Converter
Features: Advanced format 512n, Digitally Signed Firmware
Bundled with: HPE Low Profile Carrier Converter
Performance
Drive Transfer Rate: 1.2 GBps (external)
Seek Time: 2.72 ms (average) / 5.36 ms (max)
Track-to-Track Seek Time: 0.22 ms
Spindle Speed: 15000 RPM
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 3.5" LFF
Product Dimensions
Width: 4.20 inch
Depth: 6.20 inch
Height: 1.00 inch
Environmental Parameters
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Compatible Systems
- HPE ProLiant ML Series: ML110 Gen10 (3.5 inch), ML110 Gen10 Performance (3.5 inch), ML110 Gen10 Solution (3.5 inch), ML350 Gen10 (3.5 inch), ML350 Gen10 Base (3.5 inch), ML350 Gen10 Entry (3.5 inch), ML350 Gen10 Performance (3.5 inch), ML350 Gen10 Solution (3.5 inch), ML350 Gen10 Sub-Entry (3.5 inch), XL170r Gen9 (3.5 inch), XL190r Gen9 (3.5 inch), XL450 Gen10 (3.5 inch)
Not sure this drive fits your system? Send us your server or storage array model and the DatorPro team will confirm compatibility before you order.
