Product Information

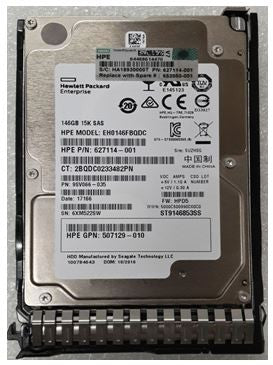

HPE EH0146FARWD-SC 146GB Enterprise Hard Drive for ProLiant Gen8 Gen9 Gen10 Servers. This 2.5 inch Small Form Factor (SFF) drive spins at 15,000 RPM, connects through a SAS 6Gbps interface, supports hot swap installation and comes in an HPE Smart Carrier.
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
This drive is aimed at performance focused server storage. Spinning at 15,000 RPM, it answers requests quickly and holds up well under the constant, mixed read and write activity you see in databases, virtualization hosts and business applications.
SAS (Serial Attached SCSI) is the standard interface for server and storage drives. It supports hot swapping and full duplex data transfer, which is why it remains the common choice for systems that need to stay online.
The HPE Smart Carrier has status lights that show drive activity and health at a glance, along with a warning indicator that helps prevent pulling a drive that is still in use.
Part Numbers
Brand: HPE
MPN: EH0146FARWD-SC
Option Part Number: 652605-B21
Spare Part Number: 653950-001
Model Number: EH0146FARWD
Assembly Number: 518216-002
HPE GPN: 507129-010
Drive Details
Device Type: Hard Drive - Hot-Swap
Capacity: 146 GB
Form Factor: 2.5 inch SFF
Interface: SAS 6Gb/s
Bytes per Sector: 512
Plug Type: Hot Pluggable
Workload Type: Enterprise
Bundled with: HPE SmartDrive Carrier
Speed and Throughput
Drive Transfer Rate: 600 MBps (external)
Seek Time: 3 ms (average) / 7 ms (max)
Track-to-Track Seek Time: 0.4 ms
Spindle Speed: 15000 RPM
Connection
Interfaces: 1 x SAS 6Gb/s
Compatible Bay: 2.5" SFF
Size
Width: 3.00 inch
Depth: 4.70 inch
Height: 0.60 inch
Weight: 25.57 oz
Other
Compliant Standards: WEEE
Operating Environment
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Compatible Systems
HPE ProLiant BL Series: BL460c Gen8 (2.5 inch), BL660c Gen8 Performance (2.5 inch), BL660c Gen9 (2.5 inch)
HPE ProLiant DL Series: DL180 Gen9 (2.5 inch), DL180 Gen9 Base (2.5 inch), DL180 Gen9 Entry (2.5 inch), DL180 Gen9 Storage (2.5 inch), DL20 Gen9 (2.5 inch), DL20 Gen9 Entry (2.5 inch), DL20 Gen9 Performance (2.5 inch), DL320e Gen8 (2.5 inch), DL320e Gen8 Base (2.5 inch), DL320e Gen8 Entry (2.5 inch), DL320e Gen8 Performance (2.5 inch), DL320e Gen8 v2 (2.5 inch), DL320e Gen8 v2 Base (2.5 inch), DL320e Gen8 v2 Performance (2.5 inch), DL360 Gen9 CMS (2.5 inch), DL360e Gen8 Special Server (2.5 inch), DL360p Gen8 (2.5 inch), DL360p Gen8 CMS (2.5 inch), DL360p Gen8 Performance (2.5 inch), DL360p Gen8 Special Server (2.5 inch), DL380 Gen9 (2.5 inch), DL380 Gen9 Base (2.5 inch), DL380 Gen9 Entry (2.5 inch), DL380 Gen9 Performance (2.5 inch), DL380p Gen8 Performance (2.5 inch), DL385p Gen8 Entry (2.5 inch), DL385p Gen8 Storage Centric (2.5 inch), DL560 Gen9 (2.5 inch), DL560 Gen9 Base (2.5 inch), DL560 Gen9 Entry (2.5 inch), DL560 Gen9 Performance (2.5 inch), DL580 Gen9 (2.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch)
HPE ProLiant ML Series: ML110 Gen9 (2.5 inch), ML110 Gen9 Base (2.5 inch), ML110 Gen9 Entry (2.5 inch), ML30 Gen9 (2.5 inch), ML30 Gen9 Base (2.5 inch), ML30 Gen9 Performance (2.5 inch), ML310e Gen8 (2.5 inch), ML310e Gen8 Base (2.5 inch), ML310e Gen8 Entry (2.5 inch), ML310e Gen8 Performance (2.5 inch), ML310e Gen8 v2 (2.5 inch), ML310e Gen8 v2 Base (2.5 inch), ML310e Gen8 v2 Entry (2.5 inch), ML310e Gen8 v2 Performance (2.5 inch), ML350 Gen9 (2.5 inch), ML350 Gen9 Base (2.5 inch), ML350 Gen9 Entry (2.5 inch), ML350 Gen9 Performance (2.5 inch), ML350e Gen8 v2 (2.5 inch), ML350p Gen8 (2.5 inch), ML350p Gen8 Special Server (2.5 inch)
HPE ProLiant SL Series: SL250s Gen8 Left Tray (2.5 inch), SL250s Gen8 Right Tray (2.5 inch), SL270s Gen8 1U Left Half Width Tray (2.5 inch), SL270s Gen8 1U Right Half Width Tray (2.5 inch), SL270s Gen8 Base 4U Left Half Width Tray (2.5 inch), SL270s Gen8 Base 4U Right Half Width Tray (2.5 inch), SL270s Gen8 SE 4U Left Tray (2.5 inch), SL270s Gen8 SE 4U Right Tray (2.5 inch), WS460c Gen9 Graphics (2.5 inch), WS460c Gen9 Graphics Expansion (2.5 inch)
HPE ProLiant XL Series: XL170r Gen9 (2.5 inch), XL190r Gen9 (2.5 inch)
Not sure this drive fits your system? Send us your server or storage model and we will confirm compatibility before you order.
