Product Information

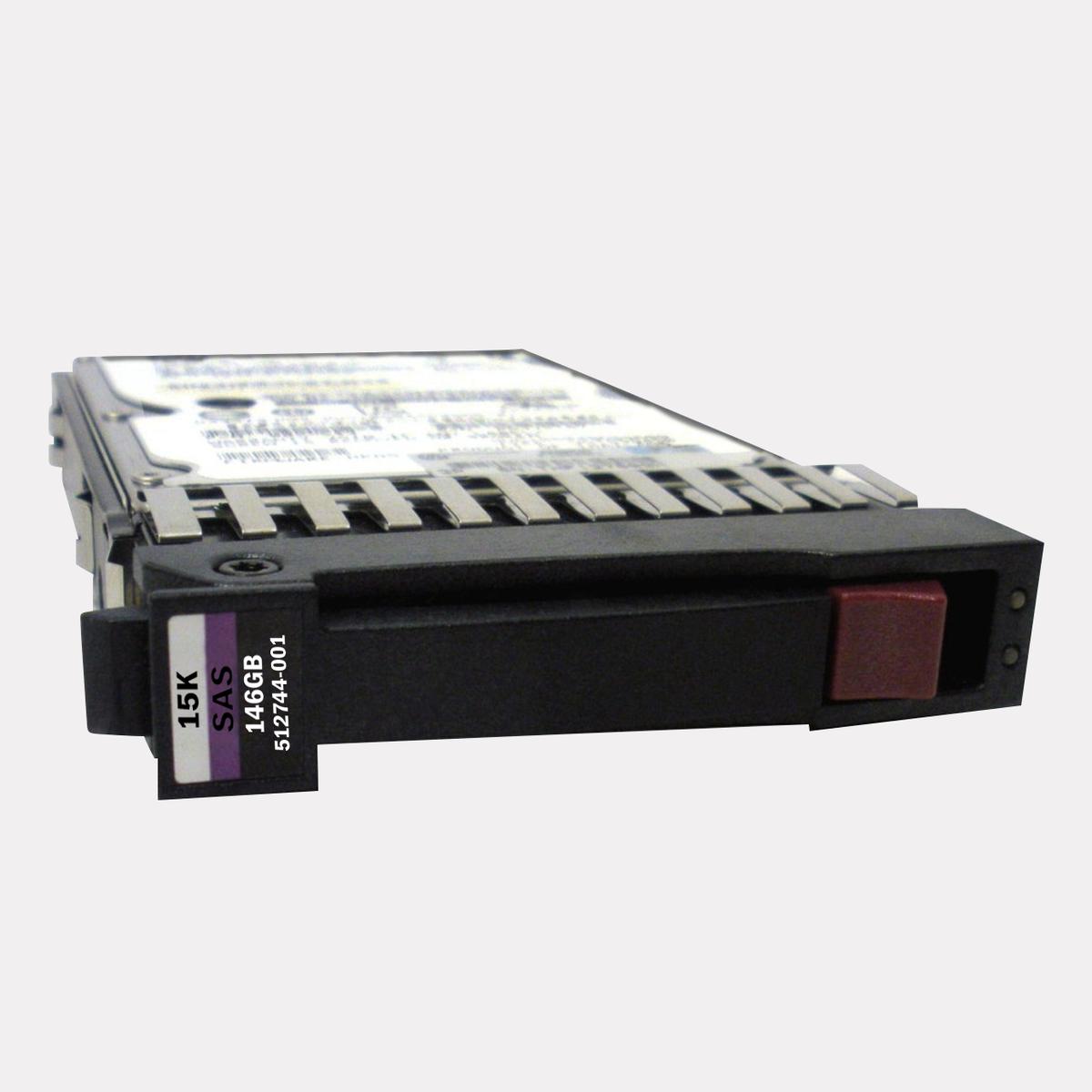

HPE EH0146FBQDC 146GB Enterprise Hard Drive for ProLiant Generation1 to Generation7 Servers. This 2.5 inch Small Form Factor (SFF) drive spins at 15,000 RPM, connects through a dual port SAS 6Gbps interface and supports hot swap installation.
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
This drive is aimed at performance focused server storage. Spinning at 15,000 RPM, it answers requests quickly and holds up well under the constant, mixed read and write activity you see in databases, virtualization hosts and business applications.
SAS (Serial Attached SCSI) is the standard interface for server and storage drives. It supports hot swapping and full duplex data transfer, which is why it remains the common choice for systems that need to stay online.
Part Numbers
Brand: HPE
MPN: EH0146FBQDC
Option Part Number: 512547-B21
Spare Part Number: 512744-001
Model Number: EH0146FBQDC
Assembly Number: 627114-001
HPE GPN: 507129-010
Drive Details
Device Type: Hard Drive - Hot-Swap
HDD Capacity: 146 GB
Form Factor: 2.5 inch SFF
Interface: SAS-6Gbps
Spindle Speed: 15000 RPM
External Data Transfer Rate: 600 MBps
Drive Technology (Fill): Air
Carrier Type: Standard Carrier
Workload: Enterprise
Bundled with: HPE Standard Carrier
Speed and Throughput
Seek Time: 2.58 ms (average) / 4.85 ms (max)
Track-to-Track Seek Time: 0.14 ms
Spindle Speed: 15000 RPM
Connection
Interfaces: 1 x SAS 6Gb/s
Compatible Bay: 2.5" SFF
Size
Width: 3.10 inch
Depth: 5.40 inch
Height: 0.60 inch
Operating Environment
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Compatible Systems
HPE ProLiant BL Series: BL20p (Gen4) BL45p (Gen2) BL460c (Gen6 Gen7) BL465c (Gen1 Gen5 Gen6 Gen7) BL480c (BL620c Gen7) BL680c (Gen5 Gen6 Gen7) BL685c (Gen6 Gen7) WS460c (Gen6 Gen7)
HPE ProLiant DL Series: DL1000 DL120 (Gen6 Gen7) DL160 (Gen6 Gen7) DL160se (Gen6 Gen7) DL165 (Gen6 Gen7) DL170e (Gen6 Gen7) DL170h (Gen6 Gen7) DL180 (Gen6 Gen7) DL320 (Gen6 Gen7) DL360 (Gen4p Gen5 Gen6 Gen7) DL365 (Gen1 Gen5 Gen6 Gen7) DL370 (Gen6 Gen7) DL380 (Gen4 Gen5 Gen6 Gen7) DL385 (Gen1 Gen2 Gen3 Gen4 Gen5/Gen5p Gen6 Gen7) DL580 (Gen3 Gen4 Gen5 Gen6 Gen7) DL585 (Gen2 Gen3 Gen4 Gen6 Gen7) DL785 (Gen6)
HPE ProLiant ML Series: ML 110 (Gen7) ML350 (Gen5 Gen6 Gen7) ML370 (Gen5 Gen6 Gen7) ML570 (Gen3 Gen4 Gen5)
HPE ProLiant SL Series: SL390s (Gen6 Gen7)
HPE Storage arrays: D2700 MSA 1040 MSA70 P2000 (Gen3) X1500 (Gen2) X16000 (Gen2) X1800 (Gen2) X3400 (Gen2) X3800 (Gen2) 2000i (Gen2) 2000sa (Gen2)
Not sure this drive fits your system? Send us your server or storage model and we will confirm compatibility before you order.
