Product Information

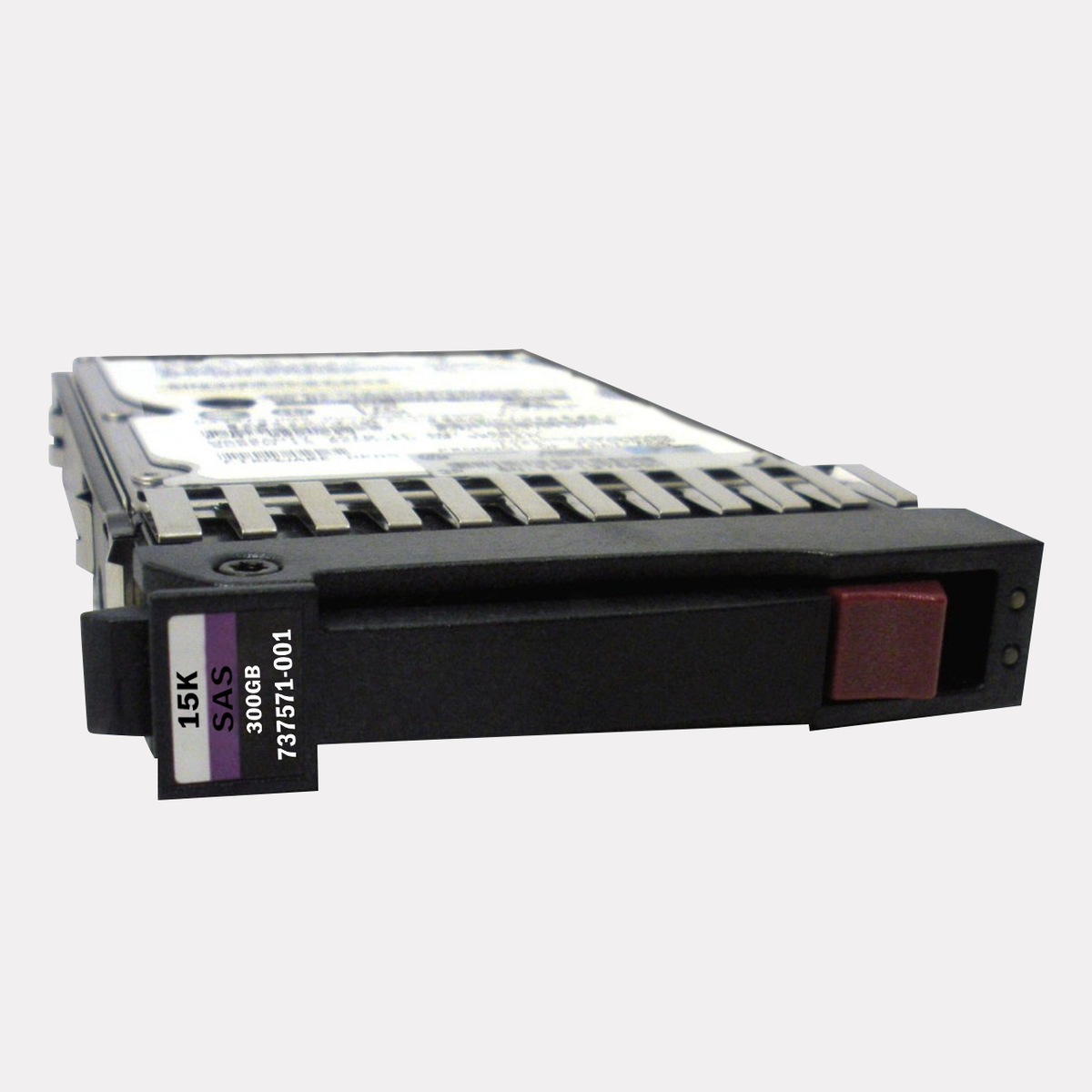

The HPE EH0300JDYTH is a 300GB enterprise hard drive that spins at 15,000 RPM. It uses the 3.5 inch large form factor (LFF) with a 12Gb SAS interface.
Key Features
- 300GB capacity at 15K RPM
- SAS 12Gb/s interface
- 3.5 inch LFF
- Enterprise class
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Specifications
Brand: HPE
MPN: EH0300JDYTH
Option Part Number: 737390-B21
Spare Part Number: 737571-001
Model Number: EH0300JDYTH
Assembly Number: 748385-001
General
Device Type: Hard Drive - Hot-Swap
Bytes per Sector: 512
Capacity: 300 GB
Form Factor: 3.5 inch LFF
Interface: SAS 12Gbps
Workload Type: Enterprise
Carrier Type: Standard Carrier
Features: Dual Port
Plug Type: Hot Plug
Filled With: Air
Bundled With: HPE Standard Carrier
Performance
Drive Transfer Rate: 1.2 GBps (external)
Average Seek Time: 2.9 ms
Max Seek Time: 5.9 ms
Spindle Speed: 15000 RPM
Track-to-Track Seek Time: 0.15 ms
Expansion & Connectivity
Compatible Bay: 3.5" LFF
Interfaces: 1 x SAS 12 Gb/s
Product Dimensions and Weight
Depth: 7.40 inch
Height: 1.00 inch
Width: 4.40 inch
Weight: 1.00 lbs
Environmental Parameters
Max Operating Temperature: 95 °F
Min Operating Temperature: 50 °F
Compatible Systems
- HPE ProLiant DL Series: DL1000 DL120 (Gen5 Gen6 Gen7) DL140 (Gen3) DL145 (Gen3) DL160 (Gen5 Gen5p Gen6 Gen7) DL160se (Gen6 Gen7) DL165 (Gen5 Gen5p Gen6 Gen7) DL170e (Gen6) DL170h (Gen6) DL2x170h (Gen6) DL4x170h (Gen6) DL180 (Gen5 Gen6 Gen7) DL185 (Gen5) DL320 (Gen3 Gen4 Gen5 Gen5p Gen6 Gen7) DL320sDL370 (Gen6 Gen7) DL380 (Gen4 Gen5 Gen6 Gen7) DL385 (Gen5 Gen5p Gen6 Gen7) DL580 (Gen4 Gen5 Gen6 Gen7) DL585 (Gen2 Gen5 Gen6 Gen7) DL785 (Gen5 Gen6)
- HPE ProLiant ML Series: ML110 (Gen7) ML150 (Gen5 Gen6 Gen7) ML310 (Gen5p) ML330 (Gen6) ML350 (Gen5 Gen6 Gen7) ML370 (Gen5 Gen6 Gen7)
- HPE Storage Arrays: D2600 MDS600 MSA60 60 Modular Array StoreAll 9730
- HPE StoreEasy: 1430 1440 1530 1540 1630 1640 1830 1840 5530 X1400 X1500 X1600 X1800 X3400 X3800
- HPE StoreVirtual: P4000 P4100 P4300 (Gen2) P4500 (Gen2)
Not sure this drive fits your system? Send us your server or storage array model and the DatorPro team will confirm compatibility before you order.
