Product Information

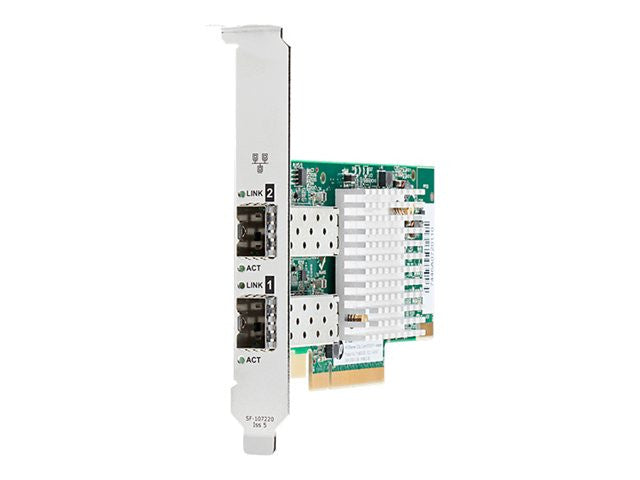

The HPE 728530-001 is the Ethernet 10Gb 2-port 571SFP+, a low profile plug-in adapter on PCIe 2.0 x8 for HPE ProLiant Gen8 rack servers (select models).
Key Features
- Runs plain Ethernet, or Ethernet plus iSCSI or FCoE
- Fewer adapters and cables, which lowers running costs
- Stateless TCP/IP, TOE and Fibre Channel work is offloaded to the card's hardware
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 728530-001
Option Part Number: 728987-B21
Spare Part Number: 733385-001
Assembly Number: 728530-001
General
Product Type: Network Adapter - Dual Port
Form Factor: Plug-in Card - Low Profile
Adapter Details
Bus Type: PCI Express 2.0 x8
PCI Spec Revision: PCIe 2.0
Data Link Protocol: 10 Gige
Transfer Rate: 10 Gbps
Connections
Network Ports: 10 Gigabit SFP+ X 2
Ports: 2 X 10gb Ethernet - SFP+
Software and Compatibility
Supported Operating Systems: Red Hat Enterprise Linux 6.2, Suse Linux Enterprise Server 10 Sp4, Suse Linux Enterprise Server 11 Sp2, Red Hat Enterprise Linux 5.8, Red Hat Enterprise Linux 5.9, Red Hat Enterprise Linux 6.3
Power and Environment
Compliance: IEEE 802.3, IEEE 802.1q, IEEE 802.3x, IEEE 802.3ad (lacp), IEEE 802.3ae, IEEE 802.3p, IEEE 802.1ab (lldp)
Compatible Systems
- HPE ProLiant BL Series: BL460c Gen9 Server Blade, BL660c Gen9 Server Blade, BL460c Gen10 Server Blade
- HPE ProLiant WS Series: WS460c Gen9 Server Blade (on Gen10, thermal reporting is handled by the server design, not the adapter)
- HPE Blade Switch: 6120XG Blade Switch, 6120G/XG Blade Switch, 6125G/XG Ethernet Blade Switch, 6125XLG Ethernet Blade Switch, 6127XLG Ethernet Blade Switch and GbE2c Layer 2/3 Ethernet Blade Switch
- HPE Ethernet BL-c Switch: 1:10Gb Ethernet BL-c Switch
- Cisco Catalyst Blade Switch for HPE: 3120G Blade Switch, 3120X Blade Switch and 3020 Blade Switch
- Cisco Fabric Extender for HPE: B22HP
- HPE Pass Thru Module: 10GbE Pass-Thru Module and 1GbE Pass Thru Module
Note: 10GbE converged connectivity works with the HPE 6120XG and 6125XG series switches, the Cisco B22 Fabric Extender and HPE 10GbE Pass-Thru modules. Every other supported interconnect or switch runs at 1GbE per connection for Ethernet only traffic.
Note: Wake-on-LAN works only on Port 1, from system power state S5.
