Product Information

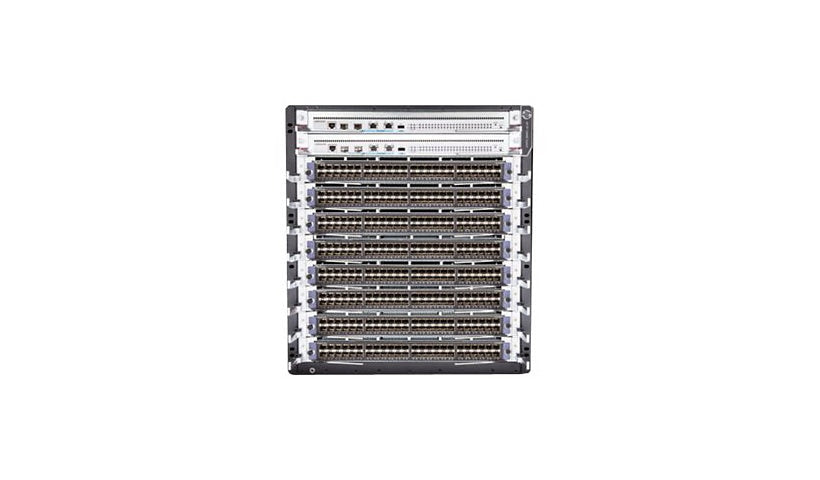

The HPE FlexFabric 12908E (JH255A) is a Layer 3 modular data center core chassis with up to 23 Tbps of capacity. This is the bare chassis with two fan trays: power supplies and modules are not installed.
Key Features
- 12908E modular core chassis
- Up to 23 Tbps switching capacity
- Layer 3, DCB support
- 2 fan trays included
- Power supplies and modules not installed
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE FlexFabric
Model: 12908E Switch Chassis
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: 100 Gigabit Ethernet
Manageable: Yes
Remote Management: HTTP, RMON, RMON 1, RMON 2, RMON 3, RMON 9, SNMP, SNMP 1, SNMP 2, SNMP 3, SSH, SSH-2, Telnet, TFTP
Routing Protocol: BGP, BGP for IPv6, BGP-4, BGP-4+, BGP+, Bidirectional Forwarding Detection (BFD), Bidirectional PIM, CIDR, ECMP, EGP, GRE, IGMP, IGMPv2, IGMPv3, IS-IS, MLD, MLDv2, MPLS, MSDP, OSPF, OSPFv2, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP, RIP-1, RIP-2, RIPng, Static IPv4 routing, Static IPv6 routing, VRRP
Authentication Method: CHAP, Extensible Authentication Protocol (EAP), PAP, RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Encryption: AES, IKE, MD5, TLS
Performance: Switching capacity: 23 Tbps, Throughput: 14.4 Bpps
Features: Access Control List (ACL) support, ARP support, Bidirectional Forwarding Detection (BFD), Class of Service (CoS), Data Center Bridging (DCB), Data Center Bridging Exchange (DCBX) support, Device Link Detection Protocol (DLDP) support, DHCP client, DHCP relay, DHCP snooping, Edge Virtual Bridging (EVB), Fan tray, FCoE forwarding, Flow control, IGMP snooping, Intelligent Resilient Framework Technology (IRF), IP source guard, IPSec Virtual Private Network (VPN), IPv4 support, IPv6 support, LACP support, Link Aggregation Control Protocol (LACP), Link Fault Signaling (LFS), LLDP support, Management Information Base (MIB), Multicast Border Gateway Protocol (MBGP), Multicast Source Discovery Protocol (MSDP), Multiple Spanning Tree Protocol (MSTP) support, NAT support, Network Quality Analyzer (NQA), NTP time synchronization, Per-VLAN Spanning Tree Plus (PVST+), Port Security, Quality of Service (QoS), RADIUS support, Rapid Spanning Tree Protocol (RSTP) support, SNMP support, Spanning Tree Protocol (STP) support, Tunneling, UDP/IP offloading, Unicast Reverse Path Forwarding (URPF), Virtual Route Redundancy Protocol (VRRP) support, VLAN support, VPN support
Connectivity
Expansion Slots: 2 (total) / 2 (free) x MPU, 6 (total) / 6 (free) x Switching Fabric Unit, 8 (total) / 8 (free) x expansion slot
Power
Device Type: Internal power supply (not installed)
Frequency: 50/60 hertz
Power Supplies Supported: 8
Memory and Processor
Processor Brand: MIPS
Processor Type: MIPS64
Processors Installed: 1
Clock Speed: 1.2 GHZ
RAM Installed: 8 GB
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 1 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 12
Supported Devices: 16
Installed Devices/Modules: 0
Dimensions and Weight
Height: 20.9 inch
Width: 17.3 inch
Depth: 33.7 inch
Weight: 103.62 lbs
Included Items
Included Accessories: 2 fan trays
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z
