Product Information

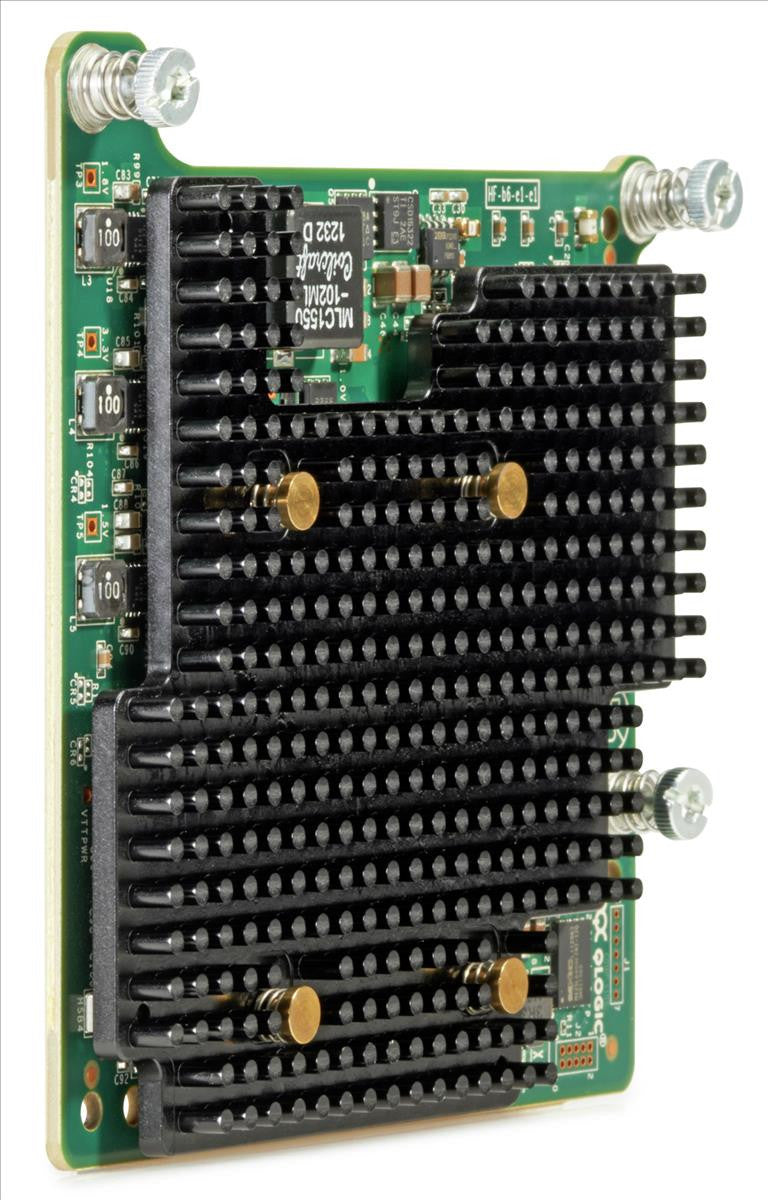

The HPE 700076-B21 is a FlexFabric dual port adapter with FCoE support for HPE ProLiant Gen8 and Gen9 servers, rated at 20Gbps over a PCIe 2.0 x8 interface.
Key Features
- QLogic BCM57840S controller
- Full duplex, TCP/IP and UDP/IP offload, QoS
- Jumbo frames, teaming, PXE, LSO, RSS and TSO
- SR-IOV, checksum offload and MSI-X
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 700076-B21
Option Part Number: 700076-B21
Spare Part Number: 701528-001
General
Product Type: Network adapter
Adapter Details
Bus Type: PCI Express 2.0 x8
PCI Spec Revision: PCIe 2.0
Connectivity: Wired
Data Link Protocol: FCoE, 20 Gigabit LAN
Transfer Rate: 20 Gbps
Network/Transport Protocol: TCP/IP, UDP/IP
Remote Management: SNMP
Features: Full duplex capability, TCP/IP offloading, Quality of Service (QoS), Jumbo Frames support, teaming support, PXE support, Large Send Offload (LSO), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), checksum offload support, Extended Message-Signaled Interrupts (MSI-X), UDP/IP offloading
Processor: 1 x BCM57840S - Qlogic
Connections
Network Ports: 20 Gigabit Ethernet x 2
Software and Compatibility
Supported Operating Systems: Microsoft Windows Server 2008 (32/64-bits) SP2, SuSE Linux Enterprise Server 11 SP2, Microsoft Windows Server 2012, Microsoft Windows Server 2008 R2 (32/64-bits), Red Hat Enterprise Linux 5.9, Citrix XenServer 6.1, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 6.4, VMware vSphere 5.5, Oracle Solaris x64 11, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, Oracle Solaris 10 update 10, Red Hat Enterprise Linux 5.10, VMware ESXi 5.0 update 3, VMware ESXi 5.1 update 2
Power and Environment
Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3p, IEEE 802.3ap, FCC Class A certified, UL, CISPR 22 Class A, BSMI CNS 13438 Class A, EN 60950, ICES-003, EN55024, FCC Part 15, WEEE, RoHS, VCCI V-3 Class A ITE, KN24, KN22 Class A, EN55022:2006 Class A
Power Draw (operating): 12 Watt
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 10 - 90% (non-condensing)
Compatible Systems
- HPE ProLiant BL Series: BL460c Gen8, BL465c Gen8, BL660c Gen8, BL660c Gen8 Entry, BL660c Gen8 Performance
- HPE ProLiant WS Series: WS460c Gen9 Graphics, WS460c Gen9 Graphics Expansion
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
