Product Information

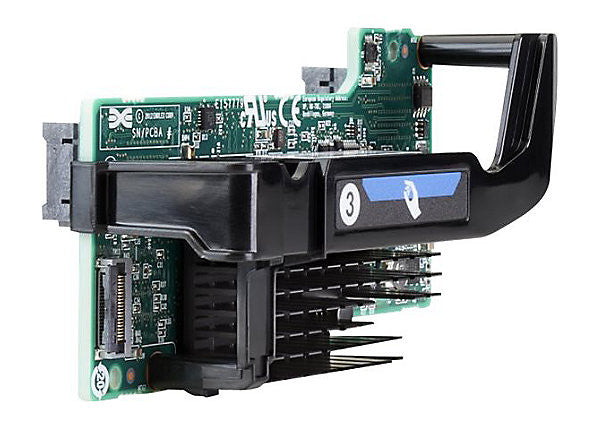

The HPE 700763-B21 is a FlexFabric dual port 20Gb converged Ethernet adapter for HPE ProLiant Gen9 servers, on a PCIe 3.0 x8 interface.
Key Features
- Emulex controller
- VLAN support, QoS tagging, full duplex and Wake on LAN
- Jumbo frames, PXE and UEFI boot
- LSO, TSO and TCP/IP checksum offload, plus MSI-X
- SR-IOV and RoCE (RDMA over Converged Ethernet)
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: 700763-B21
Option Part Number: 700763-B21
Spare Part Number: 701536-001
General
Product Type: Network adapter
Adapter Details
Bus Type: PCI Express 3.0 x8
Connectivity: Wired
Data Link Protocol: 20 Gigabit LAN
Transfer Rate: 20 Gbps
Network/Transport Protocol: TCP/IP
Remote Management: SNMP
Features: VLAN support, wake on LAN (WOL), full duplex mode, Jumbo Frames support, PXE support, Large Send Offload (LSO), UEFI support, Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), QoS tagging, Extended Message-Signaled Interrupts (MSI-X), TCP/IP checksum offload, RDMA over Converged Ethernet (RoCE)
Processor: 1 Emulex
Connections
Network Ports: 20 Gigabit Ethernet x 2
Expansion Slots: 1 x FlexibleLOM
Ports: 2 x 20Gb Ethernet
Software and Compatibility
Supported Operating Systems: Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2008 R2 SP1 (64-bits), Red Hat Enterprise Linux 6.5, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 6.6, Red Hat Enterprise Linux 7.1, SuSE Linux Enterprise Server 11 SP3 x64 Edition, SUSE Linux Enterprise Server 12 x64 Edition, VMware ESXi 5.1 update 3, VMware ESXi 5.5 update 2, Citrix XenServer 6.5
Power and Environment
Compliance: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.3ap, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg, FCC Class A certified, UL, VCCI, ICES-003, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, RoHS, BSMI CNS 13438, KN22, KN24, EN55022:2010, EN55024:2010, MSIP, UL 60950-1:2007
Power Draw (operating): 7.6 Watt
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 15 - 80% (non-condensing)
Compatible Systems
- HPE ProLiant BL Series: BL460c Gen9, BL460c Gen9 Base, BL460c Gen9 Entry, BL460c Gen9 Performance
- HPE ProLiant WS Series: WS460c Gen9 Graphics, WS460c Gen9 Graphics Expansion
