Product Information

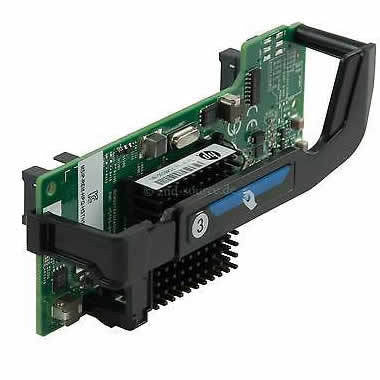

The HPE 701527-001 is the FlexFabric 20Gb 2-port 630FLB, a FlexibleLOM adapter for HPE ProLiant Gen8 and Gen9 blade servers. It doubles the bandwidth of a 10Gb adapter for virtualized and converged data centers.
Key Features
- QLogic BCM57840S controller
- Faster Ethernet, FCoE and iSCSI for better workload speed and scale
- One card takes the place of a 10Gb NIC plus an 8Gb FC HBA, which HPE says halves I/O hardware and cuts cost by 60%
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: 701527-001
Option Part Number: 700065-B21
Spare Part Number: 701527-001
General
Product Type: Network adapter
Adapter Details
Bus Type: PCI Express 2.0 x8
Connectivity: Wired
Data Link Protocol: 20 Gigabit LAN
Transfer Rate: 20 Gbps
Network/Transport Protocol: TCP/IP, UDP/IP
Remote Management: SNMP
Features: VLAN support, Accelerated iSCSI, Quality of Service (QoS), Jumbo Frames support, PXE support, Large Send Offload (LSO), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), Extended Message-Signaled Interrupts (MSI-X), TCP Offload Engine (TOE), HPE Virtual Connect FlexFabric technology, iSCSI boot, TCP/IP checksum offload, UDP/IP checksum offload
Processor: 1 x BCM57840S - Qlogic
Connections
Network Ports: 20 Gigabit Ethernet x 2
Expansion Slots: 1 x FlexibleLOM
Software and Compatibility
Supported Operating Systems: Microsoft Windows Server 2008 SP2, SuSE Linux Enterprise Server 11 SP2, Microsoft Windows Server 2012, Microsoft Windows Server 2008 R2 SP1 (32/64 bits), Red Hat Enterprise Linux 5.9, Citrix XenServer 6.1, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 6.4, VMware vSphere 5.5, Oracle Solaris x64 11, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, Oracle Solaris 10 update 10, Red Hat Enterprise Linux 5.10, VMware ESXi 5.0 update 3, VMware ESXi 5.1 update 2
Power and Environment
Compliance: IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3p, IEEE 802.1ab (LLDP), IEEE 802.3ap, IEEE 802.1Qau, FCC Class A certified, UL, BSMI, BSMI CNS 13438 Class A, ICES-003, EN55024, FCC Part 15, RoHS, VCCI V-3 Class A ITE, EN 61000-3-2:2006, KN24, EN 61000-3-2:2008, KN22 Class A, EN55022:2006 Class A
Power Draw (operating): 12 Watt
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 10 - 90% (non-condensing)
Compatible Systems
- HPE ProLiant BL Series: BL460c Gen9, BL460c Gen9 Base, BL460c Gen9 Entry, BL460c Gen9 Performance, BL465c Gen8, BL660c Gen8, BL660c Gen8 Entry, BL660c Gen8 Performance
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
